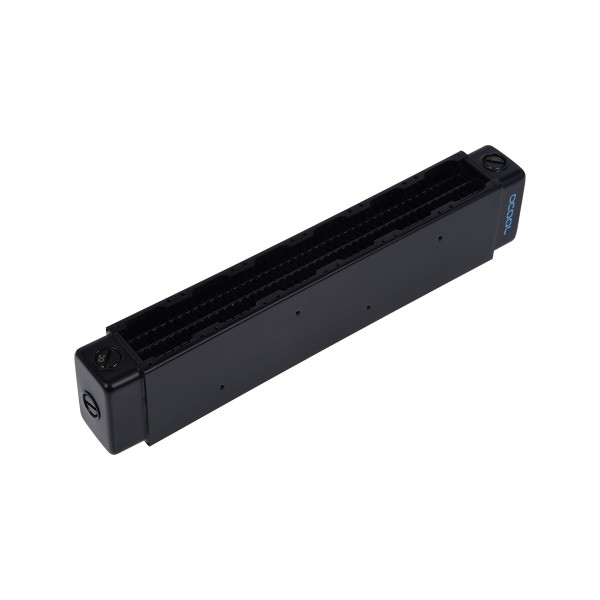

Alphacool NexXxoS UT60 Full Copper X-Flow 40mm Hexa Radiator (14292)

The Alphacool NexXxoS UT60 Full Copper X-Flow 40mm Hexa Radiator is a server radiator for six 40 mm fans in a row (6x40mm), 60 mm thick. It measures 286 x 40.5 x 60 mm and has six G1/4 connections, M3 fan threads and the water inlet and outlet on opposite sides.

Properties

Fans

6x 40 mm, M3 fan thread

Size (L x W x H)

286 x 40.5 x 60 mm

Thickness

60 mm (Alphacool's 49 - 69mm class)

Ports

6x G1/4

Material

Copper cooling channels and slats, steel housing

Fins per inch

10

Server radiator

Alphacool opens with a motto: "It's the best system because it's your system, strive for perfection!" The new NexXxoS UT60 X-Flow Server Radiators are meant to help you to get one step closer to that. Alphacool also expects them to increase the performance of your system. According to Alphacool, this radiator can discharge up to 420 W at an ambient temperature of 30 °C and fans with twelve thousand rpm.

X-Flow

Alphacool's title for this design is "find the easy route". It relies on the X-Flow for the new server radiators, for what it calls the best possible cooling of your system. The flow runs from one side of the radiator to the other, and on the way it directly uses all fins. Alphacool says the radiator immediately achieves that cooling with optimized water circulation.

Countersunk screw plugs

For the first time Alphacool has countersunk the screw plugs, which it describes as "anything but ordinary". This unique design, as Alphacool calls it, allows you to stay flexible with the positioning of the radiator and to mount it the way you need it. Thanks to the multiple inlets and outlets, it adds, you have more options to create something unique and, more importantly, efficient. The data sheet calls the countersunk screw plugs patented.

Solid copper

The radiator of the new NexXxoS series is also made of solid copper, ensuring, in Alphacool's words, that the radiators offer you the highest thermal conductivity for the best performance. Alphacool files this under "the best performance at the highest level" and tells buyers to rely on "the No. 1 in materials". Its technical data lists copper for the cooling channels and the slats, and steel for the housing.

Different sizes, same quality

The UT60 X-Flow is available in different sizes and thicknesses, and Alphacool promises the same quality in each. All radiators of this series are compatible with 2U server racks. Alphacool says that thanks to the special shape, installation is child's play, even with the larger radiators. It leaves you to decide for yourself which size is perfect for your system, and to always choose the best quality.

What the loop needs

The radiator has six G1/4 connections. Two of them are used, one as inlet and one as outlet, so it takes two G1/4 fittings. It holds six 40 mm fans on M3 fan threads. Mounting material is in the box.

Technical data

In the box

• 1x Alphacool NexXxoS UT60 Full Copper X-Flow 40mm Hexa Radiator
• Mounting Materials

Alphacool's data sheet is a PDF. Its 3D model of the radiator is an STP file, and the 3D viewer shows it from every side.
