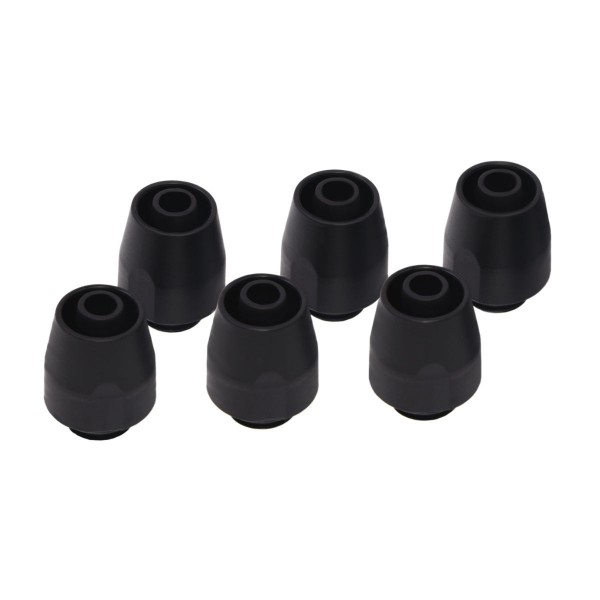

The Alphacool HF Thrust Sleeve TPV - Straight - Black - Six Pack is a set of six straight screw-on fittings with a G1/4 thread for 12.7/7.6 mm TPV hose. They belong to the Enterprise Solutions family of new fittings, being designed specifically for Alphacool TPV hoses.
Properties
- Thread
- G1/4, 5.5 mm thread length
- Tube size
- 12.7/7.6 mm TPV hose
- Angle
- Straight
- Size
- 28 mm length, 20.5 mm diameter
- Color
- Black
- Pieces in the pack
- 6
How it holds the hose
Thanks to a locking ring, the sleeves have a very high tensile strength. That ring, which consists of a metal ring and claws with hooks, grips in the hose. Alphacool says they are not only about safety, but also for longevity.
In a mixed loop
Alphacool's claim is that the sleeves are extremely durable. They can be easily used with copper and aluminum parts in the water cycle, because nylon does not react with other materials.
What a run needs
A hose run takes two sleeves, one at each end, so the pack covers three runs. Each one screws into a G1/4 port and takes 12.7/7.6 mm hose such as the AlphaTube TPV 12.7/7.6. More parts for this hose size are in our 12.7/7.6mm fittings section.
More technical data
| Material | Nylon |
In the box
- 1x Alphacool HF Thrust Sleeve TPV - Straight - Black - Six Pack
