Details

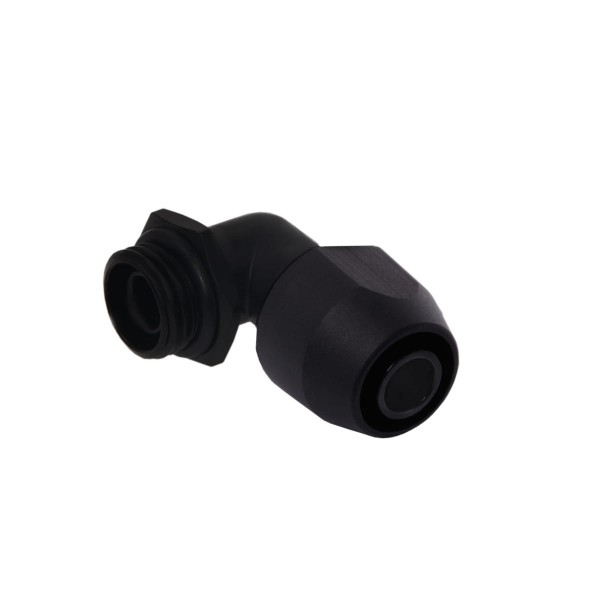

The Alphacool HF 12.7/7.6mm 90 Degree Screw-On Sleeve TPV Metal - Black is a 90 degree compression fitting with a G1/4 thread for 12.7/7.6 mm TPV hose, one fitting per pack. The screw-on nozzle rotates. Alphacool developed it especially for its own TPV hoses.
Properties
- Thread
- G1/4, 5.5 mm long
- Tube size
- 12.7 / 7.6 mm TPV hose
- Angle
- 90°, rotatable
- Material
- brass/aluminum
- Size (L x W x H)
- 35 x 27 x 18 mm
- Pieces in the pack
- 1
How it holds the hose
This is the new 90-degree fitting from the Enterprise Solutions series, and it uses a double O-ring system to prevent leaks. Alphacool gives a pressure test of 8 bar. The Enterprise Solutions family of new fittings is designed specifically for Alphacool TPV hoses. Thanks to a locking ring, which consists of a metal ring and claws with hooks in the hose, they have a very high tensile strength. Alphacool says they are not only about safety but also built for longevity.
Brass and aluminum
Being the Metal version, this fitting is made of brass and aluminum. It carries the name because of those materials.
What a run needs
Two fittings are used per hose run, one at each end, and each can be screwed into a G1/4 port of the water loop. Straight versions and other parts for this hose size are in our 12.7/7.6mm fittings section.
Alphacool's data sheet is a PDF. Its 3D model of the fitting is an STP file, and the 3D viewer shows it from every side.
