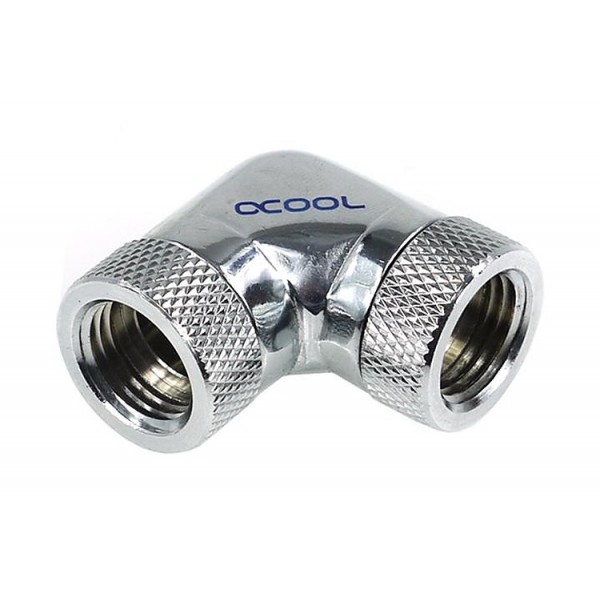

Alphacool G1/4 Revolvable Female to Female L-Connector - Chrome (17038)

The Alphacool G1/4 Revolvable Female to Female L-Connector - Chrome is a 90° angle adapter with two G1/4 inner threads and rotating joints, one fitting per pack. It can be used to get around obstacles in the computer, and the joints let the hose be turned in exactly the desired direction.

Properties

Thread

G1/4 inner thread on both sides, revolvable

Angle

90°

Color

Chrome

Material

Brass, chromated

Size

Length 40 mm, diameter 18 mm

Pieces in the pack

1

The HF fitting series

Alphacool says its fittings go new ways in looks, quality of manufacturing, colors and choice. By its account the inner diameter of these fittings truly deserves the "high flow" attribute. The first three colors are Chrome, Deep Black and Shiny Copper, which Alphacool says offer something for every taste. In its words the product matching series are designed to look elegant in every system, highlighting the individual design of the computer. It adds that the limits are endless when these fittings are used in combination with Alphacool tubing.

Finish and lettering

Alphacool describes a new process during chromatising in which the surface finish is completely connected with the brass body. It names the result as permanent intense colors, hence ensuring that peeling of the chrome layer is prevented. The Alphacool name in blue lettering on some of the fittings additionally underlines the individuality of these items, the maker says.

What a run needs

Each inner thread takes one G1/4 fitting from our fittings section, and Alphacool says the two threads cause no problems when choosing the connection.

Alphacool's Fitting Map is an interactive map of all its fittings, on its own site.

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

In the box

• 1x Alphacool L-Connector 90° - G1/4 Revolvable - 2x Inner Thread - Chrome

Alphacool's 3D model of this adapter is an STP file, and the 3D viewer shows it from every side.
