Details

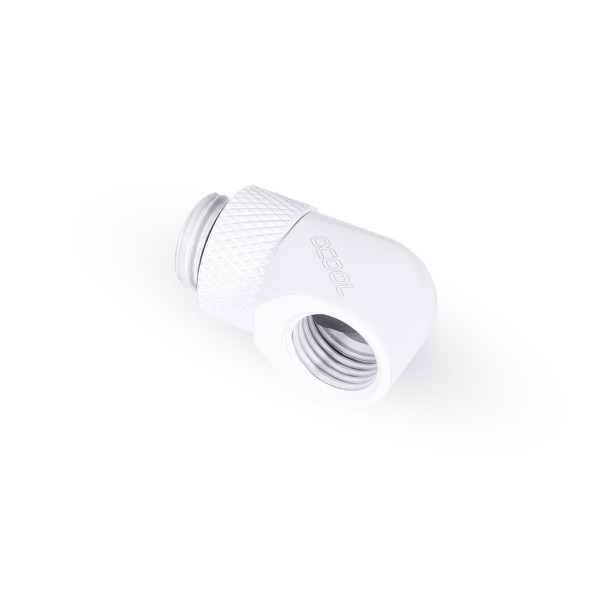

The Alphacool Eiszapfen G1/4 90° Rotary L-Connector - White is a 90° angled adapter fitting made of brass, one fitting per pack. It has a rotatable G1/4 external thread on one side and a G1/4 internal thread on the other. Alphacool lists it as the Eiszapfen L-connector rotatable G1/4 outer thread to G1/4 inner thread.
Properties
- Thread
- G1/4 external, rotatable, to G1/4 internal
- Angle
- 90°
- Color
- White
- Material
- Brass
- Pieces in the pack
- 1
Compatibility
An angled connection like this one is mostly used where space is limited and a special solution is required. For maximum flexibility the adapter can be rotated on its external thread.
Design
Alphacool says its Eiszapfen is the high-end version of the already proven connectors. In its words the connector meets all the requirements placed on one with its high-flow, shape, processing and color. Three color variants are available, the white one here included: brilliant chrome, deep matte black and what Alphacool calls a decent matte white, and it says they fit perfectly into any system. Thanks to special processes the coatings are firmly bonded to the substrate. Alphacool says this ensures a high longevity of the colors and prevents the coating from flaking off. The connector now also has the Alphacool logo, which Alphacool says makes it unique in addition to its special shape.
What the loop needs
The external thread screws into a G1/4 port, and the internal thread takes any G1/4 fitting from our fittings section. The connector holds no tube on its own. Alphacool publishes a datasheet PDF for this connector and an interactive Fitting Map of all its fittings that you can find on its site.
Technical details
| Material | Brass |
| Color | White |
| Length | 34 mm |
| Diameter | 18 mm |
| Thread | G1/4 |
| Thread length | 5 mm |
| Weight | 38 g |
In the box
- 1 x G1/4 Rotary L-Connector Fitting
Alphacool's 3D model of this fitting is an STP file to download, and the 3D viewer shows it from every side.
