Details

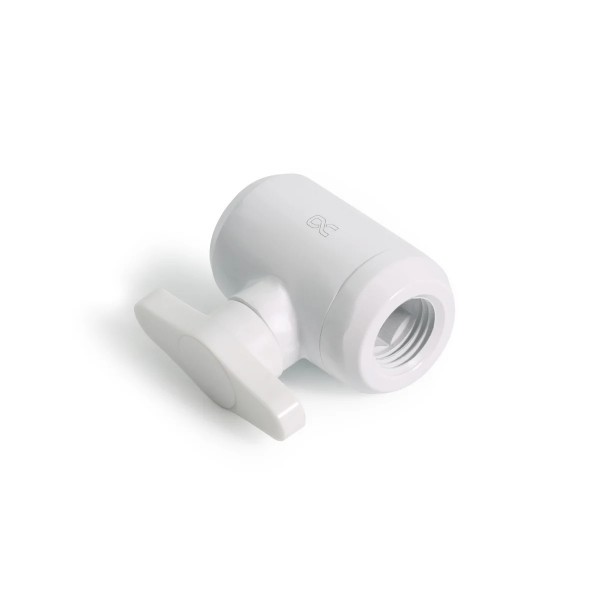

The Alphacool Eiszapfen 2-Way Ball Valve G1/4 - White is a shut-off valve with a G1/4 thread on both sides and an inner diameter of 10 mm, in white, one valve per pack. Each side takes any 1/4" connection with a maximum thread length of 6 mm.
Properties
- Thread
- G1/4 on both sides, maximum thread length 6 mm
- Dimensions (L x W x H)
- 35.4 x 36 x 22.7 mm
- Inner diameter
- 10 mm
- Color
- White
- Pieces in the pack
- 1
High flow
Ball valves have always been a flow brake, making life difficult for each pump. Then, Alphacool says, it has developed a ball valve that represents no obstacle to the water, with a diameter of 10 mm inside. Alphacool calls its Eiszapfen series future-oriented and says it is characterized by excellent workmanship and high flow.
How it closes
The ball inside closes absolutely tight, thus preventing further escape of liquid.
What the loop needs
The valve has no tube connection of its own. On both sides all 1/4" connections can be screwed in, so it takes two parts from our fittings section, each with a thread no longer than the 6 mm above.
Notes
- Please note: use the valve only in conjunction with clear, transparent water cooling fluids. Alphacool warns that the particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
In the box
- 1x Alphacool Eiszapfen 2-Way Ball Valve G1/4 - White
The technical data is also in Alphacool's datasheet (EN).
