Details

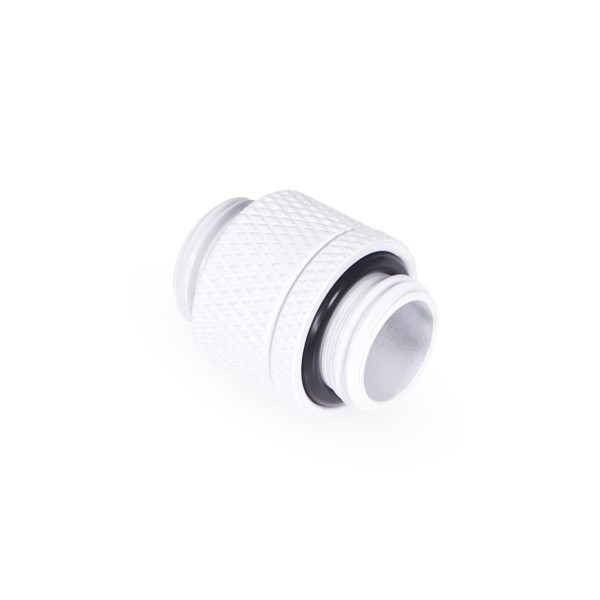

The Alphacool Eiszapfen G1/4 Male To Male Rotatable Adapter Fitting - White is a double nipple: a water cooling adapter with a G1/4 external screw thread on both sides, one fitting per pack. It allows, for example, two sockets with 1/4" internal threads to be connected.
Properties
- Thread
- G1/4 external (male) on both sides, 5 mm thread length
- Size
- 22 mm length, 18 mm diameter
- Material
- Brass
- Color
- White
- Weight
- 17 g
- Pieces in the pack
- 1
Product Information
Alphacool's Eiszapfen is, in its own words, the high-end version of the already proven connectors. Alphacool says it meets all the requirements placed on a connector with its high-flow, shape, processing and color.
Compatibility
Both ends screw into a G1/4 port, so the adapter joins two female ports directly and needs no tube. Alphacool has a data sheet PDF for download under the name double nipple rotatable G1/4 outer thread to G1/4 outer thread. Other lengths and makes are in our male to male extension fittings section. Alphacool also has an interactive Fitting Map of all Alphacool fittings that you can find on its site.
Design
Three color variants are available in the series: brilliant chrome, deep matte black and a decent matte white, the one sold here. Alphacool says they fit perfectly into any system. Thanks to special processes, the coatings are firmly bonded to the substrate. According to Alphacool this ensures a high longevity of the colors and prevents the coating from flaking off.
Technical details
| Material | Brass |
| Color | White |
| Length | 22 mm |
| Diameter | 18 mm |
| Thread | G1/4 |
| Thread length | 5 mm |
| Weight | 17 g |
In the box
- 1 x G1/4" Male To Male Rotatable Adapter Fitting
Alphacool's 3D model of this adapter is an STP file, and the 3D viewer shows it from every side.
