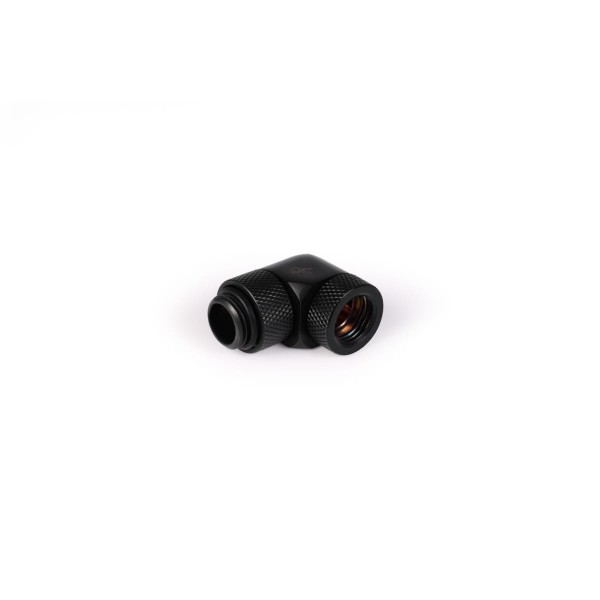

Alphacool 90° Revolvable Male to Female Angled Adaptor - Deep Black (17057)

The Alphacool 90° Revolvable Male to Female Angled Adaptor - Deep Black is a 90° angled adapter from a G1/4 outer thread to a G1/4 inner thread, one adapter per pack. It is rotatable, and Alphacool lists it as the HF angle adapter 90° rotatable G1/4 AG to G1/4 IG.

Properties

Thread

G1/4 outer thread to G1/4 inner thread, thread length 5 mm

Angle

90°, revolvable

Material

Brass, chromated

Color

Deep Black

Connection inner diameter

9.7 mm

Pieces in the pack

1

What it does

The angle adapter is used to connect a connection of your choice with a 1/4 inch thread via a 90 degree bend. Because the bend turns, the fitting on it can point wherever the hose has to go.

The fitting series

Alphacool says its fittings go new ways in looks, quality of manufacturing, colors and choice: in shape, processing and variety they break new ground. It calls the inner diameter outstanding and says it truly deserves the "high flow" attribute. The first three colors are Chrome, Deep Black and Shiny Copper, which Alphacool says offer something for every taste. The product matching series are designed to look elegant in every system, highlighting the individual design of the computer. In Alphacool's words the limits are endless with these parts in combination with Alphacool tubing.

Surface finish

Alphacool uses a new process during chromatizing. The surface finish is completely connected with the brass body, hence ensuring permanent intense colors and preventing peeling of the chrome layer. The Alphacool name in blue lettering on some of the fittings additionally underlines the individuality of these items.

What the loop needs

The outer thread screws into a G1/4 port, and the inner thread takes one G1/4 fitting. The adapter has no tube connection of its own, so pick that fitting from our fittings section to match your tube size. The same adapter is on the shelf in Chrome.

Technical data

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

In the box

• 1x Alphacool Angled Adaptor 90° Revolvable G1/4 Outer Thread to G1/4 Inner Thread - Deep Black

Alphacool's 3D model of this adapter is an STP file, and the 3D viewer shows it from every side.
