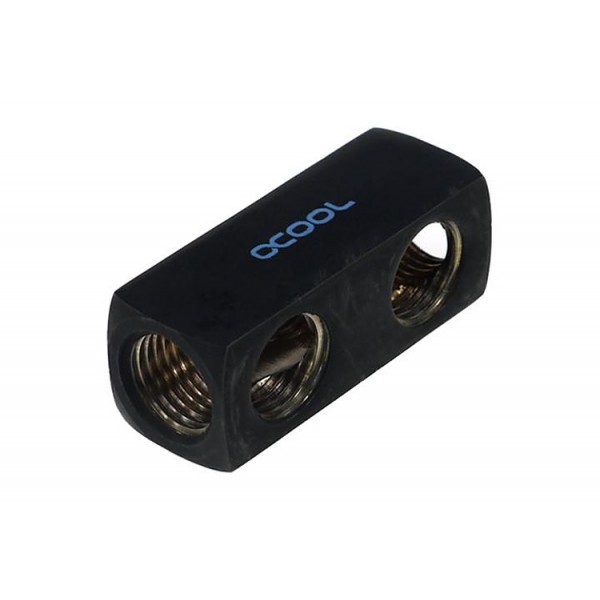

Alphacool G1/4 5-Way Connection Terminal - Deep Black (17027)

The Alphacool G1/4 5-Way Connection Terminal - Deep Black is a 5-way manifold fitting with five G1/4 inner threads, one terminal per pack. Alphacool lists it as the HF connection terminal 5-way G1/4 IG in Deep Black, and also calls it a connection distributor.

Properties

Thread

G1/4 inner thread

Ports

5 inputs and outputs

Material

brass

Color

Deep Black (matte black)

Size (L x W x H)

45 x 17 x 17 mm

Pieces in the pack

1

What it does

Alphacool describes the connection terminal as a slightly different kind of distributor and names its advantages: hardly any restrictions in the thread length and no flow resistance. It can also be glued anywhere. The good thing, in its words, is that there are even 5 inputs and outputs.

The HF fitting series

Alphacool says its fittings go new ways in looks, quality of manufacturing, colors and choice. It calls the inner diameter the absolute innovation, one that truly deserves the "high flow" attribute on these fittings. Chrome, Deep Black and Shiny Copper are the first three colors, and Alphacool says they offer something for every taste. The product matching series are designed to look elegant in every system while highlighting the individual design of the computer. In Alphacool's words, the limits are endless in combination with Alphacool tubing.

The finish comes out of a new process during chromating, in which the surface finish is completely connected with the brass body. Alphacool says the bond keeps the chrome layer from peeling or flaking, hence ensuring permanent intense colors. On some of the fittings the Alphacool name in blue lettering additionally underlines the individuality of these items.

What the loop needs

Every port takes a part with a G1/4 outer thread, such as the fitting of your choice. A port left unused has to be closed with a G1/4 plug, and no plugs come with the terminal.

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

In the box

• 1x Alphacool Connection Terminal 5-way G1/4'' Inner Thread - Deep Black

Alphacool's 3D model of this terminal is an STP file, and the 3D viewer shows it from every side.
