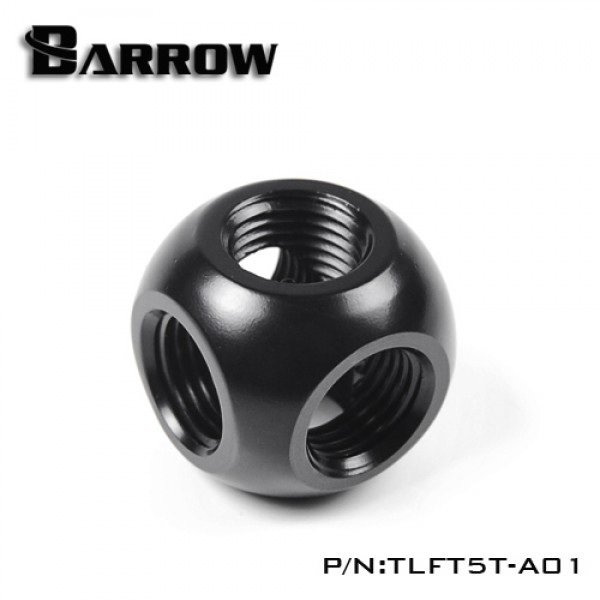

Barrow G1/4" Thread 5-Way Block Splitter Fitting - Black (TLFT5T-A01)

The Barrow TLFT5T-A01 is a compact 24 mm cube splitter with five G1/4" female ports, each on its own face of the cube. Barrow makes it for dividing one waterway into several or combining several into one. It is machined from H59 brass and finished in black.

Properties

Type

5-way cube splitter

Ports

5 x G1/4" female

Size

24 x 24 mm

Material

H59 brass, electroplated

Color

Black

Pieces in the pack

1

Five ports in one small block

Four ports sit in one plane, one on each side of the cube, and the fifth points up from the top. Only the bottom of the cube is closed. Use the splitter to divide one line into several, to join several lines into one, or as a central return point in a loop. With a plug in a spare port it also makes a neat fill or drain point.

Tight corners

Because the ports point in different directions, the block can turn a line through 90° and branch it at the same time. Barrow calls it a metallic cube tee; at 24 mm across it keeps tube runs short and tidy inside the case.

Brass with a double-protected finish

Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.

Standard G1/4" ports

All ports are standard G1/4" female threads, so the splitter takes fittings, plugs, extenders and adapters from Barrow and from other makers.

Technical data

Notes

• Barrow makes this splitter in black, white, shiny silver and gold. This listing is the black version.
• Fittings and plugs are not included; every port needs its own G1/4" fitting or plug.
• Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.

In the box

• 1x Barrow G1/4" Thread 5-Way Block Splitter Fitting - Black
