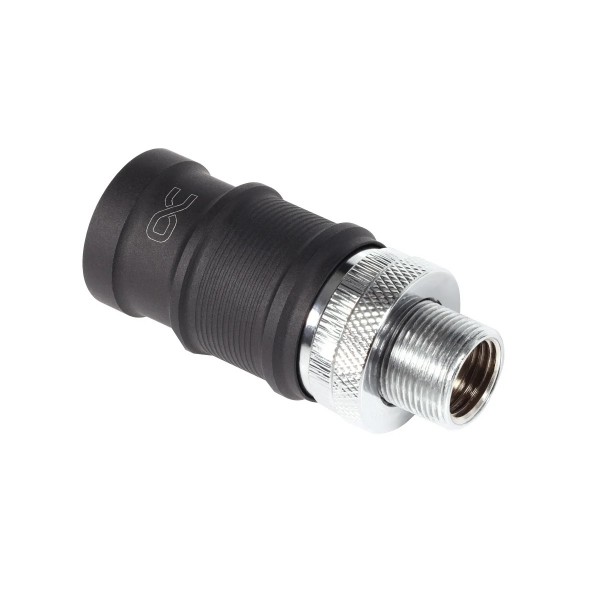

Alphacool ES Quick Release BLH1A PushIn Female IT with Bulkhead Fitting (13881)

The Alphacool ES Quick Release BLH1A PushIn Female IT with Bulkhead Fitting is the female half of a quick-release connector with one G1/4 inner thread (IT) on a bulkhead fitting, one fitting per pack. The ES connector is optimized for use in server and workstation systems.

Properties

Thread

1x G1/4 IT

Size (L x D)

62 x 28 mm

Material

Nickel-plated brass, plastic

Color

Chrome, black

Pieces in the pack

1

Maximum flow rate

Other quick couplings can negatively affect the flow of water, Alphacool says. This quick coupling has therefore been fundamentally redesigned so that the water flow is hardly disrupted, and particular emphasis was placed on minimal processing tolerances. Alphacool says the connector is characterized by precise manufacturing quality, excellent water flow and a secure click mechanism for sealing. Its data sheet adds a high-quality finish.

Quick and easy

Alphacool's ES quick connectors simplify the assembly of server and workstation systems: thanks to the convenient handling, complex systems can be connected quickly and easily. The outer ring is pulled back to open the quick-release fastener. Its seal closes immediately and prevents coolant from escaping. To lock the quick-release fasteners, simply push them into each other until a clicking noise confirms secure locking.

Function of the bulkhead fitting

The bulkhead fitting makes it possible to feed a tube through a hole, for example in the casing. It sits in the housing, securely attached using a lock nut. Standard G1/4 tube connections can then be connected.

What a run needs

This is one half of a quick-release fastener. The male half with the same mounting is the BLH1A PushIn Male IT with Bulkhead Fitting. The inner thread takes a fitting with a G1/4 outer thread, such as the compression fittings in our fittings section.

Technical data

Notes

• Note: to avoid damaging the O-ring, do not open or close the quick-release fastener when it is dry.
• Alphacool's note on application: use the connector only with clear, transparent water cooling fluids. The particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses.

In the box

• 1x Alphacool ES Quick Release BLH1A PushIn Female IT with Bulkhead Fitting

Alphacool's data sheet has the technical data and the packaging size. Its 3D model of this connector is an STP file, and the 3D viewer shows it from every side.
