Alphacool ES Pro 3U - 3 x 120 XT / XPX Pro 1U / Reservoir 2U - DDC310 (11848)

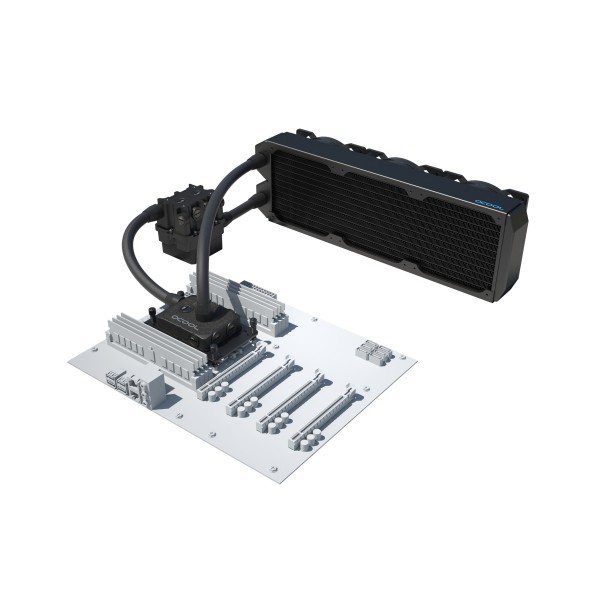

The Alphacool ES Pro 3U - 3 x 120 XT / XPX Pro 1U / Reservoir 2U - DDC310 is a prefilled water cooling kit for 3U server racks and workstations with one processor. It combines one Eisblock XPX Pro 1U CPU cooler, a full copper radiator for three 120 mm fans and a 2U reservoir that carries the DDC310 pump. Every kit is made to order, with the tubing length cut for your server by our Mod Team. On a dual socket board, the 3 x 120 XT set with two XPX Pro 1U is this kit with a second block.

Properties

CPU cooler

1 x Eisblock XPX Pro 1U

Radiator

NexXxoS XT45 Full Copper 360mm, 3 x 120 mm

Reservoir

ES Reservoir 2U - DDC, integrated pump top

Pump

DDC310

Intel sockets

2011, 2011-3, 2066, 3647, 4189, 1700

AMD sockets

TR4, TR5, TRX40, sWRX8, SP3, SP6, AM4, AM5

Made to order

Let us help you keep your server rack cool. Server racks differ in size and in the positioning of individual components, so all kits are individually adjusted for tubing length. Our Mod Team starts with the Enterprise Solution Sets from Alphacool and can put together a server cooling kit that is specific to your setup. Since the tubing is cut for one machine, contact our support team at ModMyMods.com ([email protected]) to provide your tubing length, any special requests, and further information about your system. We'll do the work for you: get a kit, and we'll make it fit!

Notice: lead times are dependent on current product inventory. Please be aware that if a specific product in this kit is not available, it could take 30 days or more to complete your order. Our support team will keep you updated with the status as stock becomes available. Feel free to reach out to us at the same address for order updates, product availability, or specific build inquiries: we are here to help.

Cooling capacity

This setup can dissipate up to 1400 W. Alphacool gives that figure for an ambient temperature of 30 °C and a fan speed of 4000 rpm.

CPU cooler

One Eisblock XPX Pro 1U water block sits on the processor. Alphacool lists the set for the Intel sockets 2011, 2011-3, 2066, 3647, 4189 and 1700 and for AMD TR4, TR5, TRX40, sWRX8, SP3, SP6, AM4 and AM5.

Radiator

The radiator is the NexXxoS XT45 Full Copper 360mm, which takes three 120 mm fans. Alphacool relies on full copper radiators for these sets and says they offer almost twice the thermal capacity of aluminum radiators. As a result, by its account, a significantly better cooling performance is achieved, which counts due to the extreme packing density in server racks and workstations. The next radiator thickness in this size is the 3 x 120 UT set.

Reservoir

The reservoir of this set is the ES Reservoir 2U - DDC. It includes an integrated pump top and belongs to a range that is specifically adapted to the respective height unit (1U, 2U, 3U, 4U) of the server racks. In addition, all reservoirs in that range offer a variety of connection options, so the placement in the server can vary and be adapted according to your needs.

Hoses and Connectors

The kit is plumbed with TPV tubing in place of the usual PVC hoses. Alphacool says TPV withstands higher heat than basic PVC tubing, resists buckling long term and is much more kink resistant, which makes kink protection springs largely unnecessary. The connections include special locking collars for the tubing, and Alphacool credits that locking ring with their high-tensile strength. Compared to standard water cooling components, it calls them far safer, so you can feel secure and safe knowing all is secured from the start.

Pumps

A DDC310 drives this set. That pump and the DC-LT 3600 industrial pump have been on the market for years, and their longevity is why we have chosen them for these kits.

Prefilled

Like all Enterprise Solution Sets, the kit is always delivered prefilled. It does not have to be assembled or filled by you: you only have to place the system in your server rack.

In the box

• CPU Cooler: Eisblock XPX Pro 1U
• Reservoir: Eisstation 2U - DDC
• Radiator: NexXxoS XT45 Full Copper 360mm
• Pump: DDC310
