Alphacool ES Pro 3U - 2 x 120 XT / XPX Pro 1U / Reservoir 2U - DDC310 (11844)

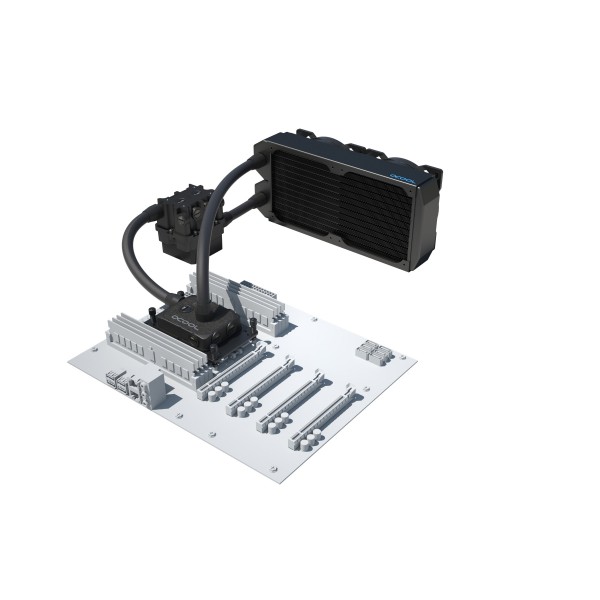

The Alphacool ES Pro 3U - 2 x 120 XT / XPX Pro 1U / Reservoir 2U - DDC310 is a prefilled water cooling kit for 3U server racks and workstations. It cools one CPU and holds one Eisblock XPX Pro 1U CPU water block, a 240 mm radiator for two 120 mm fans and the ES Reservoir 2U with its DDC310 pump. Alphacool lists the set for Intel 2011, 2011-3, 2066, 3647, 4189 and 1700, and for AMD TR4, TR5, TRX40, sWRX8, SP3, SP6, AM4 and AM5. A dual socket board takes the same kit with two blocks.

Properties

Rack height

3U

CPU blocks

1 x Eisblock XPX Pro 1U

Radiator

NexXxoS XT45 Full Copper 240mm, 2 x 120 mm

Reservoir

ES Reservoir 2U - DDC310, integrated pump top

Pump

DDC310

Coolant

Delivered prefilled

Made to order

Let us help you keep your server rack cool. Racks differ in size and in the positioning of individual components, and since no two are alike, all kits are individually adjusted for tubing length. With the Enterprise Solution Sets from Alphacool as the base, our Mod Team can put together a server cooling kit that is specific to your setup. Contact our support team at ModMyMods.com ([email protected]) to provide your tubing length, any special requests and further information about your system. We'll do the work for you: get a kit, and we'll make it fit!

Notice: all kits are made to order, so lead times are dependent on current product inventory. Please be aware that a kit could take 30 days or more to complete if a specific product in this kit is not available. Our support team will keep you updated with the status of your order as it becomes available. For order updates, product availability or specific build inquiries, feel free to reach out to us at the same address. We are here to help.

Cooling capacity

By Alphacool's figure, this setup can dissipate up to 1050 W. That applies at an ambient temperature of 30 °C and a fan speed of 4000 rpm. The radiator takes two 120 mm fans.

Radiator

The radiator is the NexXxoS XT45 Full Copper 240mm, the 2 x 120 XT of the kit name. Alphacool calls the radiator the core of any water cooling system and relies on full copper radiators for these sets. It says they offer almost twice the thermal capacity of aluminum radiators. As a result, by its account, a significantly better cooling performance is achieved, which counts due to the extreme packing density in server racks and workstations. The same kit is also built with the ST radiator or the UT radiator.

Reservoir

The reservoir of this kit is the ES Reservoir 2U - DDC310. It includes an integrated pump top. Like every reservoir of the range it is specifically adapted to the respective height unit (1U, 2U, 3U, 4U) of the server racks, and this one is the 2U version. In addition, all reservoirs offer a variety of connection options. The placement in the server can vary as a result and be adapted according to your needs.

Hoses and Connectors

Alphacool dispenses with the usual PVC hoses and uses TPV tubing. The tubing withstands higher heat than basic PVC tubing and resists buckling long term, so kink protection springs are largely unnecessary, Alphacool says. The connections include special locking collars for the TPV tubing, a locking ring that gives them high-tensile strength. Compared to standard water cooling components, Alphacool calls them far safer, and you can feel secure and safe knowing all is secured from the start.

Pumps

The pump of this kit is the DDC310. It and the DC-LT 3600 industrial pump have been on the market for years, and their longevity is why we have chosen them for these kits.

Prefilled

Like all Enterprise Solution Sets, this kit is always delivered prefilled. The set does not have to be assembled or filled: you only have to place the system in your server rack.

In the box

• CPU Cooler: Eisblock XPX Pro 1U
• Reservoir: Eisstation 2U DDC
• Radiator: NexXxoS XT45 Full Copper 240mm
• Pump: DDC310
