Details

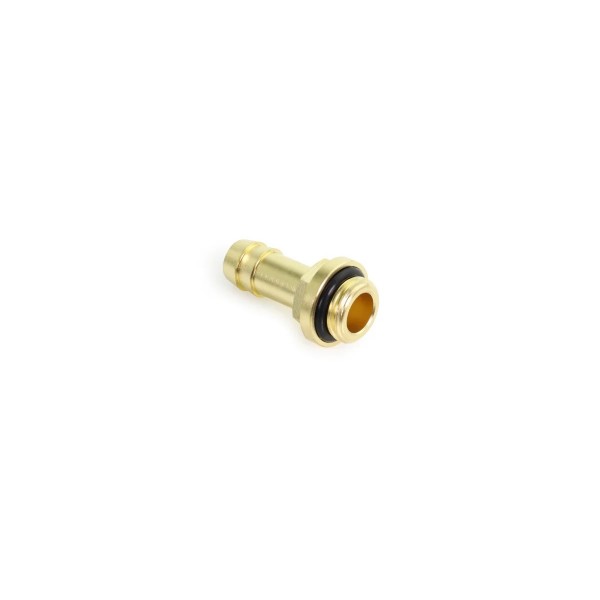

This Alphacool ES fitting is a straight barb fitting (31.30 mm x 17.50 mm) with a G1/4 outer thread for 12.7/7.6 mm tubing, one fitting per pack. It is part of Alphacool's professional ES series for water cooling systems in servers, workstations and industrial applications.
Properties
- Thread
- G1/4 outer thread
- Tube size
- 12.7/7.6 mm
- Angle
- Straight
- Material
- Solid brass (CuZn39Pb3)
- Color
- Brass, raw
- Pieces in the pack
- 1
Solid brass barb
The barbed fitting is precisely machined and the construction is solid brass. With both, Alphacool says, this connector ensures a secure and leak-proof connection for 12.7/7.6mm tubing. Its internal diameter is optimized for minimal flow resistance, supporting effective coolant circulation even where system configurations are complex.
Barb instead of compression
Hose barb fittings offer a compact, straightforward alternative to compression fittings. By saving space and highlighting more of the tubing, they are especially useful in tight installations or specialized setups. Despite their minimal form factor, Alphacool says they provide a secure hose grip and high flow capacity.
ES Series
The ES Series is developed for professionals, and Alphacool says it sets new standards in design, functionality and reliability. In its words, each component in the ES line is engineered to professional-grade reliability and performance. Whether in a high-performance workstation or an industrial cooling setup, it says these fittings deliver consistent performance and robust build quality.
What a run needs
A tube run takes two fittings, one at each end. The G1/4 outer thread screws into a G1/4 port and is tightened with an open-end wrench with a 13 mm width across flats. For increased safety and optimal tube retention, Alphacool recommends using the ES wire tensioning clamp (Art. No. 10282) in combination with this fitting. The clamp provides a more secure hold on the tube, especially important under higher pressure or temperature fluctuations. Other parts for this tube size are in our 12.7/7.6mm fittings section.
Technical data
| Type | fitting for low flow rates |
| Dimensions | 31.30 mm x 17.50 mm |
| Nominal diameter | 10.20 mm |
| Connection type | barbed fitting for tube |
| Material | brass (CuZn39Pb3) |
| Seal material | EPDM Shore A 70 |
| Working pressure | 2 bar |
| Burst pressure | 8 bar |
| Working temperature (in degrees Celsius) | -20 to +100 |
| Recommended liquids | water, deionized water, glycol water, propanediol water etc. |
| Thread type | G1/4, 6 mm outer thread |
| Threaded fastening | Open-end wrench width across flats 13 mm |
| Weight | 12 g |
| Color | brass, raw |
Notes
- Use the fitting only with clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.
In the box
- 1x Alphacool ES G1/4 Barbed Fitting for 12.7/7.6mm
Alphacool's data sheet is a PDF. Its 3D model of the fitting is an STP file, and the 3D viewer shows it from every side.
