Details

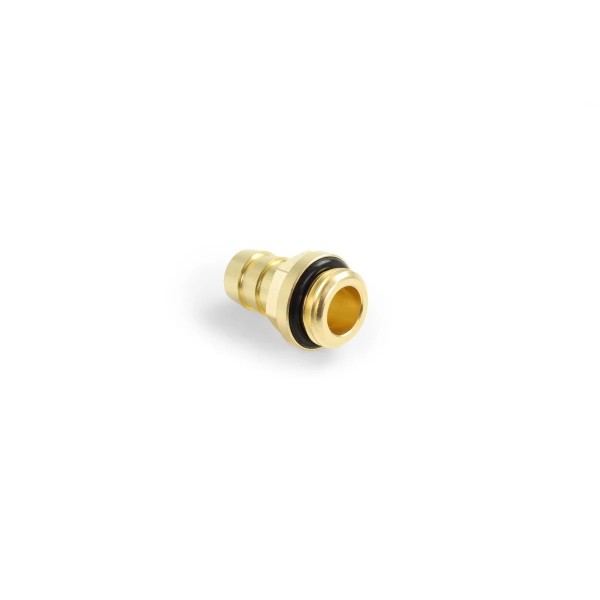

With its precisely machined barbed fitting and solid brass construction, this connector ensures a secure and leak-proof connection for 12.7/7.6mm tubing. The internal diameter is optimized for minimal flow resistance, supporting effective coolant circulation even in complex system configurations.
Hose barb fittings offer a compact and straightforward alternative to compression fittings, highlighting more of the tubing and saving space — especially useful in tight installations or specialized setups. Despite their minimal form factor, they provide secure hose grip and high flow capacity.
ES Series – developed for professionals
Each component in Alphacool’s ES line is engineered for professional-grade reliability and performance. Whether in a high-performance workstation or industrial cooling setup, these fittings deliver consistent performance and robust build quality.
| Technical data | |
| Type: | fitting for low flow rates |
| Dimensions: | 23,00 mm x 15,91 mm |
| Nominal diameter: | 10,20 mm |
| Connection type: | barbed fitting for tube |
| Material: | brass (CuZn39Pb3) |
| Seal material: | EPDM Shore A 70 |
| Working pressure: | 2bar |
| Burst pressure: | 8bar |
| Working temperature (in degrees Celcius): | -20 ~ +100 |
| Recommended liquids: | water, deionized water, glycol water, propanediol water etc. |
| Thread type: | G1/4” 6 mm outer thread |
| Threaded fastening: | Open-end wrench width across flats 13 mm |
| Weight: | 12g |
| Color: | brass, raw |
Additional Information
| Manufacturer | Alphacool |
|---|---|
| Fitting Type | Barb Fitting |
| Tubing Dimensions | 12.7/7.6mm |
| Fitting Thread | G1/4 Male |
| Color | Yellow Brass |
| Included | 1x Alphacool ES G1/4 Barbed Fitting (short) for 12.7/7.6mm |
| Material | Brass |
