Details

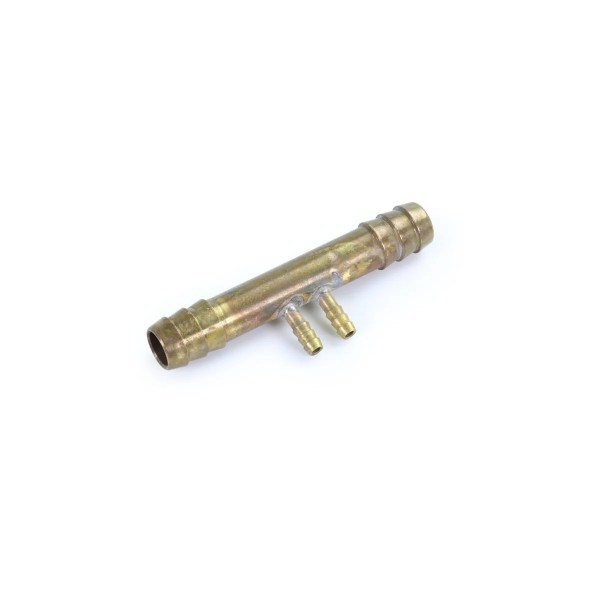

The Alphacool ES 2xMCX Distributor for 12.7/7.6mm with Barbed Connection Brass is a brass manifold with two barbed fittings for 12.7/7.6 mm tubing and two MCX connections, one piece per pack. Alphacool lists it as the ES 2xMCX manifold with barbed fitting, a distributor with tube connection for low flow rates.
Properties
- Tube size
- 12.7 mm outer, 7.6 mm inner diameter
- Connections
- 2x barbed 12.7/7.6mm, 2x MCX
- Material
- Brass (CuZn39Pb3)
- Color
- Brass, raw
- Size
- 60.50 mm x 19.70 mm
- Pieces in the pack
- 1
What it does
Equipped with inlet and outlet, the part enables the direct integration of MCX components into the cooling loop. Alphacool finds this particularly useful for temperature monitoring or flow control in critical systems. It calls the manifold a compact, robust solution, designed for professional use in industrial, server and workstation environments. In its words the part combines maximum reliability with a space-saving form factor. Whether used in a data center, an industrial cooling unit or a high-performance computing system, Alphacool says it delivers uncompromising reliability and functionality, precisely what professionals need.
Solid brass
The body is manufactured entirely from solid brass. Alphacool says the metal offers high resistance to pressure and corrosion, ensuring long-term durability even in 24/7 operations. The finish is natural brass, which the maker says emphasizes its technical and industrial character.
What a run needs
The integrated barbed fittings are designed for tubing with a 12.7 mm outer diameter and a 7.6 mm inner diameter. Alphacool says they offer a secure grip without the need for additional compression fittings, streamlining installation in confined environments. For increased safety and optimal tube retention, Alphacool recommends using the ES wire tensioning clamp (Art. No. 10282) in combination with this fitting. The clamp provides a more secure hold on the tube, especially important under higher pressure or temperature fluctuations. Other parts for this tube size are in our 12.7/7.6mm fittings section.
Technical data
| Type | Distributor with tube connection for low flow rates |
| Dimensions | 60.50 mm x 19.70 mm |
| Nominal diameter | 10.20 mm |
| Connection type | barbed fitting for tube (2x 12.7/7.6mm & 2x MCX) |
| Material | brass (CuZn39Pb3) |
| Working pressure | 2 bar |
| Burst pressure | 8 bar |
| Working temperature | -20 °C to +100 °C |
| Recommended liquids | water, deionized water, glycol water, propanediol water etc. |
| Weight | 15 g |
| Color | brass, raw |
Notes
- Use the manifold only with clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.
In the box
- 1x Alphacool ES 2xMCX manifold for 12.7/7.6mm with barbed fitting brass
Alphacool's data sheet is a PDF. Its 3D model of the manifold is an STP file, and the 3D viewer shows it from every side.
