Details

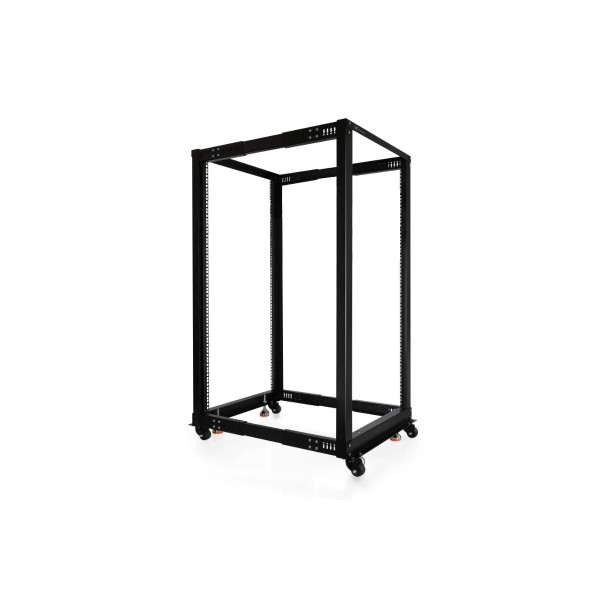

The Alphacool ES 19" Open Frame Serverrack 25U Adjustable Depth is an open frame 19" server rack with a height of 25U and a depth that can be set from 59 to 104 cm. It is made of steel, rolls on four wheels or rests on four height-adjustable feet, and carries up to 600 kg on the feet.
Properties
- Height
- 25U, 134 cm with wheels
- Mounting depth
- 59 cm to 104 cm
- Size (L x W x H)
- 110.5 x 60.8 x 127 cm
- Load capacity
- 600 kg on the adjustable feet, 300 kg on the wheels
- Standard
- EIA/ECA-310
- Material
- Steel, black
Mobile or stationary
Alphacool describes the rack as a mobile and modular solution for server systems. The frame is robust steel and offers a secure load capacity for the server units. Thanks to the included wheels, which Alphacool also calls casters, it can be moved effortlessly. For stationary installation, the box holds four height-adjustable feet. Fastening to a base plate is also possible.
Modular
From Alphacool this open frame server rack is available in different sizes: 12U, 15U, 18U and 25U. Regardless of the height, the depth can be modularly adjusted at any time, to 59-104cm (23 - 40.9 inches). The specified mounting holes help here: they enable easy installation of the individual rack units. The wheels are 360° rotating. We also stock the 15U and the 18U version.
Reliable stability
Alphacool says its Open Frame rack stands for durability. On its stable adjustable feet it offers a load capacity of up to 600 kg. The wheels, which Alphacool calls high-quality, are designed for a weight capacity of up to 300 kg. Alternatively, the rack can be securely attached to a base plate using the pre-drilled holes. In addition, it meets the EIA/ECA-310 standard. Alphacool says that ensures a universal design and compatibility with most network rack devices.
What the rack needs
The rack is put together from its sections, rails and brackets with the screws and nuts in the box. The manual shows each step, from setting the desired length to mounting the casters and the leveling feet. It takes 19" devices built to the EIA/ECA-310 standard, such as the chassis in our server racks and cases section.
Technical data
| Dimensions (L x W x H) | 110.5 x 60.8 x 127 cm |
| Product Height with Casters | 134 cm |
| Maximum Mounting Depth | 104 cm |
| Minimum Mounting Depth | 59 cm |
| Material | steel |
| Weight | 22.5 kg |
| Load capacity with adjustable feet | 600 kg |
| Load capacity with casters | 300 kg |
| Serverrack standard | EIA/ECA-310 |
| Color | black |
In the box
- 1x 19" Open Frame Serverrack 25U
- 4x Caster
- 16x M6*10 Hex Screw
- 16x M6*16 Hex Screw
- 32x M6 Flange Nut
- 32x M5 Screw
- 4x Leveling Feet
Alphacool's manual and data sheet are both PDFs.
