Details
Alphacool's Eiszapfen connector series is the high-end execution of these tried-and-true fittings!
Everything you want in a compression fitting is here: highflow, form, processing and colour. A refusal to compromise in development and production has made the Eiszapfen series into what it is. Fittings are available in brilliant chrome or a deep, matte black, which will fit excellently into any system.
A special procedure binds the outer coating firmly to the surface, improving the longevity of the intense colour and preventing any chipping or peeling of the coating. Every connector now has the Alphacool logo, which along with their distinctive shape makes them unmistakable!

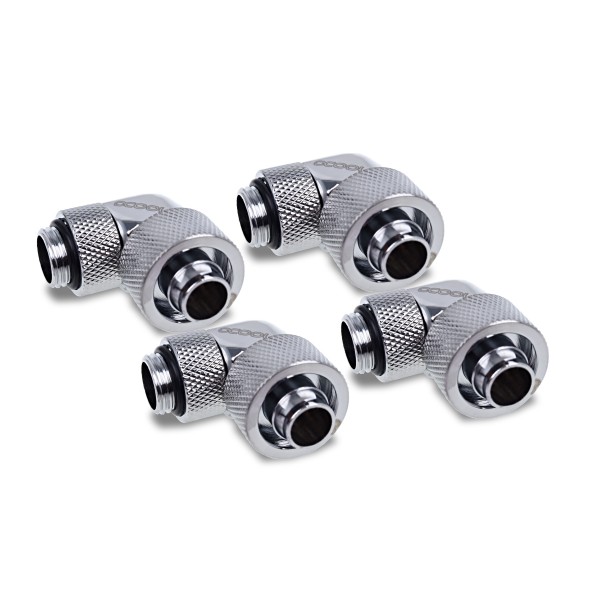

Model: 90° Socket 16/10mm
This connector has a G¼” thread on one side and is thereby compatible with 95% of components. The other side fits a 16/10mm hose. The middle of this connector is turned at a 90° angle in order to prevent complicated hose connections. The threaded side is rotatable for maximum flexibility.
| Technical data | |
| Material | brass |
| L x W x H | 35,5 x 22 x 34,5mm |
| Threads | G1/4" OT | 16/10mm (ID 3/8" OD 5/8") |
| Thread length | 5mm |
| Possible rotation | 360° |
| Version | 90° angled |
| Color | chrome |
Additional Information
| Manufacturer | Alphacool |
|---|---|
| Fitting Type | 90° Compression Fitting |
| Tubing Dimensions | 3/8" ID x 5/8" OD |
| Fitting Thread | G1/4 |
| Color | Chrome |
| Included | 1x Alphacool Eiszapfen 16/10mm Compression Fitting 90° Rotatable G1/4 - 4pcs Set Chrome |
| Material | No |
