Details

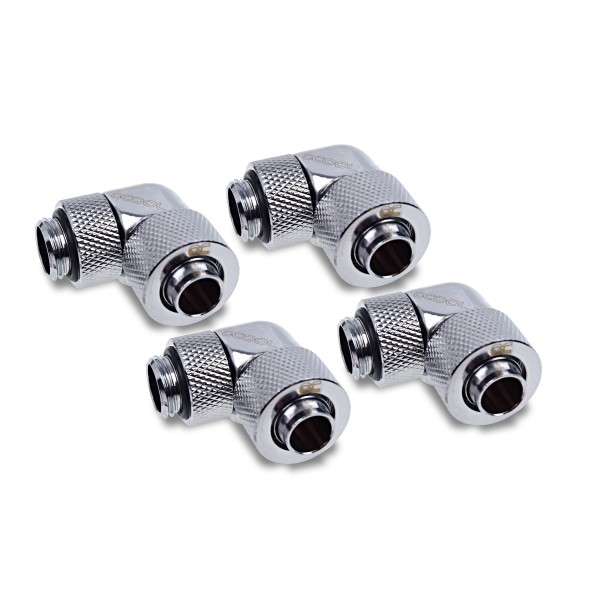

The Alphacool Eiszapfen 13/10mm Compression Fitting 90° Rotatable G1/4 - Chrome - Four Pack is a set of four 90° compression fittings with a G1/4 thread for 13/10 mm soft tube. That is tube with a 3/8" inner and 1/2" outer diameter. The threaded side is rotatable through 360°.
Properties
- Thread
- G1/4, rotatable 360°
- Tube size
- 13/10 mm (ID 3/8" OD 1/2")
- Angle
- 90°
- Color
- Chrome
- Material
- Brass
- Pieces in the pack
- 4
Model: 90° Socket 13/10mm
This connector has a G1/4 thread on one side, and Alphacool says it is thereby compatible with 95% of components. The other side fits a 13/10mm hose. The middle is turned at a 90° angle in order to prevent complicated hose connections, and the threaded side turns for maximum flexibility.
The Eiszapfen connector series
Alphacool calls its Eiszapfen connector series the high-end execution of these tried-and-true fittings. It says everything you want in a compression fitting is here: highflow, form, processing and color. In Alphacool's words, a refusal to compromise in development and production has made the series into what it is. Fittings are available in the brilliant chrome of this set or a deep, matte black, and Alphacool says both will fit excellently into any system.
A special procedure binds the outer coating firmly to the surface. Alphacool says this is improving the longevity of the intense color and preventing any chipping or peeling of the coating. Every connector now has the Alphacool logo, which along with their distinctive shape makes them unmistakable.
What a run needs
The thread screws into any G1/4 port, and the hose side takes soft tube from our 3/8" ID x 1/2" OD soft tubing section. A tube run takes two fittings, one at each end, so the four in this pack cover two runs.
Technical data
| Material | brass |
| L x W x H | 34.5 x 20 x 33 mm |
| Threads | G1/4 OT | 13/10mm (ID 3/8" OD 1/2") |
| Thread length | 5 mm |
| Possible rotation | 360° |
| Version | 90° angled |
| Color | chrome |
Notes
- Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.
In the box
- 1x Alphacool Eiszapfen 13/10mm Compression Fitting 90° Rotatable G1/4 - Four Pack - Chrome
Alphacool's data sheet is a PDF.
