Details

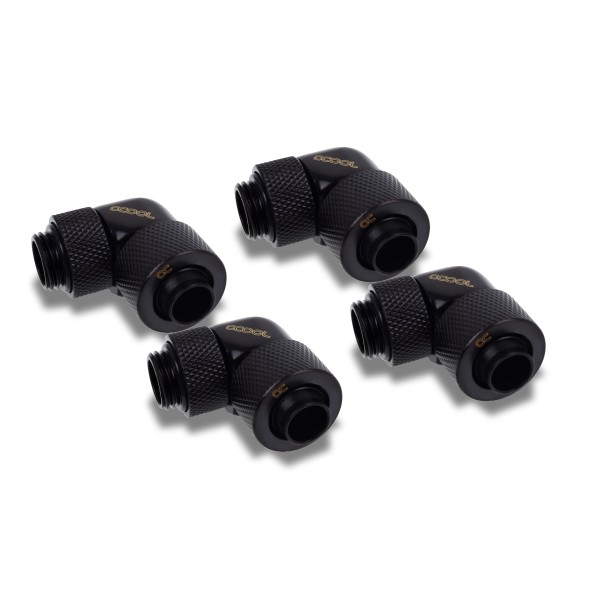

The Alphacool Eiszapfen 13/10mm Compression Fitting 90° Rotary G1/4 - Black - Four Pack is a set of four 90° compression fittings with a G1/4 thread for 13/10 mm soft tube. The threaded side is rotatable through 360°.
Properties
- Thread
- G1/4, rotatable 360°
- Tube size
- 13/10 mm (ID 3/8" OD 1/2")
- Angle
- 90°
- Color
- Black
- Pieces in the pack
- 4
Execution: 90° screw-on socket 13/10mm
This connection has a G1/4 thread on one side, and Alphacool says it is therefore compatible with 95% of all components. The other side is suitable for a 13/10mm hose. The fitting is angled at 90° in the middle to avoid complicated hose routes, and the threaded end rotates for maximum flexibility. The technical specifications give the connections as G1/4 M and 13/10mm.
The Eiszapfen connector series
Alphacool calls its Eiszapfen connector series the high-end execution of these tried-and-true fittings. It says everything you want in a compression fitting is here: highflow, form, processing and color. It says a refusal to compromise in development and production has made the series into what it is. Fittings are available in brilliant chrome or the deep, matte black of this set, and Alphacool says both will fit excellently into any system.
Alphacool says a special procedure binds the outer coating firmly to the surface, improving the longevity of the intense color and preventing any chipping or peeling of the coating. Every connector now has the Alphacool logo, which along with their distinctive shape makes them unmistakable.
What a run needs
The thread screws into any G1/4 port, and the hose side takes soft tube from our 3/8" ID x 1/2" OD soft tubing section. A tube run takes two fittings, one at each end.
Technical data
| Material | brass |
| L x W x H | 34.5 x 20 x 33 mm |
| Threads | G1/4 OT | 13/10mm (ID 3/8" OD 1/2") |
| Thread length | 5 mm |
| Possible rotation | 360° |
| Version | 90° angled |
| Color | black |
Notes
- Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage water cooling products, which can void the manufacturer's warranty.
In the box
- 1x Alphacool Eiszapfen 13/10mm Compression Fitting 90° Rotatable G1/4 - Four Pack - Black
Alphacool's data sheet is a PDF.
