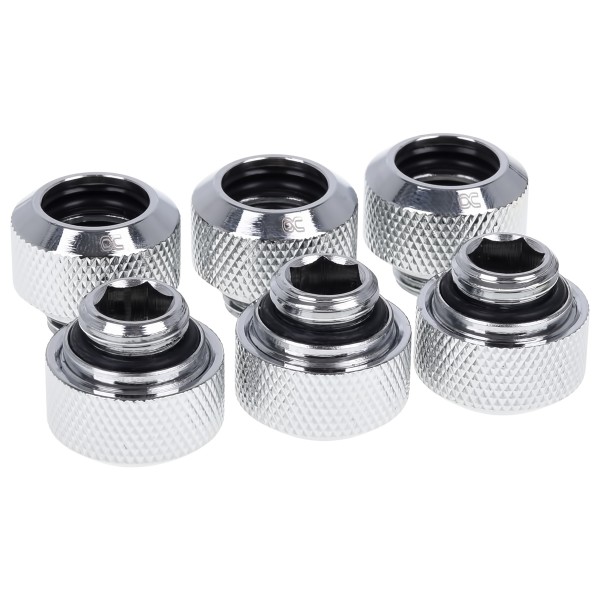

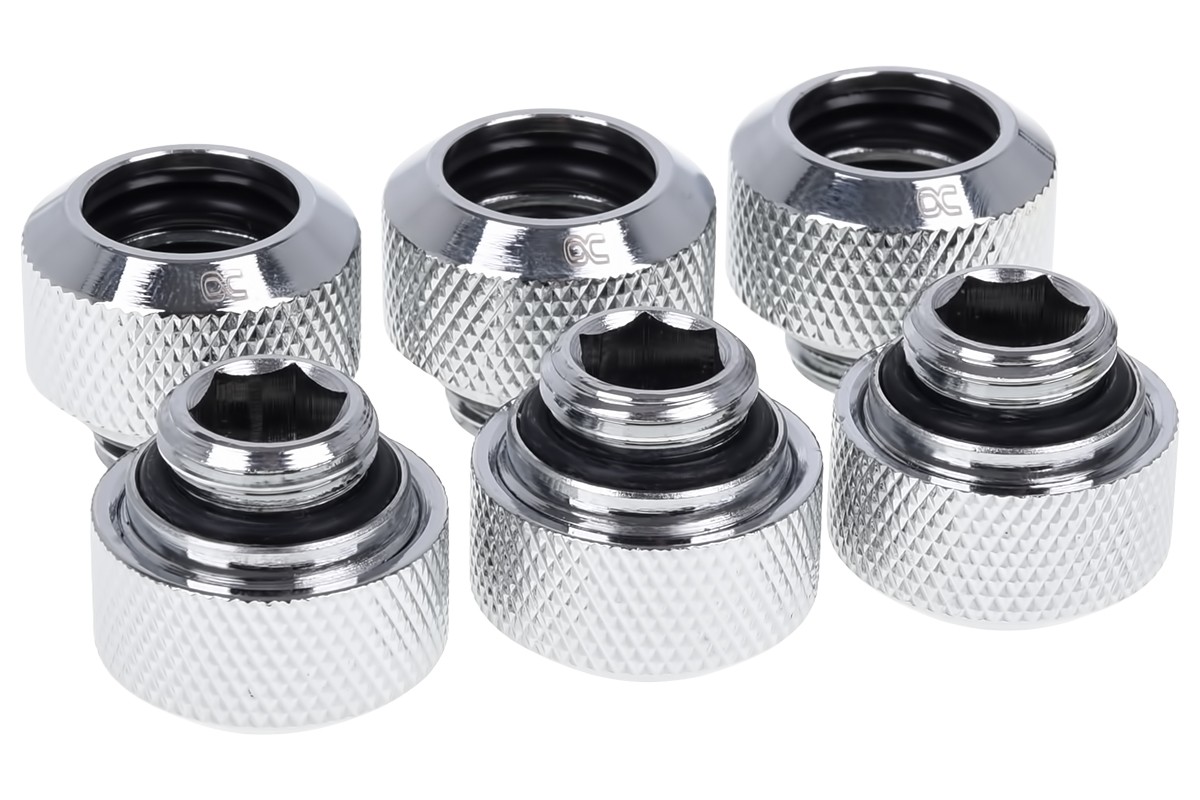

Alphacool Eiszapfen 13mm G1/4" HardTube Knurled Compression Fitting - Sixpack - Chrome (17376)

The Alphacool Eiszapfen 13mm G1/4 HardTube Knurled Compression Fitting in Chrome is a straight screw-on fitting with a G1/4 external thread for hard tubes with an external diameter of 13 mm. This is the Sixpack, so there are six fittings in the pack. Alphacool lists the model as the HardTube Socket 13mm.

Properties

Thread

G1/4 external screw thread

Tube size

13 mm outer diameter

Color

Chrome, knurled

Material

Brass

Size

21 mm diameter, 16 mm height

Pieces in the pack

Six

The Eiszapfen series

Alphacool calls its Eiszapfen Connector Series the high-end execution of its tried-and-true connectors. In its words, every requirement you could have of a connector is met with this series: highflow, form, processing and color. It says a refusal to compromise in development and production has made the series into what it is. Components are available in brilliant chrome or a deep, matte black, and Alphacool says either will fit excellently into any system. This pack is the chrome version.

Coating and logo

A special procedure binds the outer coating firmly to the surface. According to Alphacool that is improving the longevity of the intense color and preventing any chipping or peeling of the coating. Every connector now has the Alphacool logo, which along with their distinctive shape makes them unmistakable.

How it holds the tube

The connecting nut has slanted corners. They allow the O-ring to be pressed firmly against the HardTube, ensuring it sits even more securely than before, and Alphacool says this allows for greater safety in transport. Anyone looking for colorful options has them: the O-rings in the shipment come in three colors. With the available UV-light option, these will even light up in the corresponding color.

What a run needs

One side of the connector screws into a G1/4 port, the other side fits HardTubes with an external diameter of 13 mm. A tube run takes two fittings, one at each end. Tubes to match are in our 13mm hard tubing section.

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

In the box

• 1x Alphacool Eiszapfen 13mm HardTube screw-on nozzle G1/4 for acrylic brass tubes - Chrome Sixpack

Alphacool's 3D model of this fitting is an STP file, and the 3D viewer shows it from every side.
