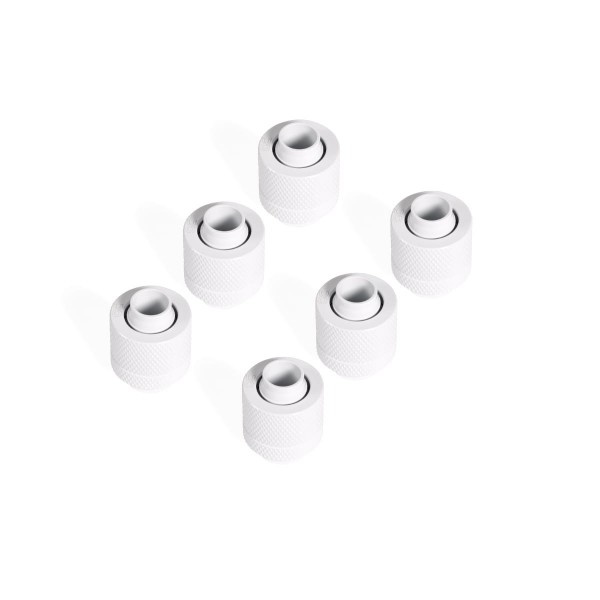

Alphacool Eiszapfen 13/10mm Compression Fitting G1/4 - White Sixpack (17624)

The Alphacool Eiszapfen 13/10mm Compression Fitting G1/4 - White Sixpack is a compression fitting for 13/10 mm soft tube with a G1/4 external thread, six fittings per pack. The tube connection is 13/10mm, which is ID 3/8" and OD 1/2", and the color is white.

Properties

Thread

G1/4 external thread

Tube size

13/10 mm (ID 3/8", OD 1/2")

Color

White

Material

Brass

Pieces in the pack

6

The Eiszapfen series

Alphacool's Eiszapfen Fitting series is, in its maker's words, the high-end version of the proven compression fitting. Alphacool says all requirements that are placed on a fitting are met here: Highflow, shape, processing and color scheme. By its account, uncompromising development and manufacturing have made the Eiszapfen what they are. In brilliant white, Alphacool says, they blend excellently into any system.

Coating and logo

Special processes are used at Alphacool to bond the coatings firmly to the substrate. The longevity of the intense colors is thus given, it says, and chipping of the coating is prevented. In addition to its special shape, each fitting has the Alphacool logo, which makes it unmistakable.

How it holds the hose

The compression nut has beveled edges. They press the O-ring tightly against the hose, keeping the tube securely in place.

Sixpack

A loop often needs six fittings of one type, so Alphacool also offers six-packs. This is that pack in white.

What a run needs

The fitting takes soft tube with a 10 mm inner and 13 mm outer diameter, found in our 3/8" ID x 1/2" OD soft tubing section. The thread screws into any G1/4 port. Six fittings cover three tube runs, since each run takes one fitting at each end.

Technical Data

Packaging dimensions per unit

Notes

• Please note: use only in conjunction with clear transparent water cooling fluids.
• Alphacool warns that the particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses.
• This kind of damage can result in voiding the manufacturer's warranty as well.

In the box

• 6x Eiszapfen 13/10mm compression fitting G1/4
• 6x O-Ring blue
• 6x O-Ring red
• 6x O-ring yellow

Alphacool's Datasheet (EN) lists the technical data and the scope of delivery.
