Details

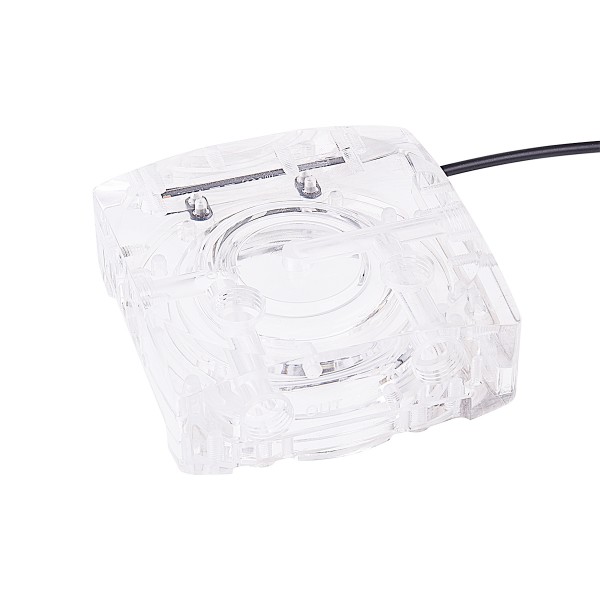

The Alphacool Eisdecke D5 Plexi Top V.4 is a clear acrylic pump top for D5 pumps, with three G1/4 inlet ports, three G1/4 outlet ports and a pre-assembled RGB strip. Alphacool lists its compatibility as the Alphacool Eispumpe VPP755, Alphacool VPP655, Watercool D5/PWM and Aqua Computer D5/PWM. It measures 86 x 86 x 40 mm, or 91 mm high with the feet.
Properties
- Pump
- Alphacool Eispumpe VPP755, Alphacool VPP655, Watercool D5/PWM, Aqua Computer D5/PWM
- Ports
- 3x G1/4 inlet, 3x G1/4 outlet
- Size
- 86 x 86 x 40 mm
- Height with feet
- 91 mm
- Material
- Acrylic, aluminum feet
- Lighting
- RGB strip, 4-pin male RGB connector
Maximum Flow Capacity

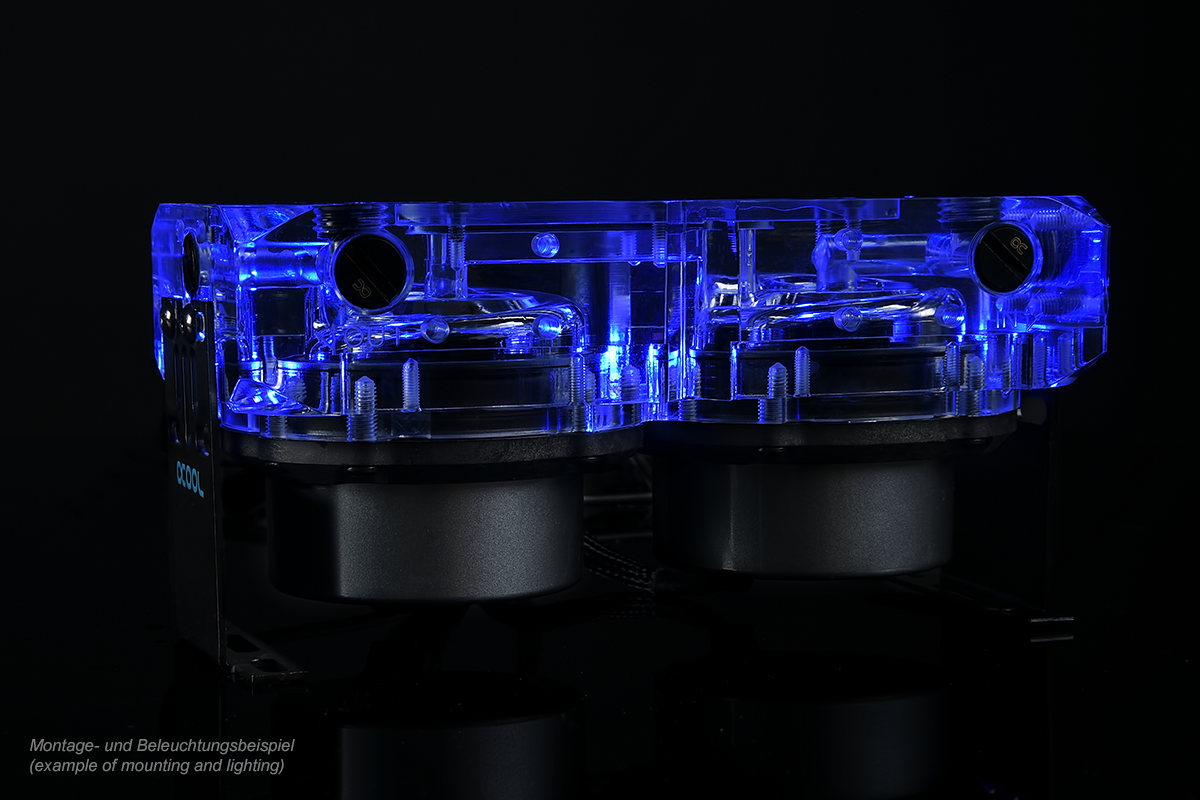

Alphacool calls the Eisdecke Plexi quiet, strong and spectacular, and the perfect pump top to take your pump to the next stage. The Eisdecke range has an attachment for each pump type, which Alphacool says will make your Alphacool DC-LT, Laing DDC, Eispumpe VPP755 or Laing D5 pump a show piece. This version is the one for the D5 pumps named above. Thanks to the multiple G1/4 threads, Alphacool calls the Eisdecke the universal companion for every pump. With the Dual attachment you can even connect two pumps in series, which Alphacool says will maximize the performance of your water cooling. We stock the Eisdecke D5 Dual Plexi Top.
Optimum Flexibility
It doesn't matter how you want to place the pump in your system: Alphacool says the top can accommodate it and gives you the flexibility you need. Mount the pump vertically, horizontally, or at a 45° or 90° angle, no problem. The included feet give what Alphacool calls the greatest possible variety of mounting options for your case.
Unlimited Color Spectrum
The clear acrylic carries a pre-assembled RGB strip, which Alphacool says makes the Plexi Eisdecke shine like a diamond. Its 4-pin male RGB connector makes the top compatible with the most common RGB controllers. Alphacool describes the screw plugs as new and patented: with their ultra-flat design they nestle perfectly to the top, making a clean, sleek look.
Silent Qualities
The top can be equipped with vibration dampers that, Alphacool says, make your pump quieter than ever before. In Alphacool's words they remove distracting noises and ensure you gain the performance you need: the Eisdecke should be seen, not heard.
What the loop needs
All six ports are G1/4. Two are used, one inlet and one outlet, and the other four take the stop fittings in the box, so the top needs two fittings for your tube size. The box list holds no pump: choose one from our D5 pumps.
Technical Details
| Dimensions | 86 x 86 x 40 mm |
| Height with feet | 91 mm |
| Material | Acrylic, aluminum feet |
| Connections | 3x G1/4 inlet ports and 3x G1/4 outlet ports |
| Compatibility | Alphacool Eispumpe VPP755, Alphacool VPP655, Watercool D5/PWM, Aqua Computer D5/PWM |
In the box
- 1x Eisdecke D5 Plexi Top V.4
- 4x G1/4 Stop Fittings
- 2x Feet
- 8x M4 x6 Screws
- 4x M4 Nuts
- 4x M4 Dampening Screws
- 8x M4 x12 Screws
- 1x Pump Support Frame
