Details

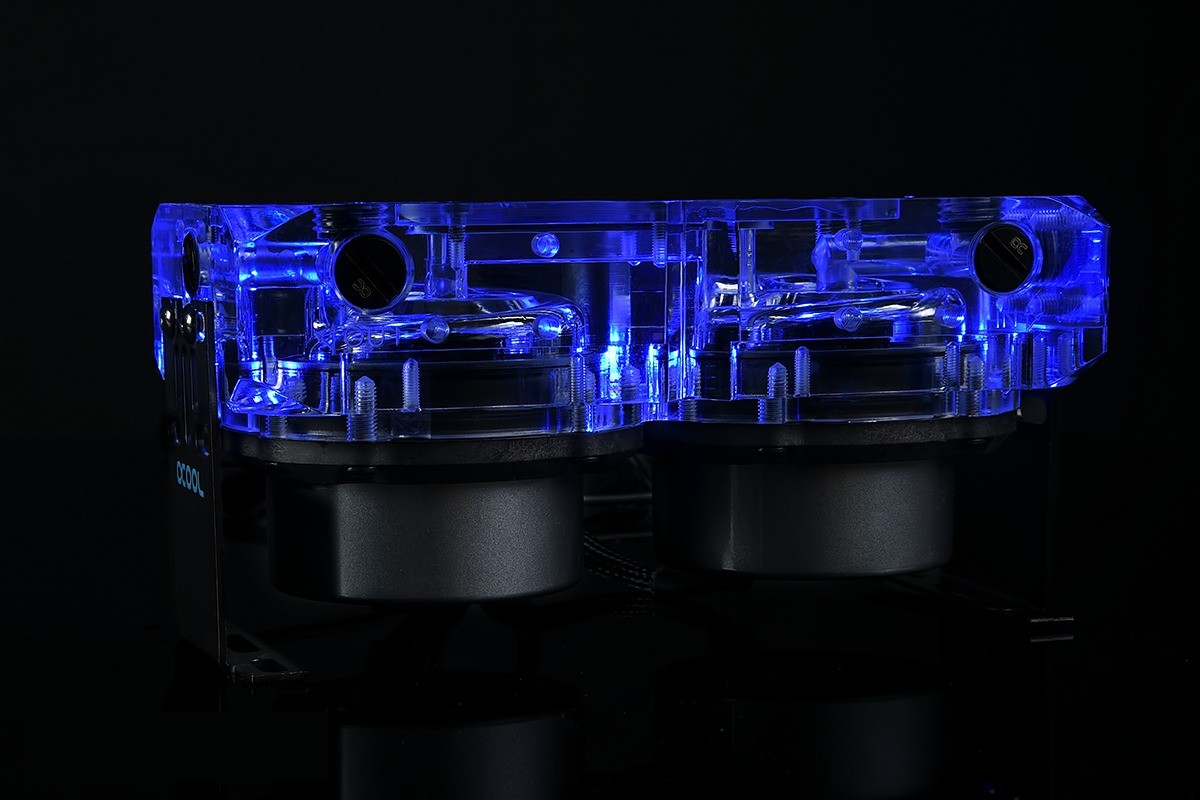

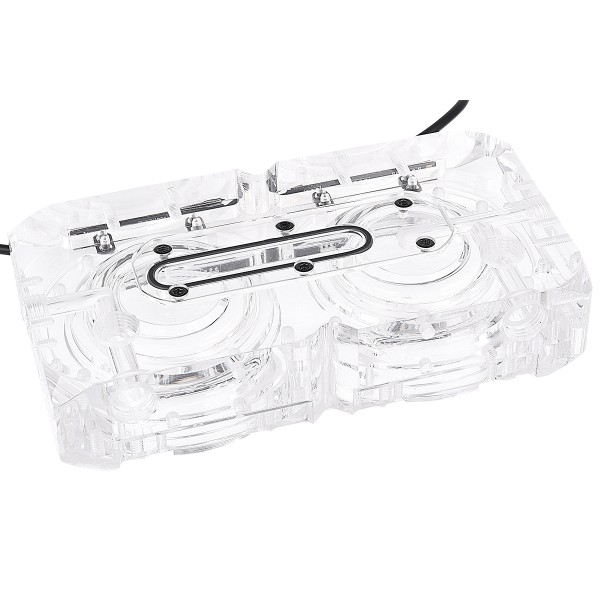

The Alphacool Eisdecke D5 Dual Plexi Top is a pump top for two D5 pumps, 164 x 84 x 40 mm, made of clear acrylic. It has 3x G1/4 inlet ports and 3x G1/4 outlet ports. It is the Dual attachment of the Eisdecke range, the one that lets you connect two pumps in series. It fits the Alphacool Eispumpe VPP755, Alphacool VPP655, Watercool D5/PWM and Aqua Computer D5/PWM, and no pump is in the box.
Properties
- Pump
- two D5 pumps in series
- Ports
- 3x G1/4 inlet, 3x G1/4 outlet
- Size
- 164 x 84 x 40 mm
- Height with feet
- 91.5 mm
- Material
- Acrylic, aluminum feet
- Lighting
- pre-assembled RGB strip, 4-pin male RGB connector
Maximum flow capacity
The Eisdecke range is there to make an Alphacool DC-LT, Laing DDC, Eispumpe VPP755 or Laing D5 pump a show piece, and this attachment is the version for D5 pumps. Thanks to the multiple G1/4 threads, Alphacool calls the Eisdecke the universal companion for every pump. With the Dual attachment, which this top is, you can even connect two pumps in series. Alphacool says that will maximize the performance of your water cooling. The same top in brass is the Eisdecke D5 Dual Brass Top in Deep Black.
Optimum flexibility
It doesn't matter how you want to place your pump in the system: Alphacool says the top can accommodate it and gives you the flexibility you need. You can mount the pump vertically, horizontally, at a 45° or 90° angle, no problem. The included feet are aluminum, and Alphacool says they give you the greatest possible variety of mounting options for your case.
Unlimited color spectrum

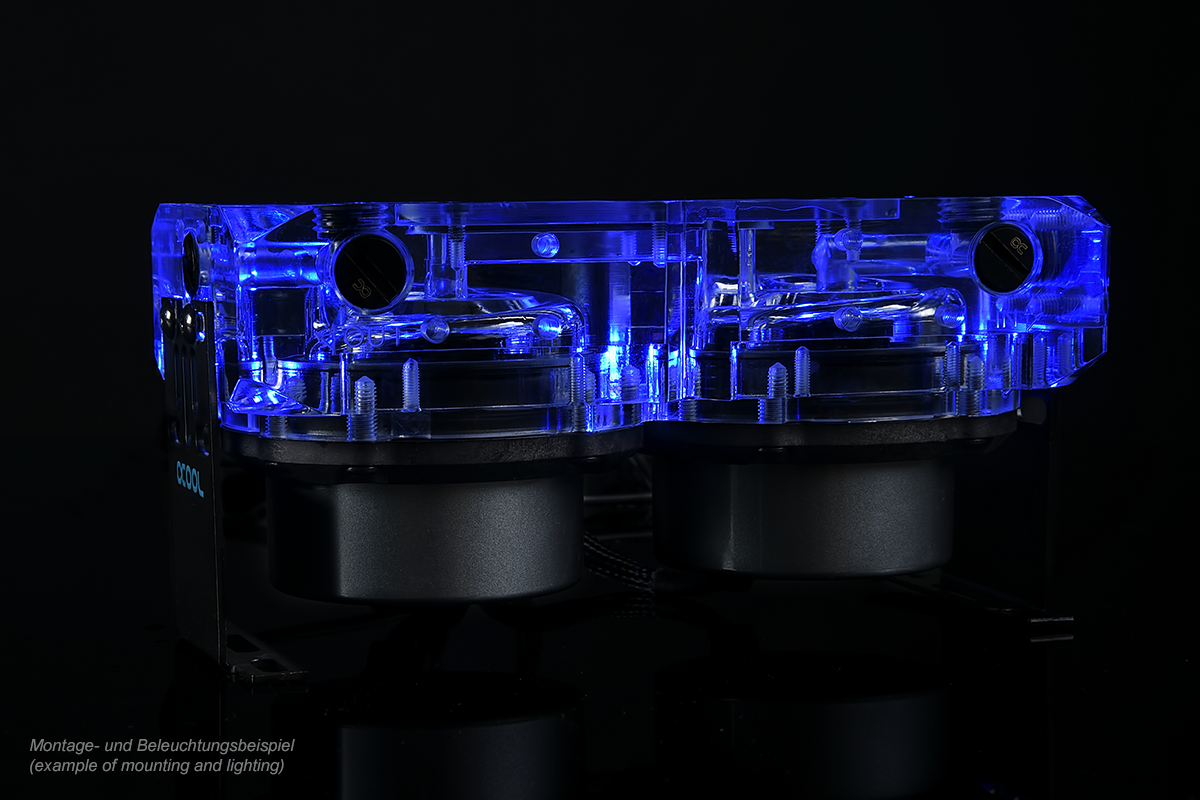

The top is clear acrylic with a pre-assembled RGB strip, which Alphacool says makes the Plexi Eisdecke shine like a diamond. The strip ends in a 4-pin male RGB connector, and Alphacool calls that compatible with all common controllers; ours are in the RGB controller section. The new, patented screw plugs have an ultra-flat design. Alphacool says their shape lets them nestle perfectly to the top, making a clean, sleek look.
Silent qualities
The top can be equipped with vibration dampers, and the four M4 dampening screws for that are in the box. Alphacool promises a pump that is quieter than ever before: remove distracting noises and ensure you gain the performance you need. Its motto for the range is that the Eisdecke should be seen, not heard. Alphacool opens with "Quiet, strong and spectacular!" and calls the Eisdecke Plexi the perfect pump top to take your pump to the next stage.
What the loop needs
The top needs two D5 pumps, and the two pump support frames in the box hold them. Of the six G1/4 ports, two are used, one inlet and one outlet, each with a fitting for your tube. The other four take the four stop fittings in the box.
Technical details
| Dimensions | 164 x 84 x 40 mm |
| Height with feet | 91.5 mm |
| Material | Acrylic, aluminum feet |
| Connections | 3x G1/4 inlet ports and 3x G1/4 outlet ports |
| Compatibility | Alphacool Eispumpe VPP755, Alphacool VPP655, Watercool D5/PWM, Aqua Computer D5/PWM |
In the box
- 1x Eisdecke D5 Dual Plexi Top
- 4x G1/4 Stop Fittings
- 2x Feet
- 8x M4 x6 Screws
- 4x M4 Nuts
- 4x M4 Dampening Screws
- 16x M4 x12 Screws
- 2x Pump Support Frame
