Details

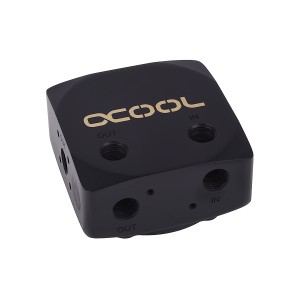

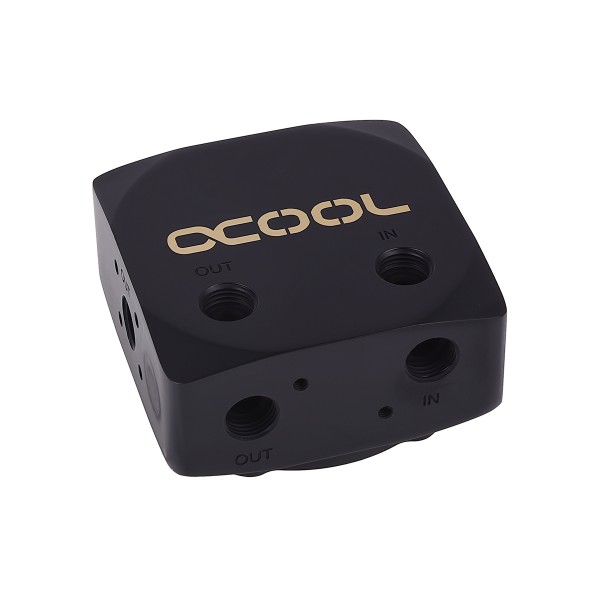

The Alphacool Eisdecke D5 Brass Top - Deep Black is a pump top for one D5 pump, 80 x 80 x 40 mm, made of brass. It has 3x G1/4 inlet ports and 3x G1/4 outlet ports. It fits the Alphacool Eispumpe VPP755, Alphacool VPP655, Watercool D5/PWM and Aqua Computer D5/PWM, and no pump is in the box.
Properties
- Pump
- one D5 pump
- Ports
- 3x G1/4 inlet, 3x G1/4 outlet
- Size
- 80 x 80 x 40 mm
- Height including feet
- 95 mm
- Material
- Brass, aluminum feet
- Color
- Deep Black
Maximum flow capacity
The Eisdecke range is there to make an Alphacool DC-LT, Laing DDC, Eispumpe VPP755 or Laing D5 pump a show piece, and this attachment is the version for D5 pumps. Thanks to the multiple G1/4 threads, Alphacool calls the Eisdecke the universal companion for every pump. With the Dual attachment you can even connect two pumps in series, which Alphacool says will maximize the performance of your water cooling.
Optimum flexibility
It doesn't matter how you want to place your pump in the system: Alphacool says the top can accommodate it and gives you the flexibility you need. You can mount the pump vertically, horizontally, at a 45° or 90° angle, no problem. The included feet are aluminum, and Alphacool says they give you the greatest possible variety of mounting options for your case.
Elegance in perfection
Alphacool describes the brass Eisdecke as high-quality, with a stylish and noble character, and says it makes your pump a special highlight of the water cooling. In its words the top captivates with clear lines and a cool design, making your pumps a feature inside the case. The new, patented screw plugs have an ultra-flat design. Alphacool says their shape lets them nestle perfectly to the top, making a clean, sleek look.
Silent qualities
The top can be equipped with vibration dampers, and the four M4 dampening screws for that are in the box. Alphacool promises a pump that is quieter than ever before: remove distracting noises and ensure you gain the performance you need. Its motto for the range is that the Eisdecke should be seen, not heard. Alphacool opens with "Quiet, strong and spectacular!" and calls the Eisdecke Brass the perfect pump top to take your pump to the next stage.
What the loop needs

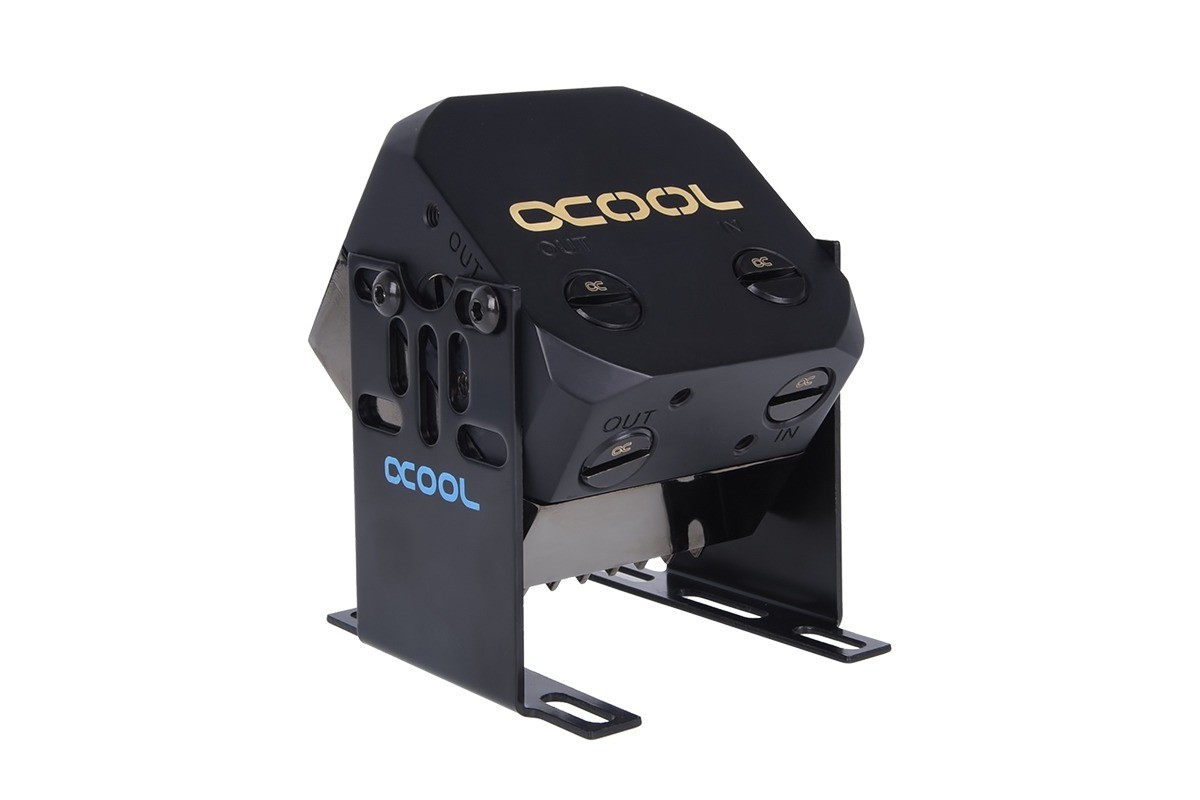

The top needs a D5 pump, and the pump support frame in the box holds it. Of the six G1/4 ports, two are used, one inlet and one outlet, each with a fitting for your tube. The other four take the four stop fittings in the box.
Technical details
| Dimensions | 80 x 80 x 40 mm |
| Height including feet | 95 mm |
| Material | Brass, aluminum feet |
| Connections | 3x G1/4 inlet ports and 3x G1/4 outlet ports |
| Compatibility | Alphacool Eispumpe VPP755, Alphacool VPP655, Watercool D5/PWM, Aqua Computer D5/PWM |
In the box
- 1x Eisdecke D5 Brass Top - Deep Black
- 4x G1/4 Stop Fittings
- 2x Feet
- 8x M4 x6 Screws
- 4x M4 Nuts
- 4x M4 Dampening Screws
- 8x M4 x12 Screws
- 1x Pump Support Frame
Alphacool's 3D model of this top is an STP file, and the 3D viewer shows it from every side.
