Details

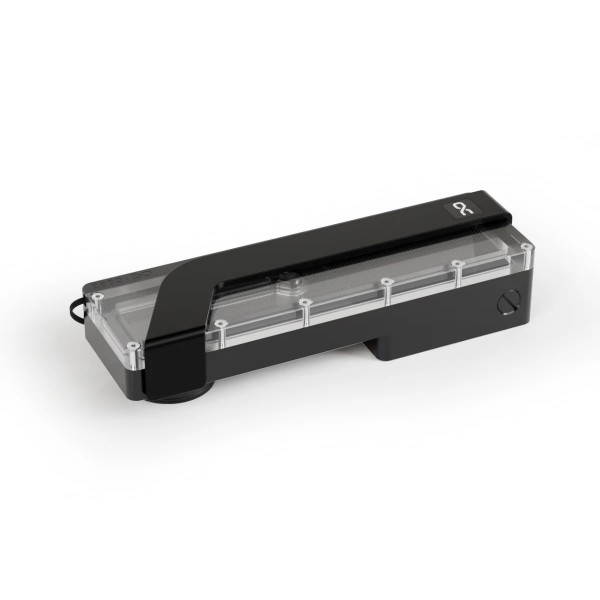

The Alphacool Core 2x DDCzero Flat Reservoir 200 with Pump is a flat reservoir with one DDCzero PWM pump included and room for a second. It is the largest model in the Core DDCzero Flat Reservoir lineup and has five G1/4 ports. The next size down is the Flat Reservoir 140 with pump.
Properties
- Pump
- 1x DDCzero PWM included, supports up to two
- Ports
- 5x G1/4
- Maximum flow rate
- 220 L/h
- Maximum head pressure
- 1.4 meters
- Lighting
- 5V digital aRGB
Reservoir
The reservoir combines a high-capacity coolant tank with the DDCzero pump to create an all-in-one solution for custom liquid cooling systems. It is constructed with an acetal base and a crystal-clear acrylic top, so the base carries the load while the top keeps a clear view of the coolant. All five threaded ports are integrated directly into the acetal base, eliminating stress on the acrylic and allowing flexible inlet, outlet, fill and drain configurations for a clean, efficient loop design. It offers increased coolant capacity and, unique in the lineup, the ability to support two pumps, making it the one for larger, more demanding loops.
Pump
The included pump delivers a maximum flow rate of 220 L/h and a maximum head pressure of 1.4 meters. PWM speed control allows operation between 3,000 and 4,800 RPM, which makes it easy to balance cooling performance and noise levels. It runs on a ceramic shaft. For users requiring additional flow capacity or redundancy, the reservoir supports installation of a second Core DDCzero pump.
Lighting
Integrated 5V digital aRGB lighting evenly illuminates the reservoir, enhancing coolant visibility and complementing the clean styling of the Alphacool Core series. It connects to any compatible motherboard aRGB header or to an optional Alphacool aRGB controller, for synchronized lighting effects throughout your build. An aRGB adapter is in the box.
Mounting
To simplify installation, the included Core Universal Mounting Kit lets the reservoir mount directly to any standard 120mm fan or radiator location. The bracket supports both straight (standard) and 90° rotated mounting positions, providing flexibility for tubing layouts and component placement. The package includes the mounting hardware. The same universal bracket set is sold on its own.
What the loop needs
The pump is pre-installed, so the reservoir needs fittings, tube and coolant. Of the five ports two are used, an inlet and an outlet, so it takes two compression fittings. The remaining three take the G1/4 plugs in the box, set with the plug tool. The manual shows each inlet and outlet configuration and the connection of the 4-Pin PWM cable.
Features
- Large-capacity flat reservoir with integrated Alphacool DDCzero PWM pump
- Described as a versatile solution with a powerful pump, ideal for high-performance and complex custom liquid cooling loops
- Threads in the acetal base for increased durability, built for long-lasting reliability
- PWM-controlled pump with an adjustable operating range
- Durable, robust construction designed for reliable, dependable long-term circulation in gaming systems, workstations and professional cooling applications
In the box
- 1x Alphacool Core 2x DDCzero Flat Reservoir 200
- 1x Alphacool Core DDCzero 3300-4800rpm PWM Pump
- 1x Alphacool Core universal bracket set for DDCzero reservoir
- 3x G1/4 Plug
- 1x Plug Tool
- 1x aRGB Adapter
Alphacool's MANUAL is a PDF. Its 3D model of the reservoir is an STP file, and the 3D viewer shows it from every side.
