Details
The Alphacool Core Universal Bracket Set for DDCzero Reservoir is a mounting kit for Alphacool Core DDCzero series reservoirs and pump tops, with one straight and one 90° bracket. It mounts them to any standard 120mm fan or radiator mounting position. It is designed exclusively for compatible DDCzero parts and is not intended as a universal mounting bracket for other reservoir or pump models.
Properties
- For
- Core DDCzero reservoirs and pump tops
- Mounts to
- 120mm fan or radiator positions
- Orientation
- Standard or 90° rotated
- Material
- Stainless steel
- Hardware
- Standard M3
What it is for
Alphacool sells this as its Core Universal Mounting Kit. It provides a simple and secure solution for installing a DDCzero reservoir or pump top, and it was designed specifically for the DDCzero platform. The kit enables clean, flexible mounting, making integration easier in custom liquid cooling systems.
Two orientations
The kit supports two installation orientations, allowing a choice: the reservoir or pump top can be mounted in either a standard or a 90-degree rotated position. That flexibility makes it easy to optimize tubing runs, improve component clearance, and adapt to compact cases or complex custom loop layouts. The manual shows the set pre-assembled with the straight bracket, and the 90° bracket takes its place for the rotated position. On both, loosen the screws slightly to adjust the height of the bracket.
Stainless steel brackets
The mounting brackets are manufactured from durable stainless steel to provide excellent rigidity and long-term reliability. The sturdy construction securely supports the reservoir while minimizing movement, ensuring a stable installation during long-term operation.
What the mount needs
Using standard 120mm fan mounting hole spacing, the kit installs directly to compatible radiators or fan locations without requiring custom modifications. Mounting is secure with the standard M3 hardware in the box. It offers a clean and professional mounting solution whether you're building a compact gaming PC or a larger workstation cooling loop.
Features
- Mounts directly to a standard 120mm fan or radiator position
- Supports both installations, standard and 90° rotated
- Optimizes tubing routing and the flexibility of the system layout
- Ideal for compact builds and custom liquid cooling builds
- No custom modifications are required on compatible 120mm mounting locations
Compatibility
- Alphacool Core DDCzero series reservoirs
- Alphacool Core DDCzero series pump tops
Please note that the package includes the brackets and the stainless steel mounting hardware only: the reservoir or pump top is not part of it.

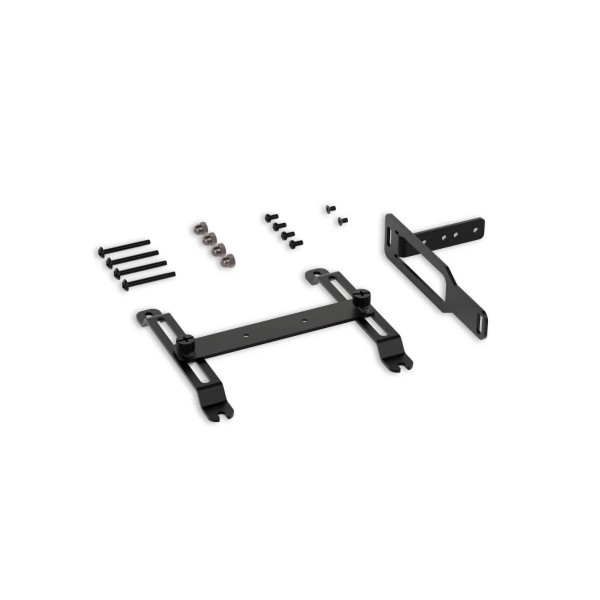

In the box
- 1x Straight Bracket
- 1x 90° Bracket
- 2x M3x5mm Screw
- 4x M3x6mm Screw
- 4x M3 Nut
- 4x M3x30mm Screw
Alphacool's MANUAL is a PDF. Its 3D model of the bracket set is an STP file, and the 3D viewer shows it from every side.
