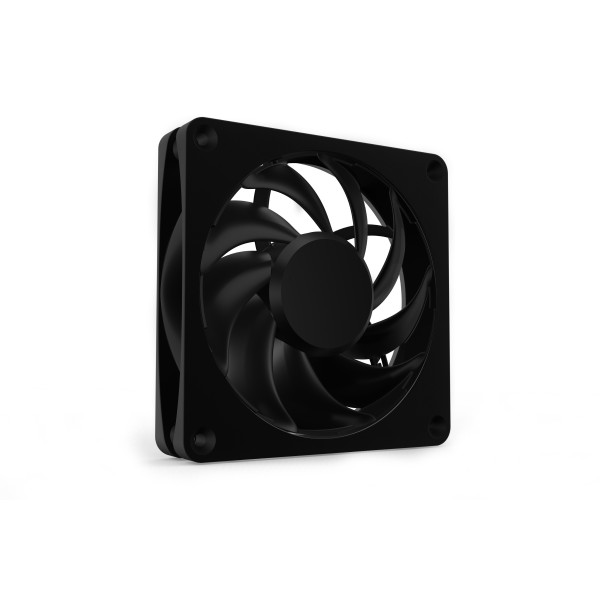

Alphacool Apex Stealth Metal Fan 2000rpm Matte Black - 120x120x25mm (13819)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Alphacool Apex Stealth Metal Fan 2000rpm Matte Black - 120x120x25mm (13819)

Availability: In stock - Available Now

Sku: 1024105

$28.50

Quick Overview

High-quality, elegant as well as timeless design and technical innovation - these are the features of the Alphacool Apex Stealth metal fan.

OR

Details

High-quality, elegant as well as timeless design and technical innovation - these are the features of the Alphacool Apex Stealth metal fan. With its
patent-pending decoupling technology, the robust metal frame and a special rotor, this fan certainly impresses. Not only is the Apex Stealth one of the
most powerful fans, but it also remains the quietest at any speed.

Whisper Quiet

The fan blades, motor and its suspension are completely decoupled from the metal frame. For this purpose, a special damping system was placed
between the metal frame and the fan, which absorbs all vibrations. This type of decoupling is a completely new system, which is brought to the market
by Alphacool for the first time with the Apex fan. In addition, the impeller is equipped with a closed frame that prevents the impeller tips from
fluttering at high speed, which also has a positive effect on the fan's characteristics.

Powerful All-rounder

The Alphacool Apex Stealth metal fan is a true all-rounder. It sets new standards in terms of airflow and static pressure. Therefore, this fan is not only
perfect for mounting on radiators, but also provides excellent airflow as a case fan. The Apex Stealth can be controlled between 0 to 2000 rpm via the
4-pin PWM connector. The startup speed is ~420 rpm. In addition, the Stealth offers Zero RPM control, which can be used to bring the fan to a complete
stop.

Apex Design

Alphacool's Apex product line represents the highest level of perfection. First-class materials and innovative technologies guarantee a unique
premium product. Consisting of high-quality metal, the curved frame gives the Apex Stealth its distinctive design and fits perfectly into any PC build.

Additional Features

As usual with Alphacool, multiple fans can be effortlessly connected in series via daisy chain. The cables can be hidden in the corners of the fan so that
they are no longer visible. A 50 cm PWM cable is also included as an extension. The 6-pole motor in combination with the HDB bearing (Hydro Dynamic
Bearing) ensures extremely quiet operation and high durability.


Dimensions 120 x 120 x 25mm
Material (Frame) Zinc Injection Molding
Material (Impeller) Plastic
Weight 320g
Speed 0~2000±10% rpm
Bearing Hydro Dynamic Bearing
Connector 4-Pin PWM
Cable Length (Daisy Chain)    110±10 mm
Start-up Voltage 6V DC
Rated Voltage 12V DC
Power Consumption 2.64 W
Air Flow 47 CFM
Static Air Pressure 2.09 mmH2O
Noise Level 24.6 dBA
MTBF (Lifespan) 100,000 Hours
PWM Control Yes
Zero RPM Control Yes
Tachometer Signal Yes
Auto-Restart Yes
Color Black

Additional Information

NE US Item # No
NE CA Item # No
Amazon ASIN NA
Manufacturer Alphacool
Overall Dimensions 120 x 120 x 25 (L x W x H)
RPM 0~2000±10% rpm
Air flow 47 CFM
Noise (dB) Max. 24.6 dBA
Air pressure 2.09 mmH2O
Power Connector 4-Pin PWM
Start voltage 6V
Voltage 12V
Material No
Max Current Draw 2.64 W
Color Black
LED None
Fan Compatibility 120mm
Included 1x Stealth Fan
1x PWM Extension cable 50cm
4x M3 x 28mm Screw
4x 6-32 x 28mm UNC Screw
4x M4 x 30mm Screw
4x M4 Stealth Mounting Nut
