Details

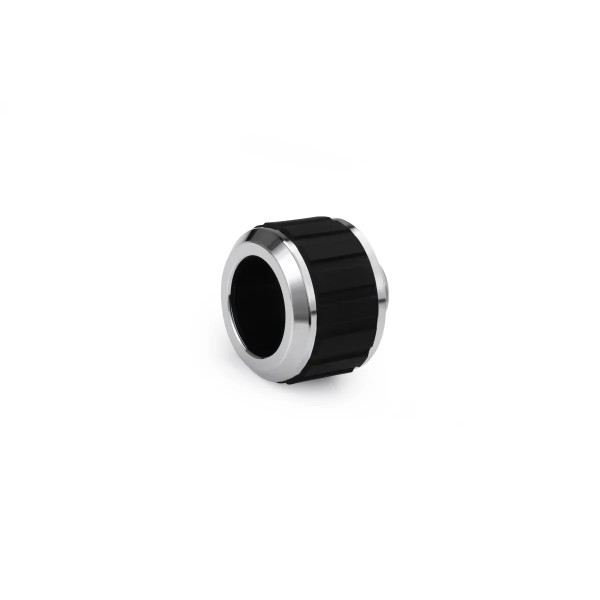

The Alphacool Apex Grip 16mm G1/4 HardTube Fitting - Chrome is a fitting with a G1/4 thread for hard tube with a 16 mm outer diameter (OD), one fitting per pack. It is made of brass with a chrome coating and a silicone grip surface.
Properties
- Thread
- G1/4, 5 mm thread length
- Tube size
- 16 mm outer diameter (OD) hard tube
- Material
- Brass, silicone handle surface
- Color
- Chrome
- Pieces in the pack
- 1
The grip
The outer grip area of the fitting carries an integrated silicone surface, a key feature of the series. That surface provides a better grip when tightening by hand, and it noticeably facilitates installation, especially in confined spaces. Alphacool says this not only makes fitting the part more convenient but also offers greater control.
Brass and coating
The fittings are made of brass, which gives the series high stability and durability. This is complemented by a chrome coating that protects against chipping. Alphacool calls the coating and the workmanship high-quality and says the finish further emphasizes the sophisticated character of the range. According to Alphacool, the precise manufacturing ensures a reliable seal within the cooling loop, and the part is designed for high-flow performance within the system.
The modular system
Apex Grip fittings utilize a modular system that enables flexible and customized connection solutions for modern custom water cooling systems. At the same time, Alphacool says, the system allows for versatile applications and adaptation to individual setups. Combined with the elegant design in the distinctive Apex style and the comfortable handling, Alphacool calls the series the ideal choice for demanding systems. It also calls the fittings the perfect choice for anyone who places particular emphasis on handling and an elegant appearance in their custom loop.
What a run needs
The G1/4 thread screws into a G1/4 port, and the other side takes hard tube with a 16 mm outer diameter. A tube run takes two fittings, one at each end. Tube to match is in our 16mm OD hard tubing section, and other fittings for this tube size are with the 16mm OD hard tube fittings.
Technical data
| Height | 22.30 mm |
| Diameter | 25.00 mm |
| Material Fitting | Brass |
| Handle surface | Silicone |
| Connections | G1/4 |
| Thread length | 5 mm |
| Hard tube compatibility | 16 mm outer diameter (OD) |
| Color | Chrome |
In the box
- 1x Apex Grip 16mm G1/4 HardTube fitting, chrome
Alphacool's 3D model of this fitting is an STP file, and the 3D viewer shows it from every side.
