Details

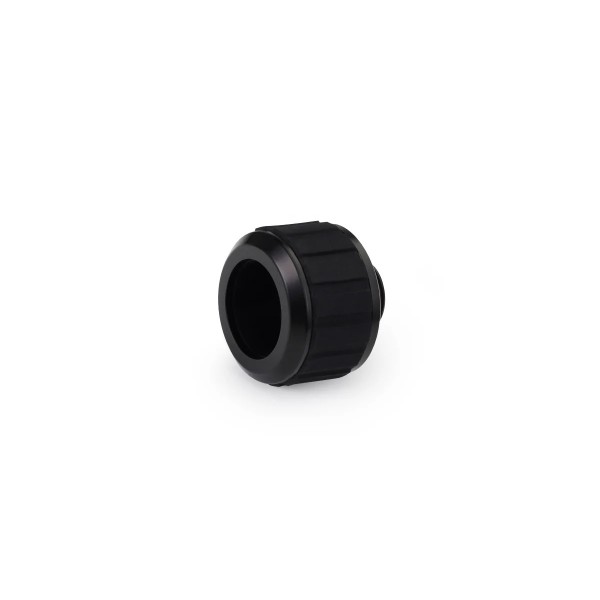

The Alphacool Apex Grip 16mm G1/4 HardTube Fitting - Black is a hard tube fitting with a G1/4 thread for hard tube with a 16 mm outer diameter (OD), one fitting per pack. The body is brass, with a silicone surface on the outer grip area.
Properties
- Thread
- G1/4
- Tube size
- 16 mm outer diameter hard tube
- Material
- Brass with a silicone handle surface
- Color
- Black
- Pieces in the pack
- 1
Grip and build
Apex Grip fittings utilize a modular system, which enables flexible and customized connection solutions for modern custom water cooling systems. A key feature of the series is the silicone surface integrated into the outer grip area of the fitting. It provides a better grip when tightening by hand and noticeably facilitates installation, especially in confined spaces. Alphacool says this not only makes installation more convenient but also offers greater control.
The fittings are made of brass, and that gives the series high stability and durability. This is complemented by a coating that Alphacool calls high-quality: it protects against chipping and, in Alphacool's words, further emphasizes the series' sophisticated character. According to Alphacool, the precise manufacturing ensures a reliable seal within the cooling loop and is designed for high-flow performance within the system. At the same time, it says, the modular system allows for versatile applications and flexible adaptation to individual setups.
Alphacool names the series the ideal choice for demanding systems, combined with an elegant design in the distinctive Apex style, high-quality workmanship and comfortable handling. It also calls the fittings the perfect choice for anyone who places particular emphasis on comfortable handling and an elegant appearance in their loop.
What a run needs
A tube run takes two fittings, one at each end, and each screws into a G1/4 port. Tubes to match are in our 16mm hard tubing section.
Technical data
| Height | 22.30 mm |
| Diameter | 25.00 mm |
| Material Fitting | Brass |
| Handle surface | Silicone |
| Connections | G1/4 |
| Thread length | 5 mm |
| Hard tube compatibility | 16 mm outer diameter (OD) |
| Color | black |
Alphacool's 3D model of this fitting is an STP file, and the 3D viewer shows it from every side.
