Details

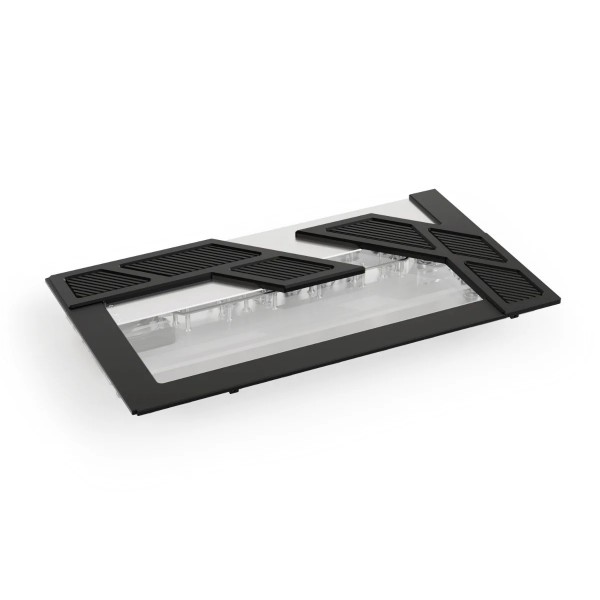

The Alphacool Apex Distro Plate for the HYTE Y70 and Y70 Touch Infinite transforms the front of the case into a centerpiece for a custom liquid cooling system. Designed specifically for the Y70 platform, the distro plate replaces the original front panel and integrates directly with the factory mounting points for a clean, purpose-built installation.
Constructed from high-quality acrylic, the Apex Distro Plate provides an unobstructed view of the coolant and internal flow channels. Integrated 5V addressable RGB lighting uses 11 LEDs to illuminate the acrylic and coolant, creating a striking visual effect that complements the panoramic design of the HYTE Y70.
A key feature of the Apex design is Alphacool's approach to the G1/4" connections. Instead of threading fittings directly into the acrylic, the distro plate uses two-piece chrome-plated brass connections with O-ring seals. The components interlock through the acrylic during assembly, reducing stress on the acrylic around the connection points while providing a secure and reliable seal.
The distro plate provides eight G1/4" connections along with dedicated fill and drain ports, giving builders flexibility when routing CPU, GPU, radiator, and other custom loop components. With a maximum filling volume of 372ml, the integrated reservoir also provides substantial coolant capacity while maintaining the clean appearance of a case-specific distro plate.
The integrated pump mount supports D5/VPP-format pumps, allowing builders to select a pump that matches the performance requirements of their cooling system. The pump is positioned directly on the distro plate to create a compact and organized pump/reservoir configuration.
Installation is designed specifically around the HYTE Y70 chassis. The distro plate replaces the front panel and attaches to the original case mounting bracket using the factory mounting locations, eliminating the need for permanent case modifications.
Features
- Premium distro plate designed specifically for the HYTE Y70 series
- Compatible with HYTE Y70 and Y70 Touch Infinite cases
- Replaces the original front panel for a fully integrated appearance
- High-quality acrylic construction with visible coolant channels
- Integrated reservoir with up to 372ml filling volume
- Eight G1/4" connections for flexible custom loop routing
- Dedicated fill and drain ports
- Two-piece chrome-plated brass connection design
- O-ring sealed connections reduce stress on the acrylic
- Supports D5/VPP-format pumps
- Integrated 5V addressable RGB lighting
- 11 integrated LEDs
- Aluminum cover components
- Uses the case's original mounting locations for straightforward installation
- Designed for high-end custom PC water cooling systems
Compatibility
- HYTE Y70
- HYTE Y70 Touch Infinite
- Pump Compatibility: D5 / VPP format
Technical Specifications
- Dimensions: 403.40 x 230.00 x 82.30mm
- Maximum Filling Volume: 372ml
- Cover Material: Aluminum (AlMg0.7Si)
- Connections: 8x G1/4"
- Additional Ports: 1x Fill Port, 1x Drain Port
- Connection Material: Brass (CuZn39Pb3)
- Maximum G1/4" Thread Torque: 1.00 Nm
- Operating Temperature: -20°C to 60°C
- Maximum Tested Pressure: 2.0 Bar
- Recommended Working Pressure: 0 to 1.0 Bar
- Pump Compatibility: D5 / VPP
- LED Count: 11
- LED Voltage: 5V DC
- LED Power: 3.3W
- aRGB Connection: 3-Pin JST + 5V
Please Note:The distro plate is designed specifically for the HYTE Y70 and Y70 Touch Infinite cases.
Additional Information
| Manufacturer | Alphacool |
|---|---|
| Overall Dimensions | 403.40 x 230.00 x 82.30 |
| Color | Black |
| Reservoir Size | 372ml |
| Reservoir Type | Other |
| Tube Diameter | N/A |
| Number of Ports | 10x G1/4 |
| Pump Included | No |
| Material | Acrylic |
| Pump Compatibility | D5/VPP |
| Included | 1x Apex Distro Plate 2x G1/4" Plug 1x Plug tool 1x ARGB Adapter |
