Details

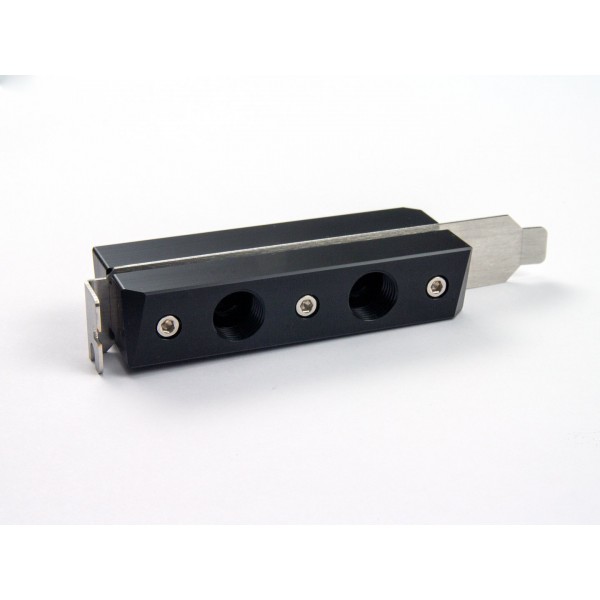

A PCI slot bracket that takes two water lines through the back of the case, so you can connect external components like a MO-RA radiator to your internal cooling loop. The Watercool PCI Slot Pass-Through Bracket (50601) has two G1/4 ports on each side.
Properties
- For
- External radiator to internal loop
- Ports
- 2x G1/4 inside, 2x G1/4 outside
- Fits
- One PCI slot, ATX specifications
- Seals
- Rubber o-rings
Through the slot, no case modifications
This simple pass-through bracket sits in a PCI slot and follows ATX specifications. You do not need to make any modifications to your case, and your external components connect safely through the slot.
Ports and flow
There are two standardized G1/4 ports on each side of the bracket. These are compatible with all usual fittings and with quick disconnects that have a male G1/4 thread. The channels inside the bracket provide a very high diameter, which Watercool says means it won't restrict the flow rate at all. Watercool adds that perfectly adapted wall strength and high-quality rubber o-rings make it completely leak free.
What the loop needs
With ports on both sides it takes four fittings, two inside the case and two outside. The external radiator itself can be a MO-RA IV, such as the MO-RA IV 400 - White. Other brackets of this kind are in our PCI Slot Fittings category.
In the box
- 1x PCI Slot Pass Through
