Details

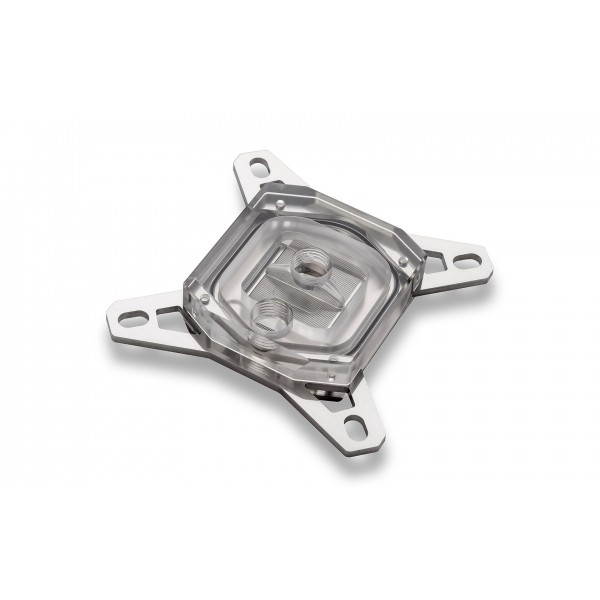

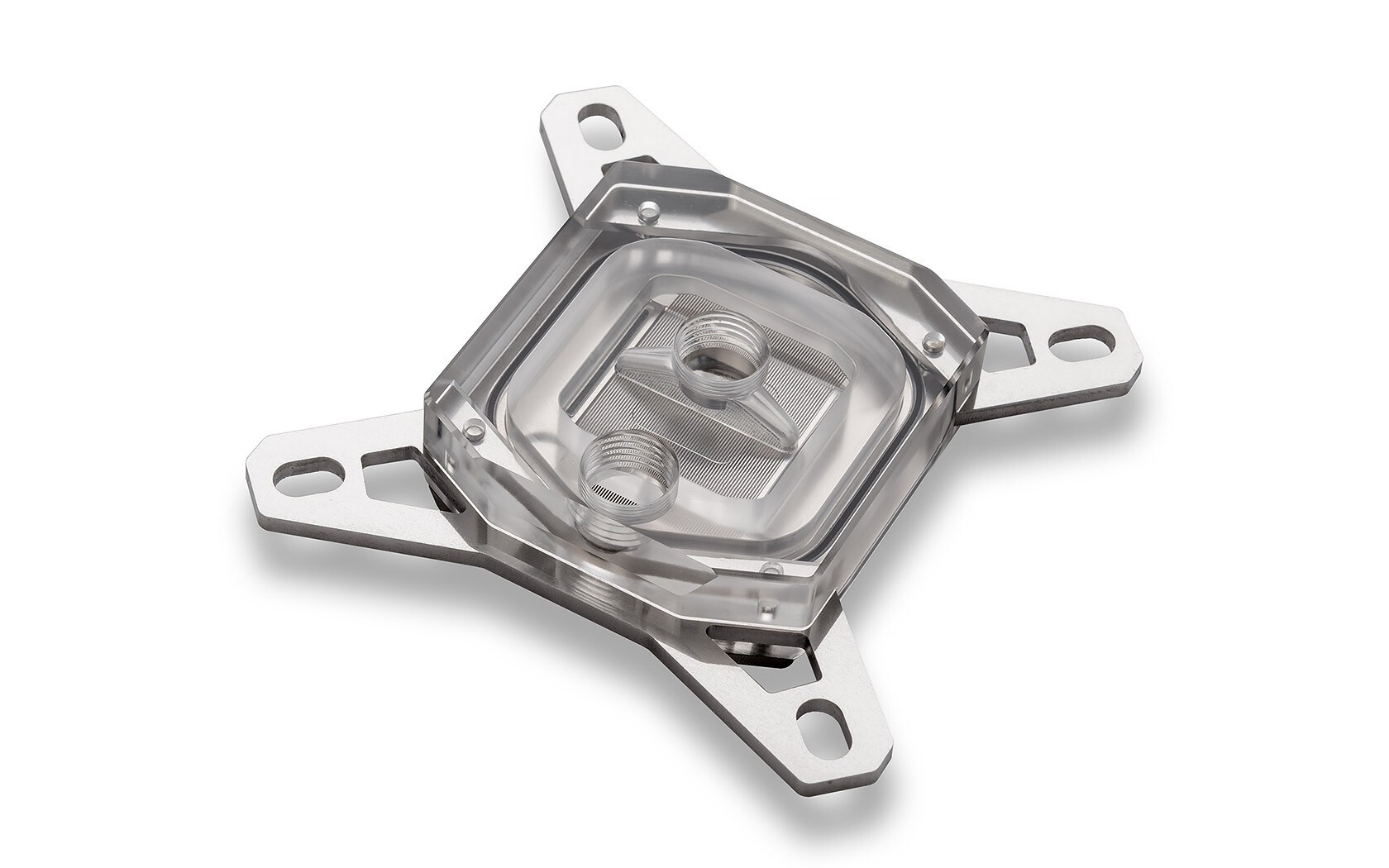

A CPU water block for Intel LGA 1150, 1151, 1155, 1156, 1200, 1700 and 1851 with a clear, plane acrylic top (PLEXIGLAS® GS) and a nickel-plated copper base, in the PRO version. The Watercool HEATKILLER IV PRO (INTEL LGA 1X00) ACRYL HWLuxx Edition mounts tool-free with Watercool's Easy-Mount system and takes connection types up to 19 mm.
Properties
- Sockets
- Intel LGA 1150, 1151, 1155, 1156, 1200, 1700, 1851
- Top
- PLEXIGLAS GS acrylic (PMMA), clear
- Base
- Nickel-plated copper
- Ports
- 2x G1/4, 25 mm apart
- Size
- 66 x 59 x 17 mm
The HEATKILLER IV series
Watercool counts its HEATKILLER® CPU series water coolers among the best-known and most powerful processor water coolers in the world, and among the best performing and most popular CPU blocks on the market. Since its presentation in 2001, the model series has been constantly expanded and, in Watercool's word, perfected. The HEATKILLER® IV represents the most comprehensive and latest development, the most recent iteration of the franchise. Against the previous model it brings:
- Up to 3 °C better temperatures and cooling performance compared to its predecessor
- More flow thanks to the larger nozzle and collecting channel, resulting in fewer blockages (less clogging)
- The tool-free Easy-Mount system (EasyMount)
- Extra large connections and fittings, thanks to 25 mm spacing of the ports
New cooling structure and optimized flow
The cooling structure, or cooling engine, underwent the biggest overhaul of all developments. Watercool has given the cooler significantly finer, thinner fins to ensure a larger area and thus better heat dissipation. It made sure to design the slats in such a way that the flow does not suffer.
Compared to its predecessor, the separate nozzle plate (jet plate) is dispensed with: its mechanics are integrated directly into the lid. Watercool writes that the novel design "allowed us to increase performance, improve flow and optimize reliability".
Easy-Mount, top workmanship, Made in Germany
To make assembly as easy as possible, Watercool has developed the Easy-Mount system. This means that, after initial assembly, the cooler can be assembled or dismantled at any time without tools. The mounting system is enhanced by a fixed stop on the mounting bracket. Incorrect assembly is therefore virtually impossible. Tighten the studs and knurled nuts evenly and crosswise: the contact pressure then follows the CPU maker's specifications.
But the design should also correspond to a product from Watercool. Watercool says its Heatkiller IV cooler is the result of the best processing technology, garnished with the finest materials. In order to present the opulent design in the best possible way, it took customers' wishes into account and considered connection types with up to 19 mm.
The production takes place with the greatest care in Watercool's ultra-modern CNC machine park in Waren-Müritz, Germany. Many work steps are carried out by hand, and each product is brought to perfection, as Watercool puts it, according to the four-eye principle: Made in Germany as you would imagine.
What the loop and an LGA1700 build need
The two G1/4 connection threads take two fittings. For mounting on the LGA1700 socket Watercool writes "we strongly recommend one of the available backplates", due to the socket problem (bending). They are the HEATKILLER IV Backplate INTEL 1700 (10014) or the HEATKILLER LGA1700 HEAVY Backplate (10016). On AM4 or AM5? We have the AMD version here, the HEATKILLER IV PRO (AMD, AM4, AM5 ready) ACRYL, HWLuxx Edition. More blocks for these Intel sockets are in our Intel CPU blocks category.
Technical data
| Material top part | PLEXIGLAS® GS (PMMA) |
| Material base plate | Copper, nickel-plated |
| Material brackets and inlay | Stainless steel, polished |
| Material EasyMountSystem | Stainless steel |
| Dimensions cooler (L x W x H) | 66 x 59 x 17 mm |
| Seals | NBR 70 |
| Connection thread | 2x G1/4 inch (DIN ISO 228-1) |
| Distance between the connection threads | 25 mm |
| Temperature resistant to | 95 °C (PRO) |
| Socket compatibility INTEL | 1150, 1151, 1155, 1156, 1200, 1700 and 1851 |
Notes
- Watercool's manual has a page on the orientation of the block on the CPU; read it before you mount.
- A metal washer belongs between spring and mounting bracket on every socket, and a plastic washer between stud and mainboard.
In the box
- HEATKILLER® IV PRO (INTEL processor) ACRYLIC HWLuxx Edition
- mounting material
- mounting instructions
Watercool's assembly instructions cover every HEATKILLER IV CPU block, with the installation on each Intel socket with and without a backplate.
