Details

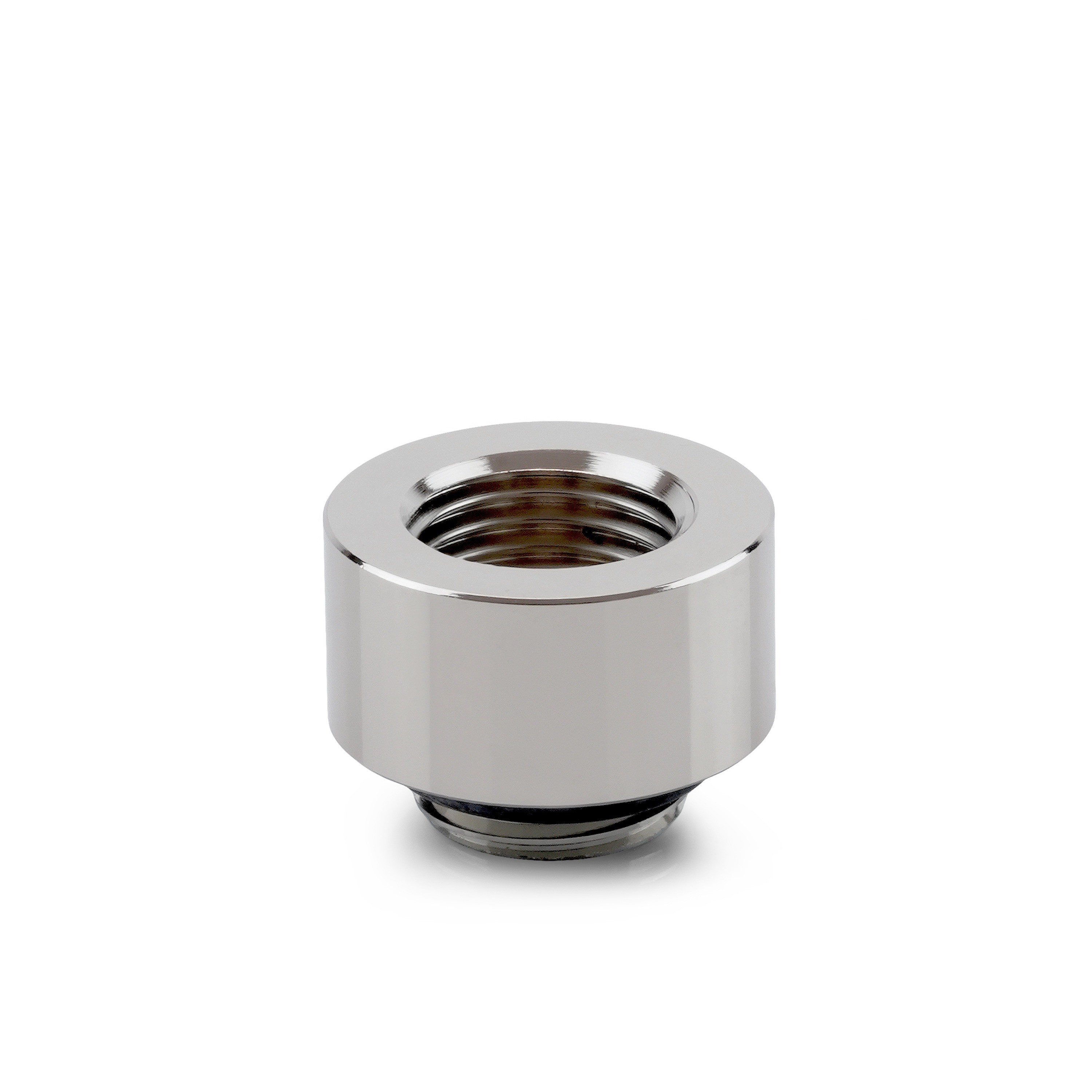

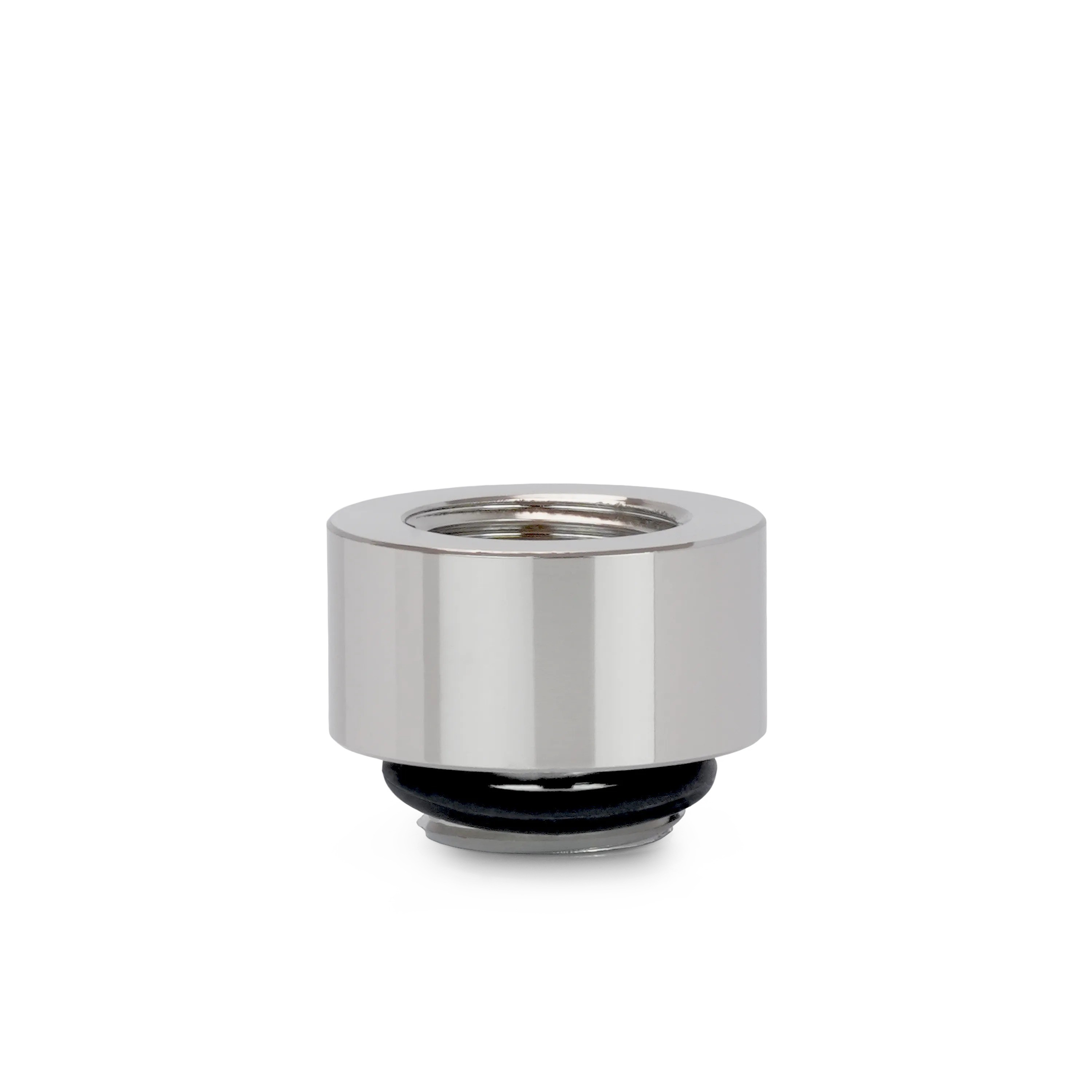

Thermal Grizzly's DeltaMate 10mm Male to Female Extender Fitting (MF10) in Gloss Nickel is a fixed length extension fitting. It is installed between a water-cooling component's port and the fitting, increasing the spacing by 10 mm. The same extender comes in black and matte nickel.
Properties
- Added spacing
- 10 mm, fixed length
- Threads
- G1/4" male to G1/4" female
- Material
- Brass, glossy nickel plating
- O-rings
- EPDM
- Install
- 8mm hex key
- Thread depth
- 4.5 mm maximum

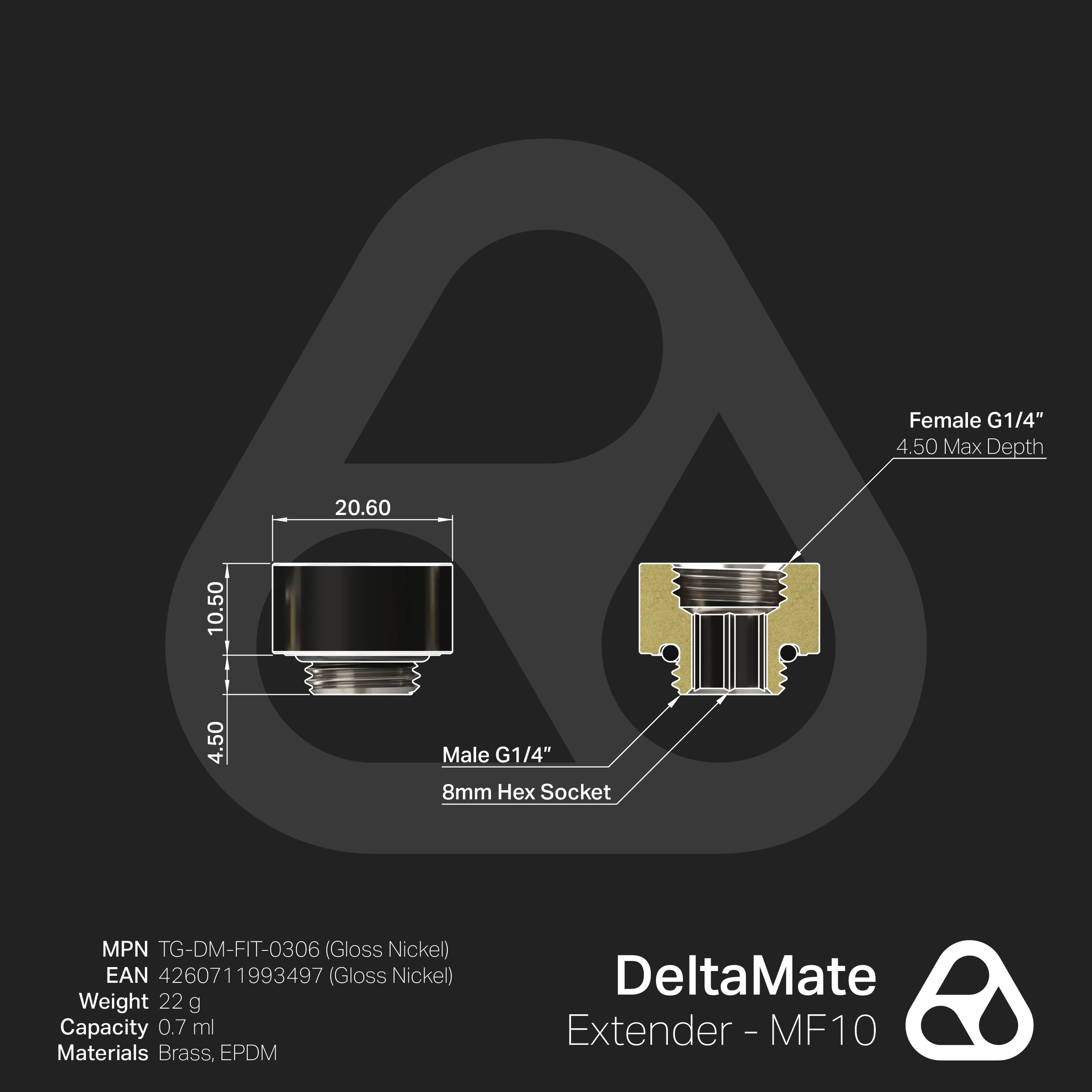

Threads and spacing

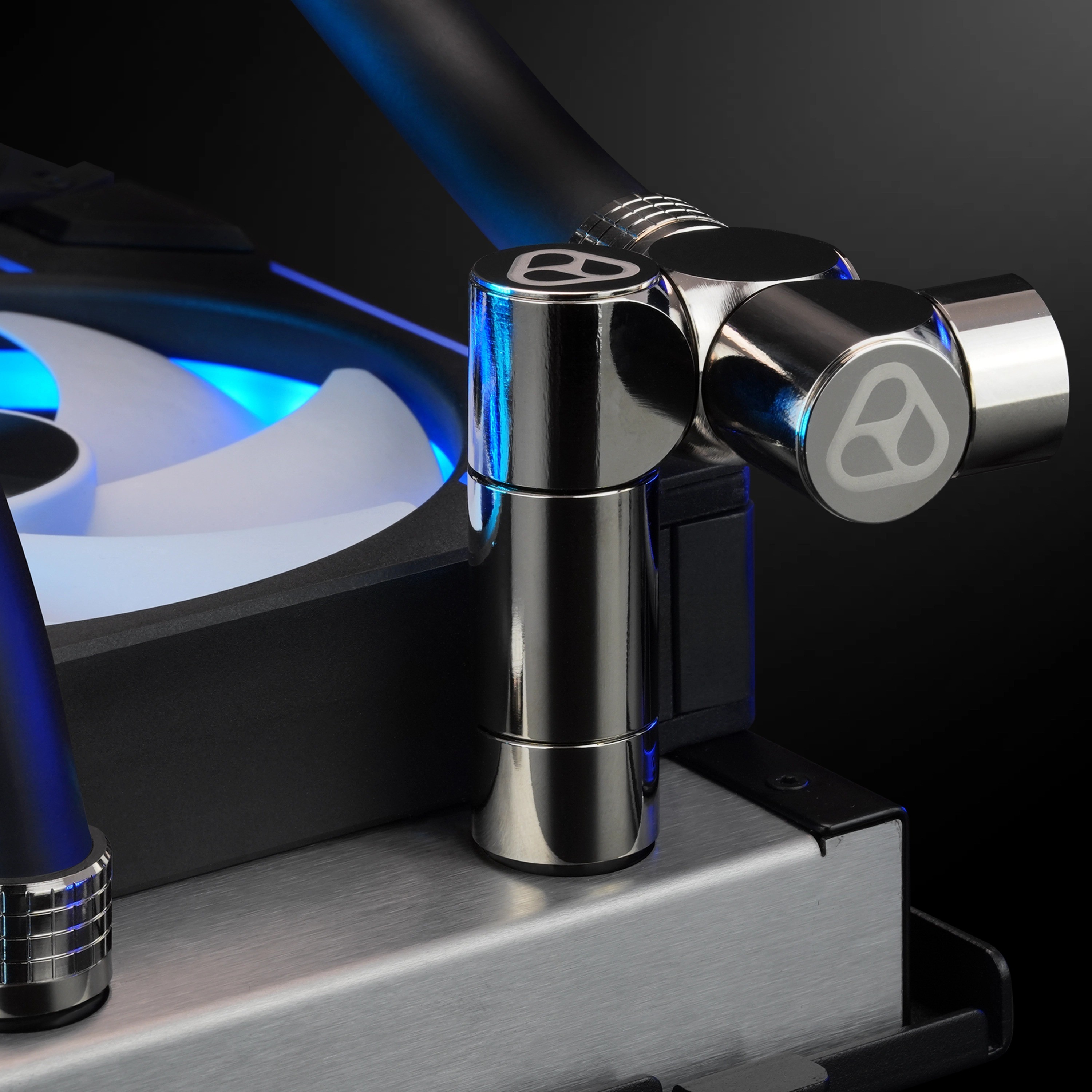

The MF10 features one G1/4" male thread and one G1/4" female thread. It is a practical way to increase the distance between ports and fittings by a set 10mm. Combined with a DeltaMate Rotary, it can be used to create a direct replacement for conventional rotary fittings. Note the maximum thread depth: 4.5mm!
General information
DeltaMate Extender Fittings are the water cooling connectors Thermal Grizzly designed for the individual components of a custom water cooling loop. As expected from Thermal Grizzly quality, the extender is precisely machined from brass. Brass is an alloy of copper and zinc. It offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper. The sealing rings (O-rings) are made from EPDM (ethylene propylene diene rubber), which is highly elastic and resistant to ozone and UV radiation. The extender is finished with a glossy nickel plating that's both premium in appearance, in Thermal Grizzly's words, and easy to clean.
Installation
The robust design allows for installation using an 8 mm hex key. Every DeltaMate fitting has the same uniform, consistent outer diameter, which ensures completely seamless integration of the extender with all the other fittings used in a loop.
In the box
- 1x DeltaMate MF10 extender fitting, gloss nickel
Thermal Grizzly's data sheet for the DeltaMate fittings is a PDF.
