Details

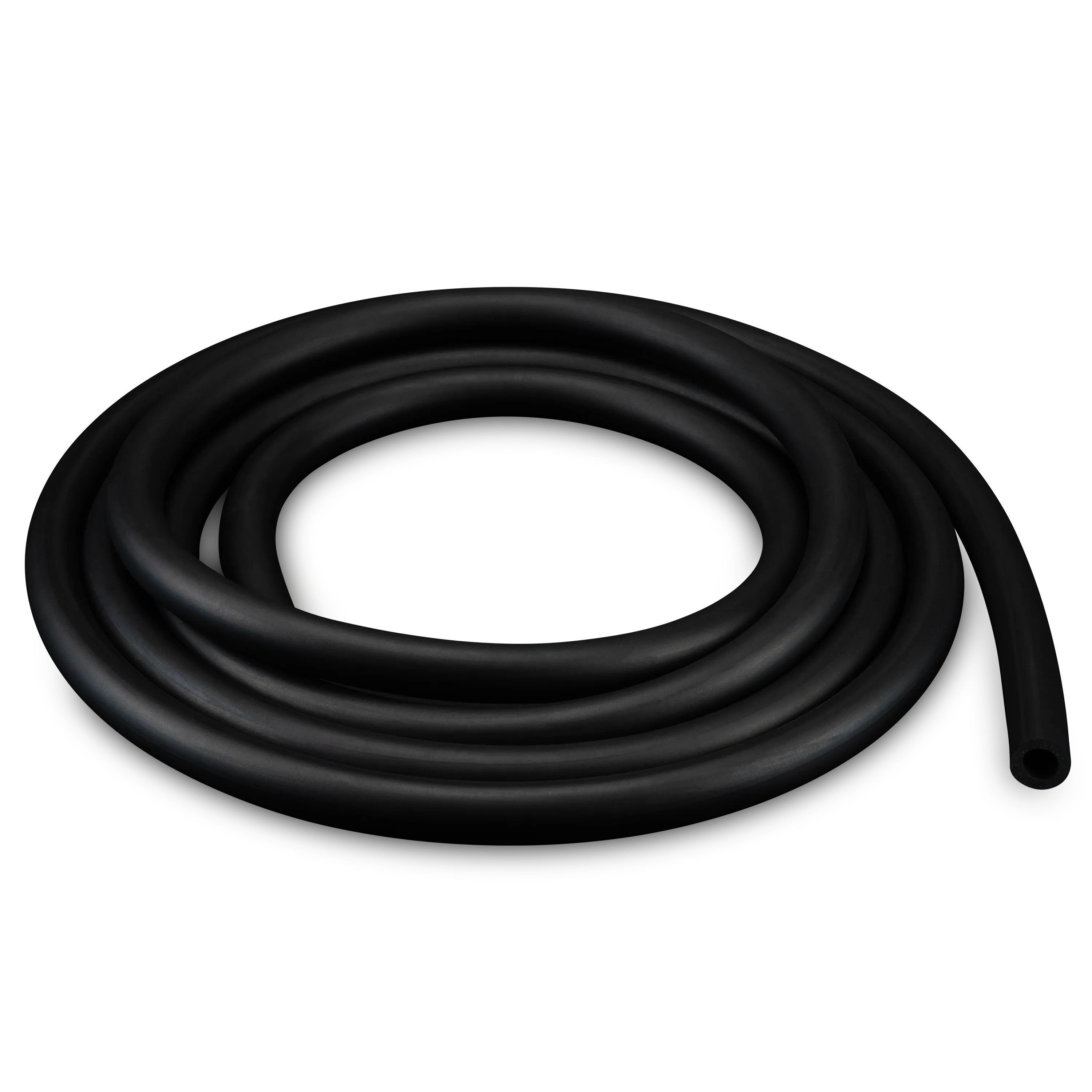

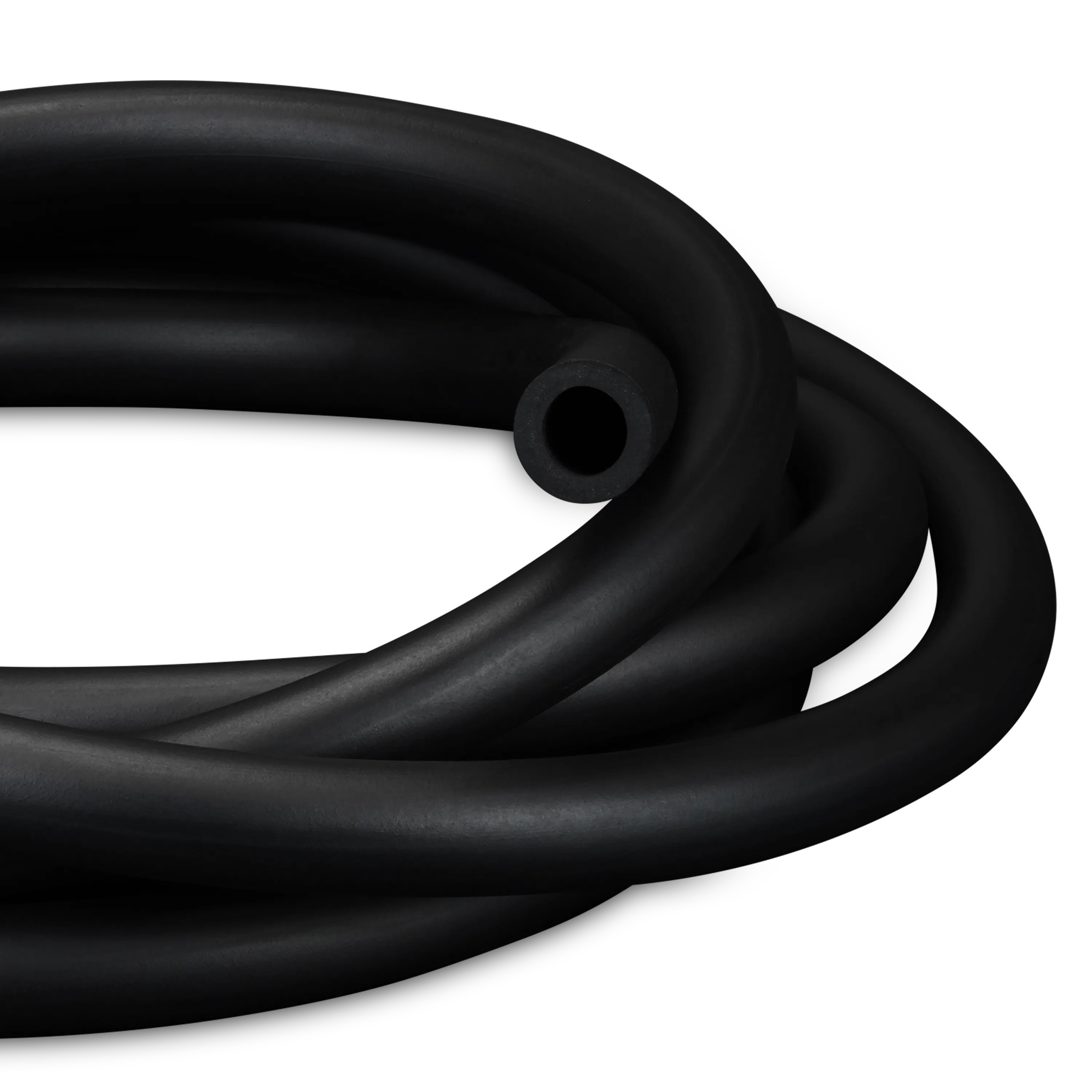

Thermal Grizzly's DeltaMate Soft Tube - ST16 EPDM is flexible black tubing for PC water-cooling loops. The tubes feature a 10 mm inner diameter and a 16 mm outer diameter. For a smaller outer diameter there is the 10/13 mm version.
Properties
- Size
- 10 mm inner diameter, 16 mm outer diameter (10/16 mm)
- Length
- 3 m, one piece
- Material
- EPDM 65 rubber, black
- Operating temperature
- -30 °C to +110 °C
- Weight
- 428 g, 609 g boxed
The material
DeltaMate EPDM soft tubes are made from what Thermal Grizzly calls an exceptionally high-quality EPDM (ethylene-propylene-diene rubber), manufactured to industrial standards. The rubber is ozone- and UV-resistant and also offers high resistance to chemical substances (acids and alkalis). Thanks to its excellent temperature resistance, it can be used in continuous operation within a range of -30 °C to +110 °C, and it retains high elasticity even at low temperatures. That adds up to high chemical, thermal, and UV resistance. The EPDM tubes are compatible with all common PC water-cooling fluids.
Size and fit

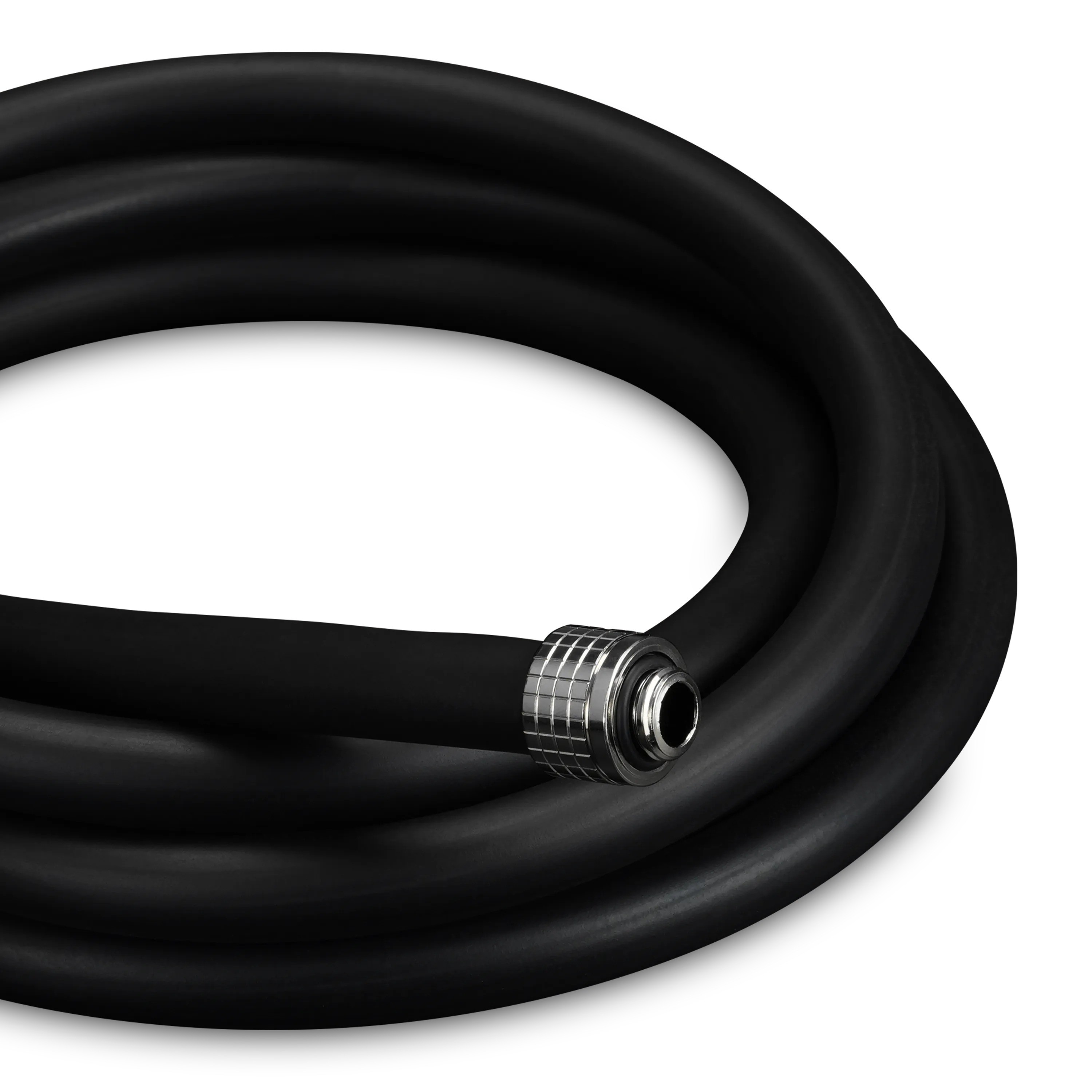

According to Thermal Grizzly's data sheet, the increased wall thickness of this size allows for tight bends without kinking. The 10/13 mm tube is the one with the small outer diameter, which allows a space-saving installation even in very confined spaces. Thermal Grizzly keeps the tubes subject to strict quality control with regard to tolerances of the inner and outer diameters, and they are optimized for use with TG fittings. Each end of a run takes one compression fitting, so use the DeltaMate ST16 in black or matte nickel. To provide maximum flexibility during use, the tubes are shipped in one 3 m long piece.
In the box
- 1x DeltaMate Soft Tube - EPDM Black, 3 m
Thermal Grizzly's data sheet for the DeltaMate soft tubes is a PDF.
