Details
Thermal Grizzly's DeltaMate 16/10mm SoftTube Compression Fitting ST16 in Matt Nickel, 6 Pack, is a G1/4" fitting for soft tubes with a 10/16 mm diameter. The same 6 pack comes in black, and the fitting is also sold one at a time.
Properties
- Amount
- 6 pack
- Tubing
- Soft tube, 10 mm inner / 16 mm outer diameter

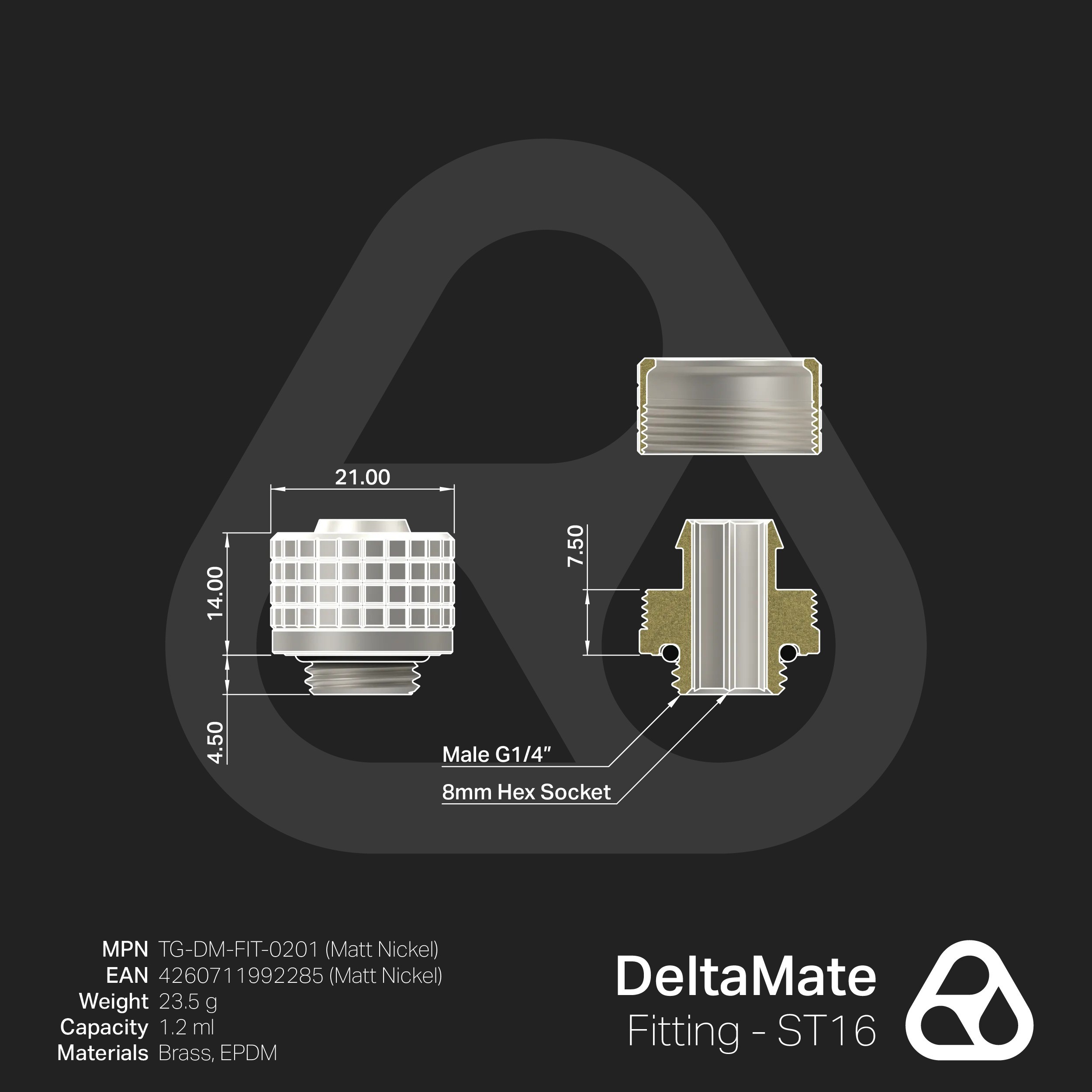

- Thread
- G1/4" male
- Material
- Brass, matt nickel finish, EPDM O-rings
- Install
- 8mm hex key
- Weight
- 6 x 24 g, 186 g boxed
General information
DeltaMate fittings are Thermal Grizzly's water cooling connectors, designed for the individual components of a custom water cooling loop. They are precisely machined from brass, as expected from Thermal Grizzly quality. As an alloy of copper and zinc, brass is harder and more corrosion-resistant than copper, while it offers the advantage of being anodically compatible with other metals. The sealing rings (O-rings) are made from EPDM (ethylene propylene diene rubber), a highly elastic material which is resistant to ozone and UV radiation. The fittings are coated with a matt nickel finish, which Thermal Grizzly calls a premium finish that is also easy to clean.
Tube installation
The ST16 fitting in matt nickel is suitable for soft tubes made of flexible plastics. A single tapered barb allows straightforward installation for a wide range of flexible tubes. In combination with it, a knurled compression ring securely grips the tubing with high retention force, and that allows for easy and secure tube installation. The fitting is only for tubes with a 10 mm inner diameter and a 16 mm outer diameter. For 13/10 mm soft tubing use the ST13 6 pack.

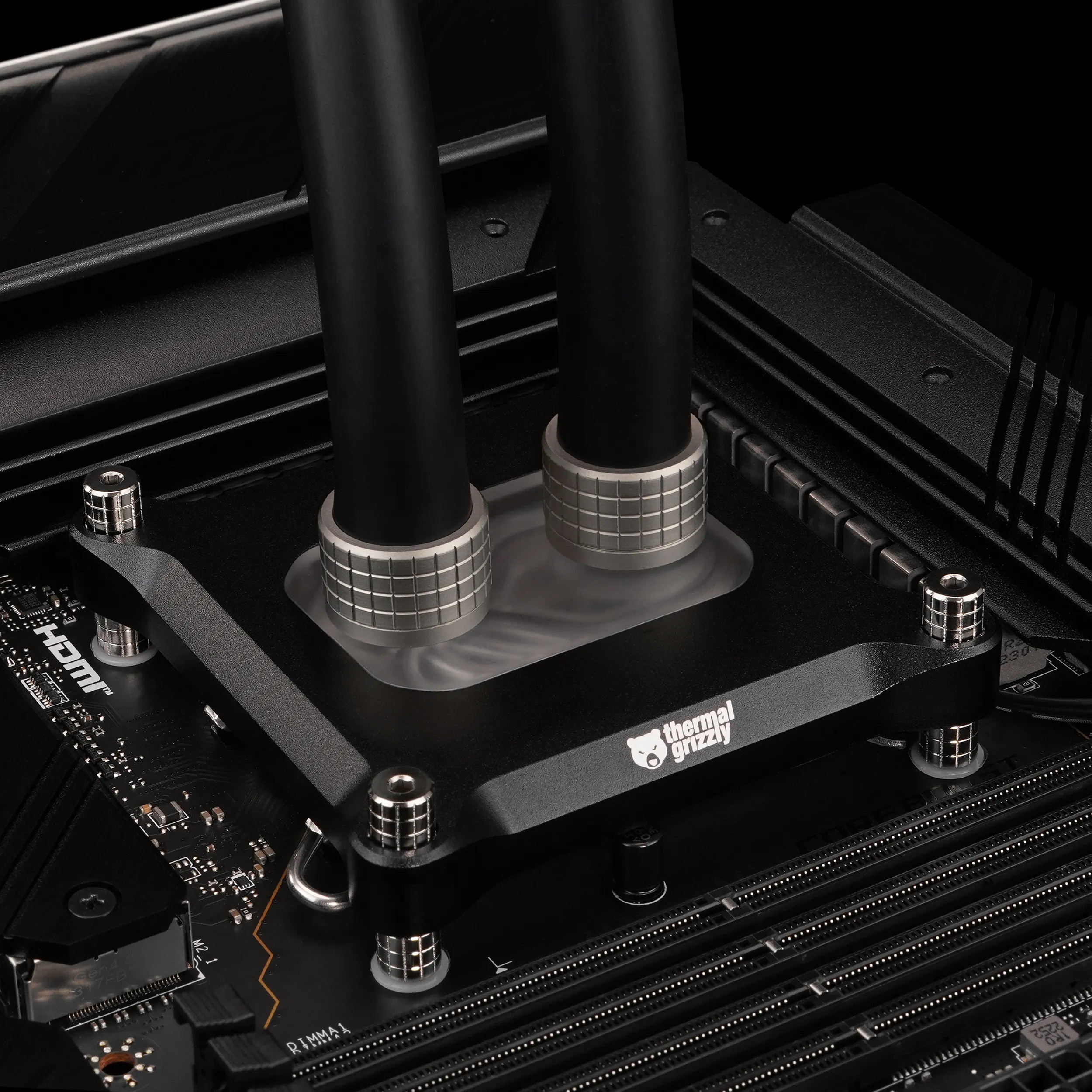

Fit in the loop
The robust design of the DeltaMate fittings allows them to be installed using an 8 mm hex key. The compact overall dimensions facilitate installation in almost any watercooling loop. The outer diameter is uniform and consistent with all DeltaMate fittings, such as the 90° rotary and the MF14 extender, which ensures completely seamless integration of the individual components. A part with two ports takes two fittings, so the 6 pack covers three such parts.
In the box

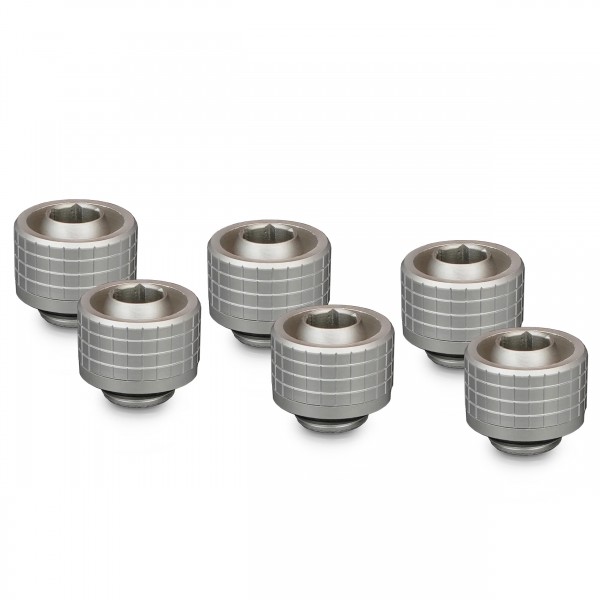

- 6x DeltaMate ST16 16/10mm SoftTube compression fittings, matt nickel
Thermal Grizzly's data sheet for the DeltaMate fittings is a PDF.
