Details

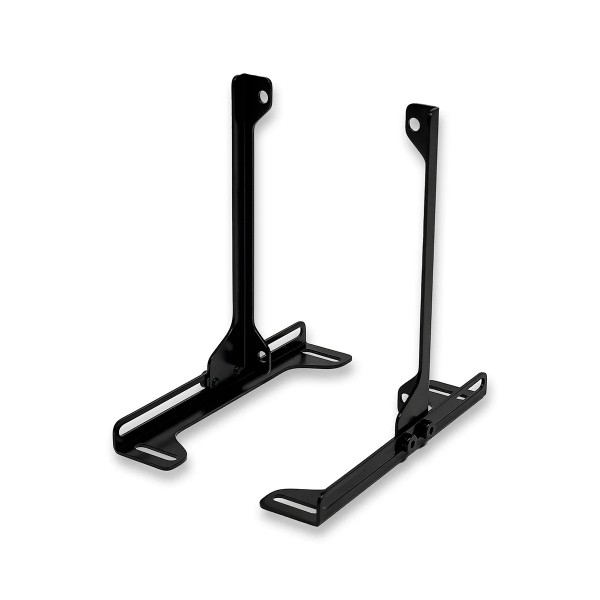

The Stealkey Customs SC-UNI Angled Bracket 120/120 mm is a sturdy bracket set of 1.5 mm coated steel that mounts a Stealkey ResPro pump combo reservoir upright on 120 mm fan mounting holes (105 mm hole spacing). A rail system lets you shift the reservoir by about 52 mm in each direction.
Properties
- Type
- Angled mounting bracket for reservoirs
- Fan mount
- 120 mm (105 mm hole spacing)
- Adjustment
- About 52 mm in each direction
- Material
- Steel, 1.5 mm, coated
- Color
- Black
- Parts
- Left, right and base bracket
ResPro reservoirs upright on a fan mount
Stealkey developed the bracket to mount its ResPro pump combo reservoirs vertically on 120 mm fan holes. That opens mounting places the case itself does not offer, and Stealkey says it can improve the airflow inside the case at the same time.
Rails for the right position
With the rail system, the mounted reservoir can be moved about 52 mm in any direction, so you can use the space you have and line up the ports with your tube runs.
Long side or short side
The bracket is built so that either the long or the short side of the reservoir can face it, which gives many more ways to place and orient the reservoir.
Not only for reservoirs
Although it was made for the ResPro series, Stealkey points out that the bracket is not limited to it. With some creativity it can also hold radiators or other hardware with 120 mm fan mounting holes, from compact water cooling builds to elaborate show PCs.
Technical data
| Article number | 12020 |
| Fan mount | 120 mm (105 mm hole spacing) |
| Adjustment range | About 52 mm in each direction |
| Material | Steel, 1.5 mm thick, coated |
| Color | Black |
| Made for | Stealkey ResPro pump combo reservoirs |
In the box
- 1x SC-UNI Angled Bracket 120/120 mm (left, right and base bracket)
- 8x M4 x 10 mm screws
- 4x M4 x 4 mm screws
- 4x M4 nuts
- 4x M4 washers
- 4x 2 mm acetal spacers
- 1x 2.5 mm hex key
