Details
The Stealkey Customs SK-UNI Mounting Bracket 28 mm is a pair of black steel brackets that hold a Stealkey distro plate or reservoir 28 mm in front of any 120 mm fan mount (105 mm hole spacing). The gap leaves room for a DDC pump on the back of the plate and lets air flow freely through the fan or radiator behind it.
Properties
- Type
- Mounting bracket pair for distro plates and reservoirs
- Fan mount
- 120 mm (105 mm hole spacing)
- Distance
- 28 mm
- Material
- Steel, 1.5 mm, black painted
- Color
- Black
- Pieces in the pack
- 1 pair
Mount in front of a fan, grill or radiator
The brackets fix all SK-UNI distro plates and reservoirs and the CubeTube Distroplates to the 120 mm mounting holes of a fan grill, radiator or fan. The plate sits on the brackets, and the brackets are screwed through the fan holes.
Room for a DDC pump
The 28 mm distance is enough for a DDC pump on the back of the plate, so distro plates and reservoirs with or without a pump can be fitted in front of a fan grill, radiator or fan. Stealkey adds that the gap gives a larger, unhindered airflow through the case.
Folded steel
Each bracket is folded from 1.5 mm steel and painted black, which Stealkey says gives a stable mount.
Compatible Stealkey parts
- SK-UNI 80 Pump Combo - Acrylic
- SK-UNI 120 Pump Combo - Acrylic
- SK-UNI 240 Pump Combo - Acrylic
- SK-UNI 120D Distroplate - Acrylic Black Edition
- SK-UNI 120D Distroplate - Acrylic White Edition
- SK-UNI 360D Distroplate - Acrylic Black Edition
- SK-Crossflow Distroplate - Acrylic - Lian Li O11D XL EVO
- SK-120 Light Distroplate 120 mm - Acrylic D-RGB
- Stealkey CubeTube Distroplate 240 mm - Acrylic
- Stealkey CubeTube Distroplate 360 mm - Acrylic
Technical data
| Article number | SW10135 |
| Dimensions per bracket (W x H x D) | 115 x 28 x 13 mm |
| Fan mount | 120 mm (105 mm hole spacing) |
| Distance to the mount | 28 mm |
| Material | Steel, 1.5 mm thick, folded |
| Finish | Black paint |
| Color | Black |
Notes
- For CubeTube Distroplates that you want to mount vertically or horizontally with adjustable position, Stealkey also makes the SK-FLEX Mounting Bracket 28 mm with rails.
In the box

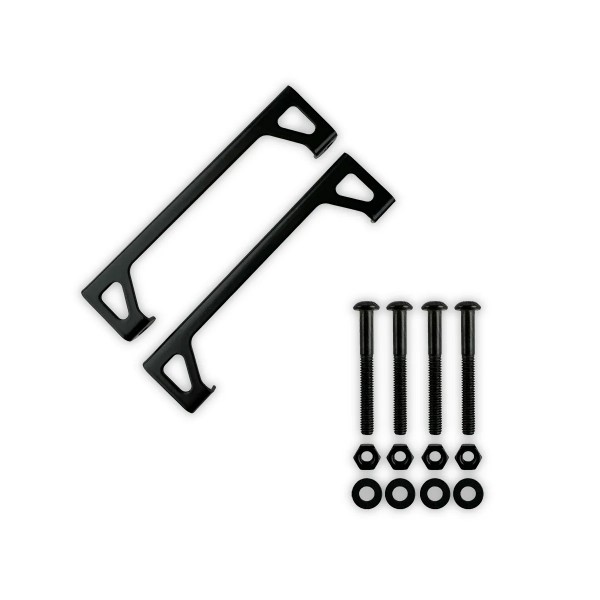

- 1x pair of SK-UNI mounting brackets 28 mm (120 mm fan)
- 4x M4 washers
- 4x M4 x 35 mm mounting screws
- 4x M4 x 6 mm mounting screws
- 4x M4 nuts
