Details

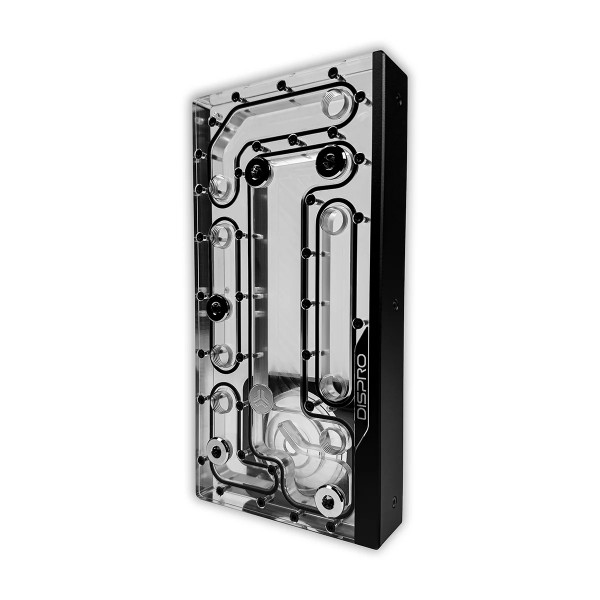

The Stealkey Customs SC DisPro 240R is a 240 mm distroplate that combines the reservoir, the coolant routing and the pump mount in one CNC-milled acrylic plate. It takes a D5 or a DDC pump (not included) on the rear, has 13x G1/4" ports and holds about 150 ml of coolant. Addressable D-RGB lighting behind a black anodized aluminum cover lights the acrylic.
Properties
- Type
- Distroplate with reservoir and pump mount
- Size
- 240 x 120 x 33 mm
- Pump mount
- D5 or DDC, rear (pump not included)
- Ports
- 13x G1/4"
- Volume
- approx. 150 ml
- Lighting
- D-RGB, 3-pin 5V
- Color
- Transparent acrylic, black aluminum cover
One hub for the whole loop
The DisPro 240R is the central hub of a custom loop. Its ports are placed so the tubes to the CPU block, the GPU block and the radiators run short and straight, which replaces long tube runs and complicated hard tube bends and makes the installation simpler.
D5 or DDC pump
An integrated universal adapter takes either a D5 or a DDC pump. Stealkey describes the D5 as the choice for high flow and smooth running in large loops, and the DDC as the compact choice where every millimeter counts. In this R version the pump mount sits on the rear of the distroplate, so the pump disappears behind the plate and the front stays clean. Stealkey points builders who want the pump on show at the front to the SC DisPro 240D.
Mounting
The DisPro 240R fits a standard 240 mm (2x 120 mm) fan position and is fixed with four M4 screws through the 120 mm fan hole pattern. Because the pump sits behind the plate, Stealkey recommends its SK-UNI mounting bracket 60 mm for D5 pumps or the SK-UNI mounting bracket 28 mm for DDC pumps (both sold separately) to give the pump room.
D-RGB lighting
The integrated lighting evenly lights the acrylic and the coolant. The addressable D-RGB lighting connects to a 3-pin 5V ARGB header on the motherboard with a 500 mm cable, so it can be synced through the board maker's lighting software, such as ASUS Aura Sync, MSI Mystic Light, ASRock Polychrome Sync or Gigabyte RGB Fusion.
Coolant and care
Stealkey asks for a coolant that is compatible with acrylic, because an unsuitable coolant can damage the acrylic parts; Stealkey keeps a coolant compatibility list on its website. Clean the acrylic only with a microfiber cloth and never with alcohol-based cleaners or solvents, which cause stress cracks. Stealkey recommends rinsing the part before installation to remove any last machining residues.
Technical data
| Model | SC DisPro 240R (19001) |
| Type | Distroplate, reservoir and pump mount |
| Dimensions (W x H x D) | 240 x 120 x 33 mm |
| Reservoir volume | approx. 150 ml (chamber and channels) |
| Ports | 13x G1/4" |
| Pump mount | D5 or DDC, rear, universal adapter |
| Material | Acrylic, black anodized aluminum cover |
| Color | Transparent, black |
| D-RGB cable | 500 mm |
| D-RGB connector | 3-pin 5V ARGB |
| Mounting | 4x M4 screws, 120 mm fan hole pattern |
| Made in | Germany, CNC-milled and hand-assembled |
Notes
- The D5 or DDC pump is not included.
- Fits any case with a 120 mm fan hole pattern on a 240 mm (2x 120 mm) fan position.
- D5 and DDC pumps are water-lubricated and must never run dry, or the bearing can be damaged for good.
- Leak-test the loop before you power the rest of the system.
In the box
- 1x Stealkey Customs SC DisPro 240R Distroplate D5/DDC D-RGB
- 4x M4 mounting screws
- 5x G1/4 plugs
