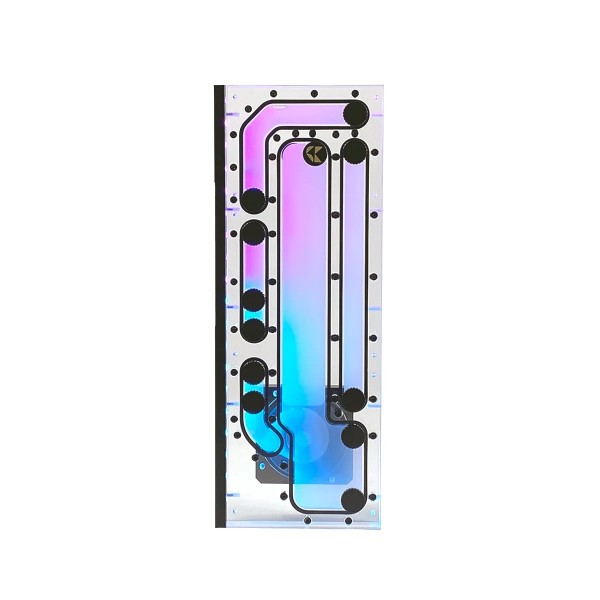

Stealkey Customs Crossflow Distroplate for Lian Li PC-O11D EVO XL D-RGB (SW10032)

The Stealkey SK-Crossflow Distroplate is a reservoir, distro plate and pump mount in one, designed for the Lian Li O11D, O11D XL and O11D EVO case series and usable in many other cases. It has 13x G1/4" ports, holds 215 ml, takes a D5 or a DDC pump (not included), and its D-RGB panel can go on the left or the right side.

Properties

Type

Distroplate with reservoir and pump mount

Made for

Lian Li O11D, O11D XL, O11D EVO

Size

121 x 327 x 33 mm

Ports

13x G1/4"

Volume

215 ml

Pump mount

D5 or DDC (pump not included)

Lighting

D-RGB panel, left or right

Color

Black and transparent

For the O11D series and beyond

Stealkey designed the Crossflow as a made-to-measure water cooling solution for the Lian Li O11D, O11D XL and O11D EVO. With 13 ports for the GPU and the CPU it supports a wide range of hardware and radiator layouts, so it also works in many cases from other makers that have a 120 x 360 mm fan bracket.

Mounting on the fan bracket

The back has 10 mounting holes with M3 threads on the standard 120 mm fan pattern; eight M3 screws are included, and not every hole needs a screw. When the plate sits in front of a radiator or fan, spacers (sold separately) give the D5 or DDC pump about 58 mm of room; the spacers are fixed with the fan screws together with the plate.

Ports and layout

Two GPU connection options give freedom in choosing the slot on the motherboard and make hard tube layouts easier. The Crossflow connects two radiators (one at the top and one at the bottom), the CPU and the GPU, with the CPU and the GPU in parallel. Use the correct inlets and outlets for each, and close unused ports with stop fittings.

D5 or DDC pump

The integrated pump adapter takes a D5 or a DDC pump, so you choose the pump yourself.

D-RGB on either side

The black anodized aluminum strip with the D-RGB lighting can be fitted on the left or the right side of the Crossflow, whichever suits the build. It connects to an ARGB header on the motherboard with a 3-pin, 500 mm cable.

Coolant and care

Stealkey asks for a coolant that is compatible with acrylic, because an unsuitable coolant can damage the acrylic parts; Stealkey keeps a coolant compatibility list on its website. Clean the acrylic only with a microfiber cloth and never with alcohol-based cleaners or solvents, which cause stress cracks. Stealkey recommends rinsing the part before installation to remove any last machining residues.

Technical data

Notes

• Fits any case with a 120 x 360 mm fan bracket. Check the dimensions against your hardware before you order.
• The D5 or DDC pump and the spacers are not included.
• D5 and DDC pumps are water-lubricated and must never run dry, or the bearing can be damaged for good.
• Screw fittings into the acrylic hand-tight only and do not use a wrench; an overtightened fitting can crack the acrylic and leak.
• Leak-test the loop before you power the rest of the system; Stealkey says to test with no more than 0.5 bar.

In the box

• 1x Crossflow Distroplate with D-RGB
• 8x M3 mounting screws

Stealkey's installation manual is a PDF.
