Details

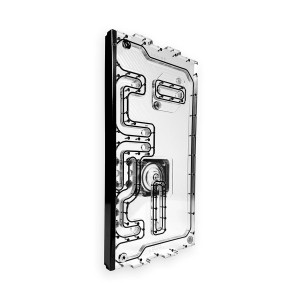

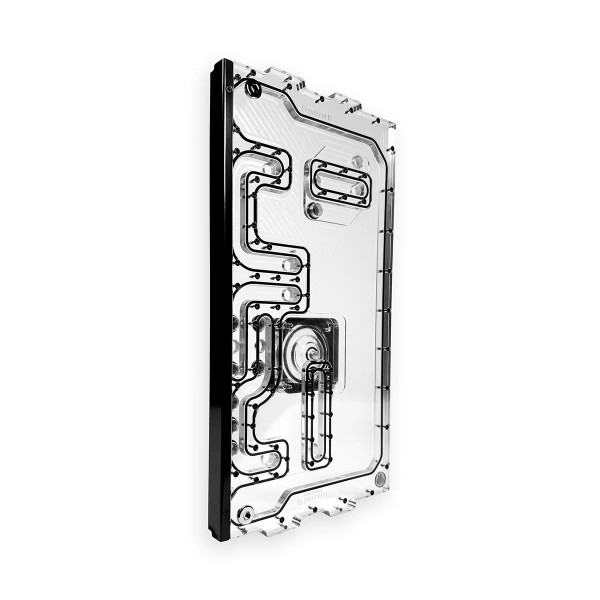

The Stealkey SK-Crosscool III Lian Li O11 DYNAMIC EVO RGB Distroplate D-RGB is a distro plate, reservoir and pump mount in one for the front of the Lian Li O11 Dynamic EVO RGB case. It has 20x G1/4" ports, holds 300 ml, connects up to three 360 mm radiators and takes a D5 or a DDC pump (not included).
Properties
- Type
- Distroplate with reservoir and pump mount
- Fits
- Lian Li O11 Dynamic EVO RGB
- Size
- 216 x 419 x 51 mm
- Ports
- 20x G1/4"
- Volume
- 300 ml
- Pump mount
- D5 or DDC (pump not included)
- Radiators
- up to 3x 360 mm
- Color
- Black and transparent
Made for the O11 Dynamic EVO RGB
The Crosscool III mounts with four M3 x 16 mm Torx screws on the front of the case, directly behind the front glass, two at the top and two at the bottom. The screws go into mounting holes the case already has, which makes the installation easy.
Reverse mode
The Lian Li O11 Dynamic EVO RGB can be mirrored, so the motherboard and the graphics card are seen through the right side panel instead of the left. The Crosscool III follows that inverted layout; the fill and drain ports simply swap roles.
Straight to the GPU and CPU
Nine ports serve a vertically or horizontally installed GPU block, six for the inlet and three for the outlet. Their spacing lets the GPU block connect in a straight line whichever PCIe slot the card is in. Two more ports 28 mm apart connect a CPU block in a straight line.
Three 360 mm radiators
The plate connects up to three 360 mm radiators. With the plate installed, radiators can be up to 48 mm thick at the top, the bottom and the side; at the bottom the radiator ports sit on the plate side for a direct connection without tubes over the fans. Stealkey suggests its SC RadPro L360 H30 radiator.
D5 or DDC pump
A custom adapter on the plate holds the pump. For a Xylem Lowara D5, an Acetal D5 ring goes over the pump and is fixed to the adapter with the four fitted M4 x 20 mm screws (0.3 to 1.5 Nm). A DDC pump is fixed directly to the adapter with its own O-ring and four M4 x 25 mm socket head screws (0.5 to 1.5 Nm), sold separately.
Materials and lighting
Stealkey machines branded acrylic on its own precision machines and assembles the plates with M3 stainless steel screws. Powder-coated sheet steel covers the hand-soldered D-RGB strips on the side, so an even band of light lights the plate and the coolant. It connects to a 3-pin 5V ARGB header with a 500 mm cable.
Coolant and care
Stealkey asks for a coolant that is compatible with acrylic, because an unsuitable coolant can damage the acrylic parts; Stealkey keeps a coolant compatibility list on its website. Clean the acrylic only with a microfiber cloth and never with alcohol-based cleaners or solvents, which cause stress cracks. Stealkey recommends rinsing the part before installation to remove any last machining residues.
Technical data
| Model | SK-Crosscool III Lian Li O11 DYNAMIC EVO RGB Distroplate D-RGB (SW10160) |
| Type | Distroplate, reservoir and pump mount |
| Fits | Lian Li O11 Dynamic EVO RGB only |
| Dimensions (W x H x D) | 216 x 419 x 51 mm |
| Reservoir volume | 300 ml |
| Ports | 20x G1/4" (9 GPU, 2 CPU at 28 mm) |
| Pump mount | D5 or DDC |
| Radiators | up to 3x 360 mm, max. 48 mm thick top, bottom and side |
| Material | Acrylic, plastic, powder-coated steel |
| Color | Black and transparent |
| D-RGB cable | 500 mm |
| D-RGB connector | 3-pin 5V ARGB |
| Mounting | 4x M3 x 16 mm Torx screws into the case mounting holes |
Notes
- Fits only the Lian Li O11 Dynamic EVO RGB.
- The D5 or DDC pump is not included. Screws for a DDC pump (4x M4 x 25 mm) are sold separately.
- D5 and DDC pumps are water-lubricated and must never run dry, or the bearing can be damaged for good.
- Screw fittings into the acrylic hand-tight only; Stealkey gives 0.7 to 1.5 Nm. An overtightened fitting can crack the acrylic and leak.
- Leak-test the loop before you power the rest of the system; Stealkey says to test with no more than 0.5 bar.
In the box
- 1x SK-Crosscool III Lian Li O11 DYNAMIC EVO RGB Distroplate D-RGB
- 4x M3 x 16 mm mounting screws
- 10x G1/4 plugs
Stealkey's installation manual is a PDF.
