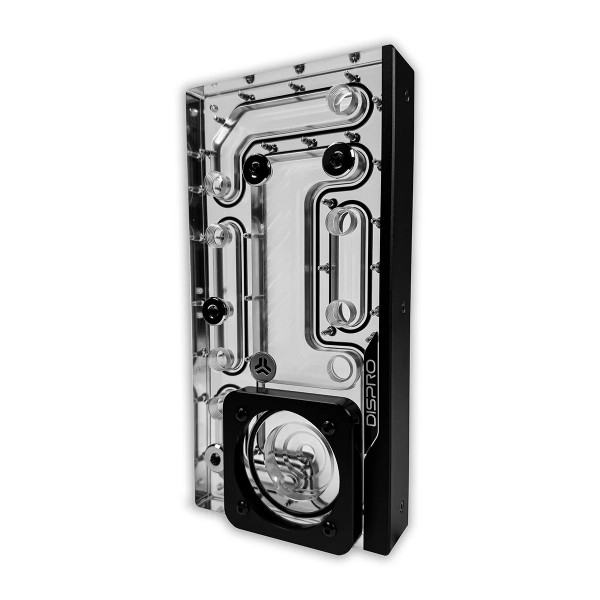

With the SC DisPro 240D Distroplate D5/DCC D-RGB, you eliminate complex tubing runs and create a clean, professional look. This distribution plate perfectly showcases your hardware and makes loop management more efficient than ever before.

Efficient Custom-Loop Management Without Compromise

The SC DisPro 240D serves as the central hub for your cooling system. Thanks to intelligently placed ports, complicated bends are a thing of the past. The result: shorter paths, cleaner lines, and significantly simplified installation – ideal for both PC modding beginners and experienced pros.

Maximum Flexibility: D5 or DDC Pump? You Decide!

Unlike fixed standard solutions, the SC DisPro 240D offers full freedom in pump choice. The distroplate is optimized for both D5 and DDC pumps. In this D-version, the pump mount is intentionally placed on the front for maximum accessibility and visibility.

• D5 Power: For maximum smoothness and high flow rates in large loops.
• DDC Compactness: When every millimeter counts without sacrificing performance.

Planning a different layout? If you prefer an ultra-clean front aesthetic and would rather mount the pump hidden on the rear side, the SC DisPro 240R is the ideal alternative for you.

Brilliant D-RGB Lighting (5V)

Electrify your build – visually! The integrated addressable Digital-RGB lighting (5V) ensures absolutely even illumination of the high-quality acrylic glass. Simply synchronize the effects via your motherboard (Aura Sync, Mystic Light, etc.) and let your coolant shine in the exact colors that match your style.

Technical Highlights at a Glance:

• Optimized Routing: Simplifies tube runs for a perfect clean look.
• Pump Compatibility: Compatible with D5 and DDC pumps (integrated universal adapter).
• Easy Installation: Fits into any standard 240mm fan slot.
• Premium Material: Highly transparent acrylic glass for maximum brilliance.
• D-RGB Header: Standard 3-pin 5V connector for full control.

Technical Specifications - 240D Distroplate

• CNC-machined and hand-assembled in Germany
• Dimensions (W x H x D): 240 x 120 x 33 mm
• Color: Transparent acrylic, black anodized aluminum cover
• Material: Acrylic glass, anodized aluminum
• Reservoir Volume: approx. 150 ml (chamber + channels)
• D-RGB Cable Length: 500 mm
• Ports: 13 x G1/4" ports
• Mounting: 4 x M4 screws for installation in a 120 mm fan slot

Scope of Delivery

• 1x SC DisPro 240D Distroplate D5/DCC D-RGB
• 4x M4 Mounting screws
• 4x G1/4 Plugs
