Details

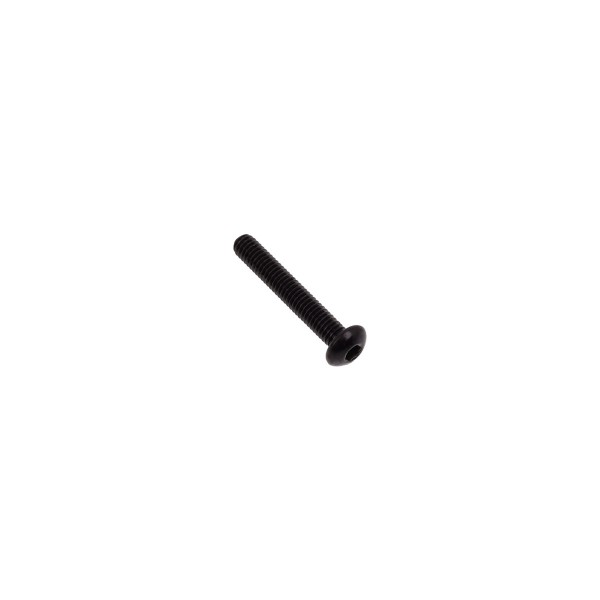

The ModMyMods M4 x 25 Hex Button Head Screw, Black is an M4 button head screw with a hex socket, made of black galvanized steel to DIN 7380. It has 25 mm of thread and is 27 mm long overall, with a low, domed head of 7 mm diameter.
Properties
- Type
- Button head screw, hex socket
- Thread
- M4 x 0.7
- Thread length
- 25 mm
- Total length
- 27 mm
- Material
- Galvanized steel, black
- Color
- Black
- Pieces in the pack
- 1
Fans onto radiators
Most radiators have threaded holes along each fan position, and the fans are held by long screws that go right through the fan frame. This 25 mm screw is sized for 20 mm thick fans and leaves about 5 mm of thread to engage in the radiator. It suits radiators with M4 holes, among them Black Ice, XSPC RS series, Koolance and D-Tek radiators.
Hex socket drive
The hex socket takes a hex key, which grips the screw firmly, so the tool does not slip out and the head does not get chewed up when you tighten it. That makes clean work easy, even in tight spots. The low, rounded button head sits neatly on grills and panels.
Made to DIN
The screw is made to DIN 7380, the standard for hex socket button head screws, so it fits any part with a standard M4 thread.
Check thread and depth first
Radiators and other parts use different threads (M3, M4 and 6-32 are the common ones) and different usable thread depths. Check what your part takes before you choose a size. On a radiator, a screw that is too long can reach the core and puncture a water channel, so always make sure the screw stops short of the fins.
Technical data
| Thread | M4 x 0.7 |
| Thread length | 25 mm |
| Total length | 27 mm |
| Head diameter | 7 mm |
| Drive | Hex socket |
| Quality grade | DIN 7380 |
| Material | Galvanized steel, black |
| Color | Black |
Notes
- This listing is for one piece. Add the quantity you need to the cart.
- ModMyMods black hex button head screws come in M3 x 4 and 6 mm and in M4 x 8, 12, 25 and 40 mm.
In the box
- 1x ModMyMods M4 x 25 Hex Button Head Screw, Black
