Details

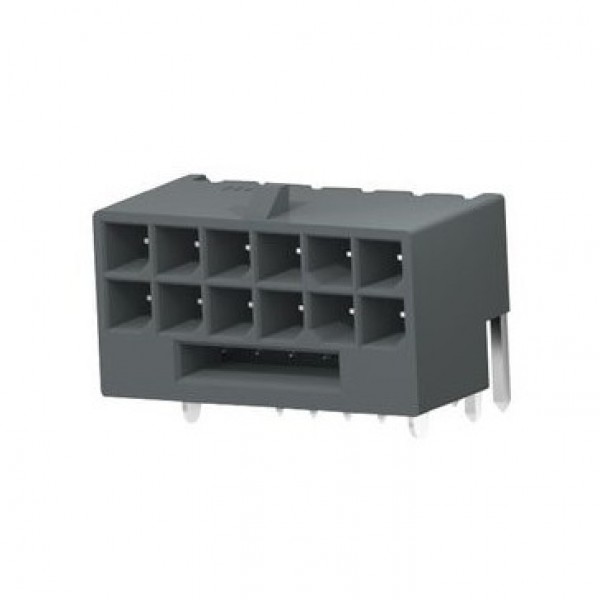

The ModMyMods ATX 3.1 PCIe Gen5 12V-2x6 H++ 16-Pin Right-Angle GPU Power Connector Header is a 16-pin 12V-2x6 (H++) power header with a right-angle (90°) layout, the socket a graphics card uses for its 16-pin power cable. It is a replacement part for GPU repair and a building block for custom power boards and modding projects, for example to replace a damaged power socket.
Properties
- Type
- 12V-2x6 (H++) 16-pin GPU power header, right-angle
- Standard
- ATX 3.1, PCIe Gen 5
- Positions
- 12 power + 4 sense
- Power
- Graphics cards up to 675W
- Pieces in the pack
- 1
For GPU repair and modding
The header mounts on a circuit board and takes a 16-pin 12V-2x6 or 12VHPWR power cable. Use it to replace a damaged power socket on a graphics card, or in custom cables, adapters and modding projects that need a 16-pin GPU power socket.
Right-angle layout
The 90° orientation makes the cable plug in parallel to the board. That helps with cable routing in tight cases and reduces stress on the power connection.
ATX 3.1 and PCIe Gen 5
The 12V-2x6 (H++) connector is the 16-pin GPU power connector of ATX 3.1 and PCIe Gen 5, with 12 power positions and 4 sense positions. The updated design improves contact reliability, is built for graphics cards of up to 675W and stays compatible with the 12VHPWR cables used on RTX 40-series graphics cards.
Technical data
| Model | CO1041 |
| Type | 12V-2x6 (H++) 16-pin power header, right-angle |
| Standard | ATX 3.1, PCIe Gen 5 |
| Positions | 16 (12 power, 4 sense) |
| Power | Graphics cards up to 675W |
| Compatible with | 12VHPWR and 12V-2x6 cables |
Notes
- Replacing a power header on a graphics card means soldering on the card. Only do it if you have the tools and experience for board-level repair.
- Push the cable plug fully into the header until it latches. A 12V-2x6 plug that is not fully seated can overheat.
In the box
- 1x ModMyMods ATX 3.1 PCIe Gen5 12V-2x6 H++ 16-Pin Right-Angle GPU Power Connector Header
