ModMyMods ATX 3.1 PCIe Gen 5 H++ 12V-2X6 MicroFit 3.0 16-Pin Straight Connector Set - Pins Included (TD422-S)

The ModMyMods ATX 3.1 PCIe Gen 5 H++ 12V-2X6 MicroFit 3.0 16-Pin Straight Connector Set - Pins Included is a complete kit for building a straight 16-pin 12V-2x6 graphics card power plug: a black MicroFit 3.0 style connector housing and loose terminal pins for the 12 power and 4 sense positions. Use it to build custom GPU power cables and adapters, or to repair a damaged GPU power lead.

Properties

Type

12V-2x6 (H++) 16-pin connector set, straight

Standard

ATX 3.1, PCIe Gen 5

Positions

12 power + 4 sense

Power

Graphics cards up to 675W

Terminal pins

Included, loose (crimp on)

Color

Black

Pieces in the pack

1 set

Build or repair a GPU power cable

Crimp the included terminal pins onto your wires and push them into the housing. The set makes a straight plug for the 16-pin power socket of a modern graphics card, for custom power supply cables, adapters or the repair of a damaged lead.

ATX 3.1 and PCIe Gen 5

The 12V-2x6 (H++) connector is the 16-pin GPU power connector of ATX 3.1 and PCIe Gen 5, with 12 power positions and a row of 4 small sense positions. The updated design improves contact reliability, is built for graphics cards of up to 675W and stays compatible with 12VHPWR sockets and cables, as used on RTX 40-series graphics cards.

Technical data

Notes

• The pins come loose and are crimped on by you; they are not pre-installed in the housing.
• Push the finished plug fully into the graphics card socket until it latches. A 12V-2x6 plug that is not fully seated can overheat.
• To release a pin from the housing, use a pin extractor such as the ModMyMods ATX3.0 / 12VHPWR Pin Extractor Tool.
• For a plug with a 90° cover, see the angled sets MOD-0387 (black) and MOD-0386 (white).

In the box

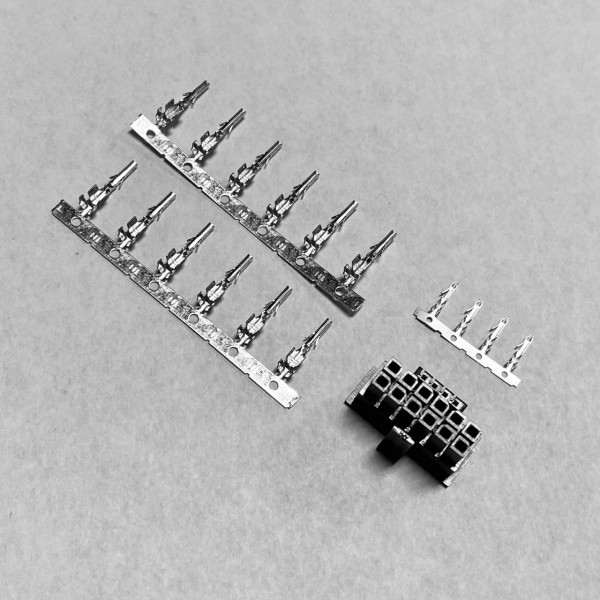

• 1x 12V-2x6 16-pin connector housing
• 12x Power terminal pin
• 4x Sense terminal pin
