Details

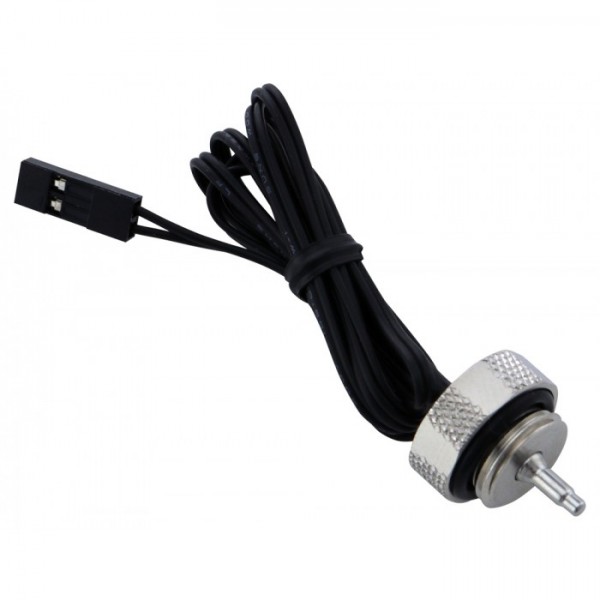

The Koolance SEN-AP008G is a coolant temperature sensor plug: a 10K Ohm thermistor in a G1/4" BSPP plug that screws into any free G1/4" port of the loop and reads the coolant temperature directly. It works with Koolance multi-sensor systems that use 10K Ohm sensors, and comes with a 76 cm (30") cable.
Properties
- Type
- Coolant temperature sensor plug, 10K Ohm thermistor
- Thread
- G1/4" BSPP (parallel)
- Cable length
- 76 cm (30")
- Max. temperature
- 120°C (248°F)
- Wetted materials
- Nickel-plated brass, stainless steel, EPDM
- Compatibility
- Koolance products with 10K Ohm sensors
Coolant temperature right in the loop
The thermistor tip reaches into the coolant, so the sensor measures the liquid itself rather than the surface of a part. Screw it into any free G1/4" port on a block, radiator, reservoir or fitting body; an O-ring under the knurled head seals the thread.
For Koolance multi-sensor systems
Koolance makes this sensor for its own controllers and displays that use 10K Ohm @25°C sensors, first introduced in 2011. Older Koolance products use 50K Ohm sensors and do not read this sensor correctly. In its stock form the sensor plugs into Koolance multi-sensor systems; using it with other temperature inputs needs a modification.
Accurate thermistor
Koolance publishes the full resistance-temperature table for the SEN-AP008G from -40°C up. The thermistor has a resistance of 10 kOhm ±1% at 25°C and a B25/85 value of 3,435 K ±1%.
Technical data
| Model | SEN-AP008G |
| Sensor | NTC thermistor, 10 kOhm ±1% at 25°C |
| B value (B25/85) | 3,435 K ±1% |
| Thread | G1/4" BSPP (parallel) |
| Head | 17.0 mm hex, 17.8 mm across |
| Overall height | 18.5 mm |
| Cable length | 760 mm (30") |
| Connector | 2-pin housing (Alex 6501-02) |
| Max. temperature tolerance | 120°C (248°F) |
| Wetted materials | Nickel-plated brass, stainless steel, EPDM |
| Weight | 0.02 kg (0.04 lb) |
Notes
- Any modification to this sensor voids its warranty and makes it non-returnable.
- Koolance recommends not using aluminum together with bare (unplated) copper or brass in the same loop, and not using silver together with nickel.
In the box
- 1x Koolance SEN-AP008G coolant temperature sensor plug
Koolance's dimension drawing and resistance table are both PDFs.
