Details

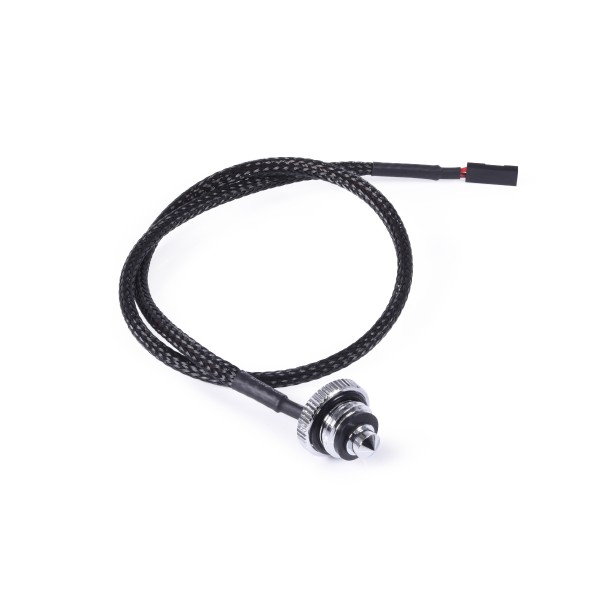

The Alphacool Eiszapfen Temperature Sensor Flat Fitting G1/4 - Chrome is a simple, flat water temperature sensor with a G1/4 thread for G1/4 female connectors. It carries an NTC 10 kOhm thermistor on a 40 cm cable with a 2-Pin connector, and one sensor comes per pack.
Properties
- Thread
- G1/4, 5 mm thread length
- Thermistor
- NTC 10 kOhm, -40 to 125 °C
- Cable
- 40 cm, 2-Pin connector
- Size (H x D)
- 17 mm x 18 mm
- Material and color
- Brass, chrome
- Pieces in the pack
- 1
Integration made easy
The sensor is very compact, and due to its G1/4 external thread it can be easily integrated into any water loop or circuit. It is simply screwed into the corresponding G1/4 connection, at any position in the loop. The screw-in depth is small, so Alphacool calls it compatible with all Alphacool products that have a free G1/4 connection.
Sensor
A classic NTC 10 kOhm thermistor is used as the sensor, and the readable temperature range is between -40 and 125 °C. The cable is 40 cm long and leads into a typical 2-pin connector.
What it needs
The sensor only measures, so the connector has to go somewhere that reads it. Many mainboards now offer direct connection options for such sensors: please check the manual of your mainboard. Of course there are also several external controllers that offer a connector for it, such as a fan controller with a sensor input.
Design
Alphacool kept the design very simple, so that the sensor can be installed almost invisible in the system.
Compatibility
G1/4 female connectors.
Technical data
| H x D | 17 mm x 18 mm |
| Material | brass |
| Color | chrome |
| Cable length | 40 cm |
| Connection | 2-Pin |
| Thermistor | NTC 10 kOhm |
| Thread | G1/4 IT |
| Thread length | 5 mm |
| Total screw-in depth | 13 mm |
In the box
- Alphacool Eiszapfen temperature sensor flat G1/4 - chrome
Alphacool's data sheet for this sensor lists the same technical data.
