Details

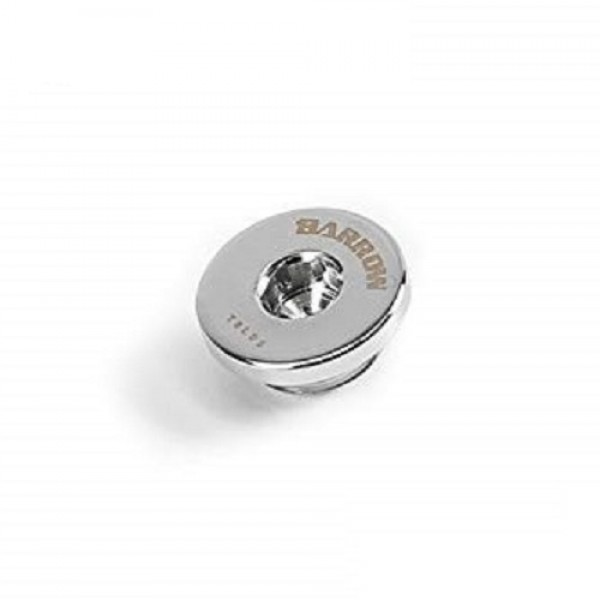

The Barrow TBLDS is an ultra-thin G1/4" stop plug with an inner hex. Its head is only 2.5 mm tall, so it closes an unused G1/4" port with almost nothing standing out. The head carries the Barrow logo and is finished in shiny silver.
Properties
- Type
- Stop plug, low profile
- Thread
- G1/4" male
- Head
- 18 mm diameter, 2.5 mm tall
- Tool
- 6 mm hex key
- Seal
- O-ring
- Material
- H59 brass, electroplated
- Color
- Silver
- Pieces in the pack
- 1
Close unused ports flat
Reservoirs, blocks, radiators and distribution plates often have more G1/4" ports than a loop needs. The TBLDS closes one of them with a head just 2.5 mm tall, so it sits almost flush and does not catch the eye or get in the way of nearby parts.
Tightened with a hex key
Instead of a knurled grip the plug has a 6 mm hex socket in the head. Barrow says to tighten it with a 6 mm hex key, which also reaches plugs in tight corners where fingers do not fit.
Sealed by an O-ring
An O-ring under the head seals the plug against the port face.
H59 brass with a double-protected finish
Barrow says it uses high-quality H59 brass for the plug and protects the surface with a double electroplating process, which it says gives a fine texture that is solid and durable.
Technical data
| Model | TBLDS |
| Type | Low profile stop plug, inner hex |
| Thread | G1/4" male |
| Head diameter | 18 mm |
| Head height | 2.5 mm |
| Thread length | 5 mm |
| Hex socket | 6 mm |
| Material | H59 brass |
| Color | Silver |
Notes
- A 6 mm hex key is not included.
- Barrow sells this plug in black, white, shiny silver and gold. This listing is the shiny silver version.
- Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.
In the box
- 1x Barrow G1/4" Ultra Low Profile Hex Stop / Plug Fitting - Silver
