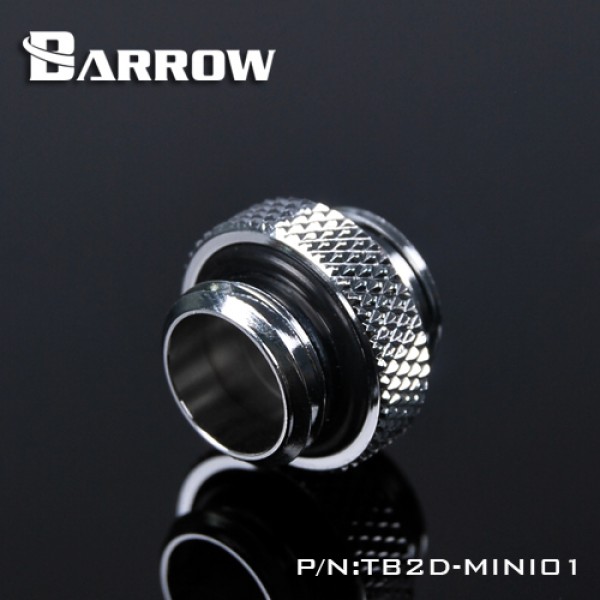

Barrow G1/4" 5mm Male to Male Adapter Fitting - Silver (TB2D-MINI01-Silver)

The Barrow TB2D-MINI01 is a short G1/4" male to G1/4" male extender, the mini version of Barrow's dual male connector. It joins two female G1/4" ports or fittings with as little gap as possible, for example a reservoir screwed straight onto a pump top. It is finished in shiny silver.

Properties

Type

Extender, male to male (mini)

Thread

G1/4" male on both ends

Size

18 mm diameter, 15 mm long overall

Material

H59 brass, electroplated

Seal

O-ring on each end

Color

Silver

Pieces in the pack

1

Join two female ports

Both ends carry a G1/4" male thread, so the TB2D-MINI01 screws into two female G1/4" ports or fittings and connects them without tubing. Typical uses are a reservoir screwed straight onto a pump top, two blocks or radiators joined port to port, or a female fitting that needs to become male.

Sealed on both sides

Each end has its own O-ring that seals against the port face, so both connections are sealed when the extender is tightened.

H59 brass with a double-protected finish

Barrow says it uses high-quality H59 brass for the body and protects the surface with a double electroplating process, which it says gives a fine texture that is solid and durable.

Non-slip diamond knurling

The short body between the threads has a diamond knurl. Barrow says it gives a sure grip when you screw the extender in by hand.

Two lengths

Barrow makes this dual male connector in two lengths: the standard TB2D-02 with a 10 mm body (20 mm overall) and this TB2D-MINI01 with a 5 mm body (15 mm overall) for the tightest spaces.

Technical data

Notes

• Barrow sells this extender in black, white, shiny silver and gold. This listing is the shiny silver version.
• Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.

In the box

• 1x Barrow G1/4" 5mm Male to Male Adapter Fitting - Silver
