Details
The Barrow TCDZS-V1 is a pass-through fitting: it mounts in a hole in a panel and gives you a G1/4" female port on both sides. Use it to run coolant lines through a case wall to an external radiator, or as a fill port in the top of the case. It is machined from H59 brass and finished in shiny silver.
Properties
- Type
- Pass-through (bulkhead) fitting, female to female
- Thread
- G1/4" female on both sides
- Diameter
- 24.8 mm
- Height
- 16 mm
- Material
- H59 brass, electroplated
- Color
- Silver
- Pieces in the pack
- 1
Through a panel

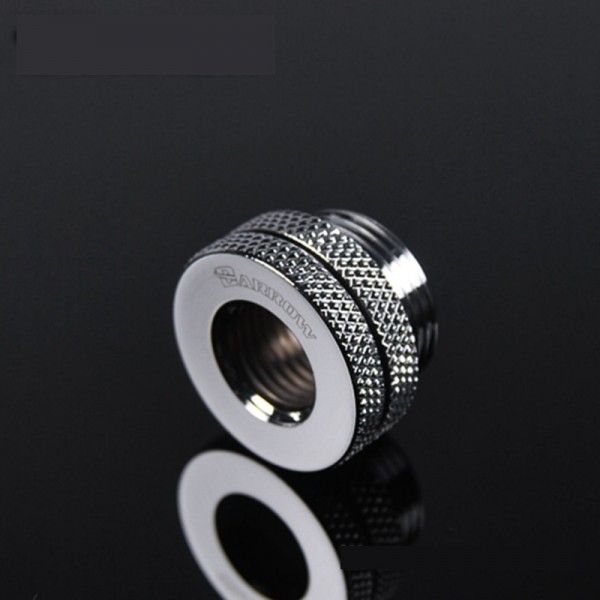

The fitting has two parts: a body with a knurled flange and a threaded neck, and a knurled lock ring that screws onto the neck. Push the neck through a hole in the panel and tighten the lock ring from the other side, so the panel is clamped between flange and ring. Barrow says it suits panels of different thickness.
A port on each side
A G1/4" female thread runs through the whole body, so each side takes a standard fitting. That makes it useful for running tubing out of the case to an external radiator, and as a fill port: screw a fitting or a plug into the outside and fill the loop from above.
Brass with a double-protected finish
Barrow machines the body from H59 brass and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.
Non-slip diamond knurling
The flange and the lock ring both carry a diamond knurl pattern. Barrow says it gives a sure grip when you tighten the ring by hand.
Standard G1/4" connections
Both ports use the standard G1/4" thread of PC water cooling, so the fitting works with fittings, plugs and quick disconnects from other makers as well as Barrow's own.
Technical data
| Model | TCDZS-V1 |
| Type | Pass-through fitting, female to female |
| Threads | G1/4" female | G1/4" female |
| Flange diameter | 24.8 mm |
| Total height | 16 mm |
| Flange height | 4 mm |
| Lock ring height | 4 mm |
| Material | H59 brass |
| Color | Silver |
Notes
- Check the hole size against the part before you drill.
- Barrow sells this fitting in black, white, shiny silver and gold. This listing is the shiny silver version.
- Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.
In the box
- 1x Barrow G1/4" Threaded Female to Female Pass-Through Fitting - Silver
